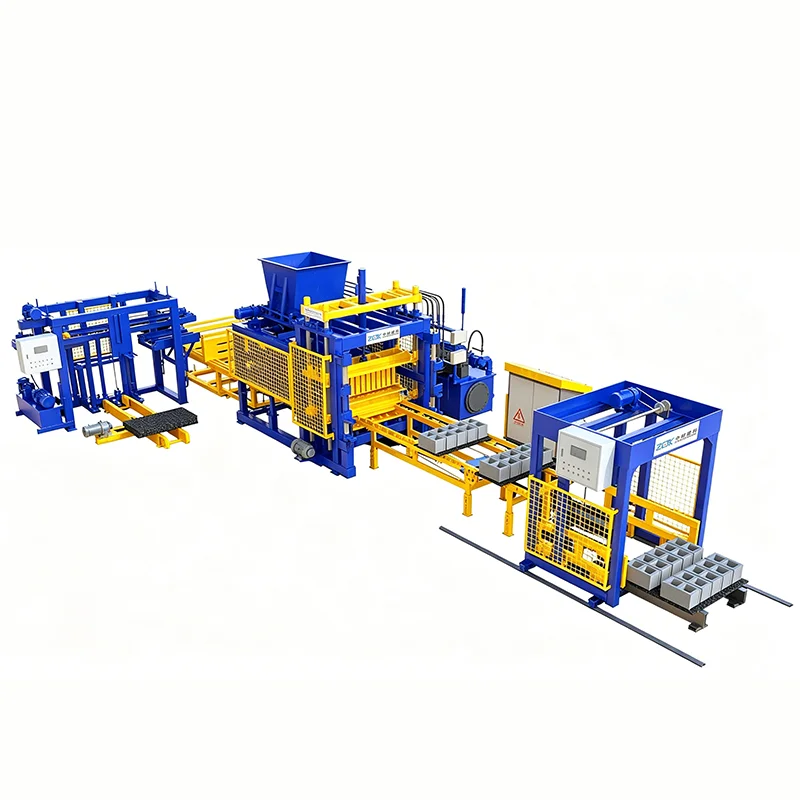

QTY5-15
HS

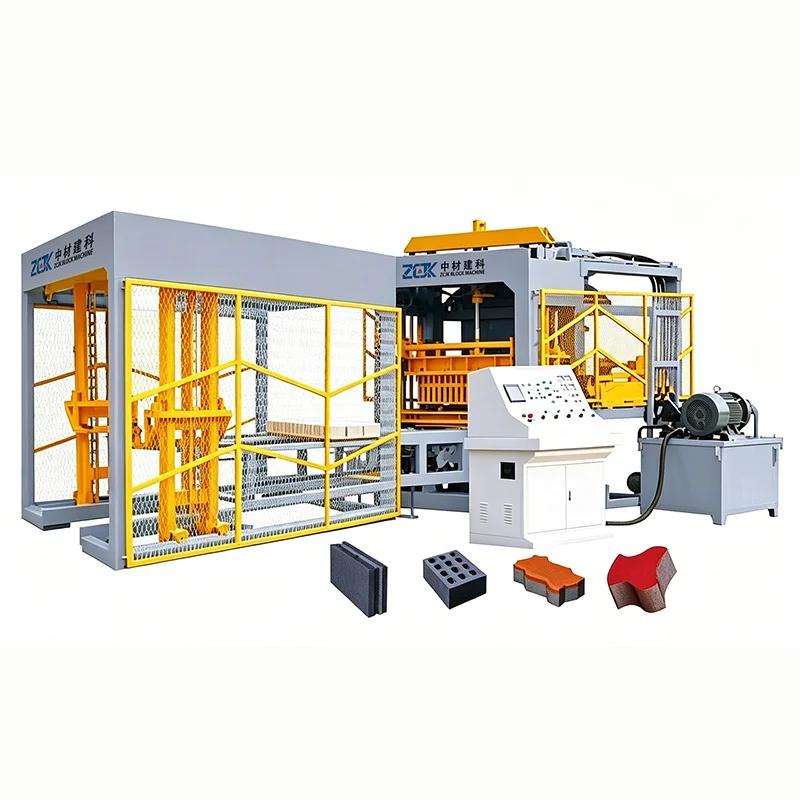

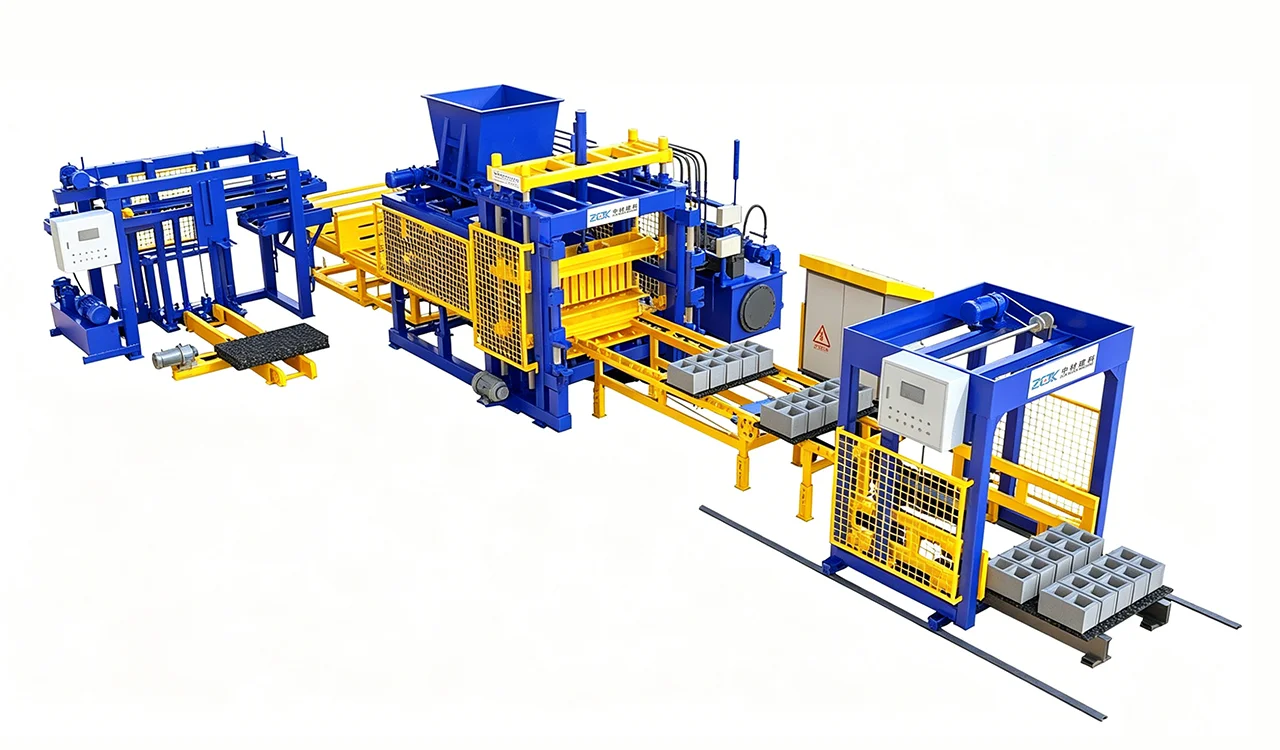

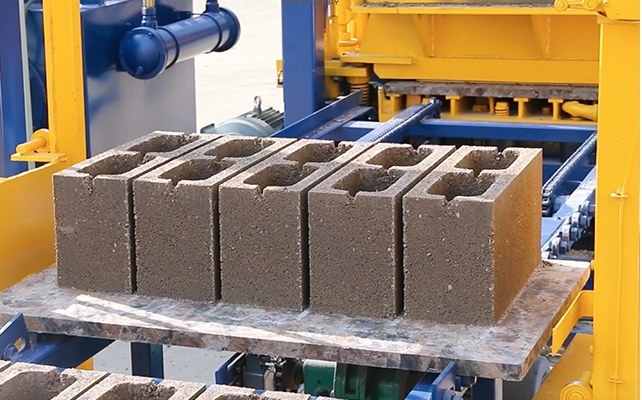

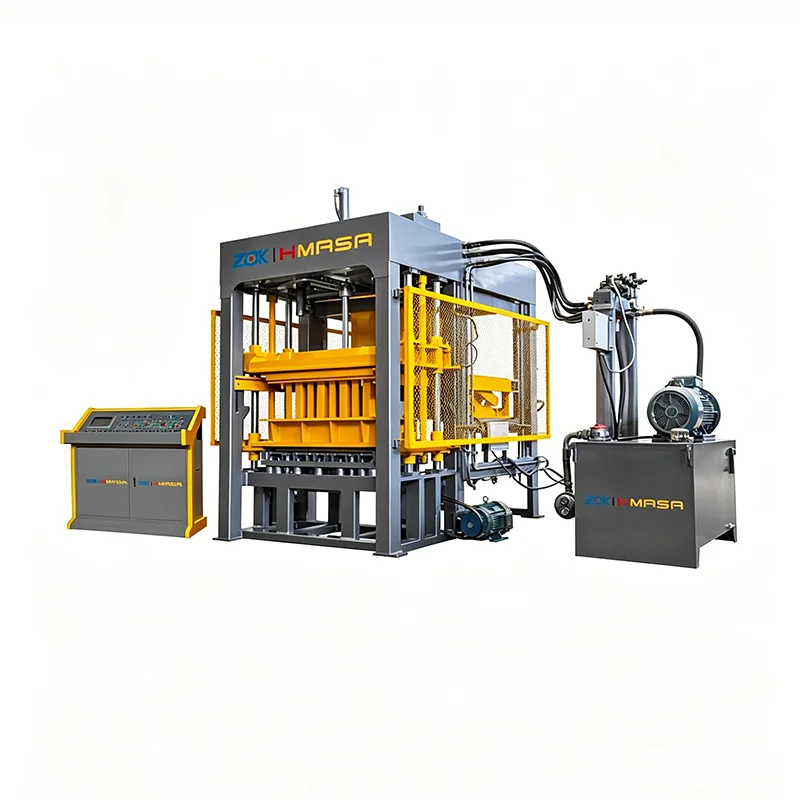

The QTY5-15 is one of the most popular choices for medium-sized concrete block production. It offers the ideal balance between production capacity, automation, and investment cost, making it suitable for both expanding brick factories and new commercial block plants.
Produces up to 11,500 hollow blocks per 8-hour shift
Fully automatic PLC control reduces labor requirements
Hydraulic vibration system ensures high-density, high-strength blocks
One machine can produce hollow blocks, solid bricks, pavers, and interlocking blocks by changing moulds
Stable performance for continuous commercial production
Lower investment cost compared with larger automatic production lines
For manufacturers looking to increase output, improve product quality, and achieve faster return on investment, the QTY5-15 provides a practical and reliable solution.
Product Type | Brick Size (mm) | Quantity Per Pallet | Molding Cycle | Production Capacity (10 Hours) |
|---|---|---|---|---|
Standard Brick | 240×115×51 | 34 pcs | 18 s | 54,000 pcs |
Multi-hole Brick | 240×115×90 | 20 pcs | 18 s | 25,000 pcs |
Hollow Block | 390×190×190 | 5 pcs | 20 s | 2,100 pcs |
Colored Paver | 200×100×60 | 20 pcs | 24 s | 24,000 pcs |
Curbstone | 900×300×120 | 1 pc | 60 s | 600 pcs |
Production capacity directly determines a factory's ability to fulfill orders and support project delivery schedules.

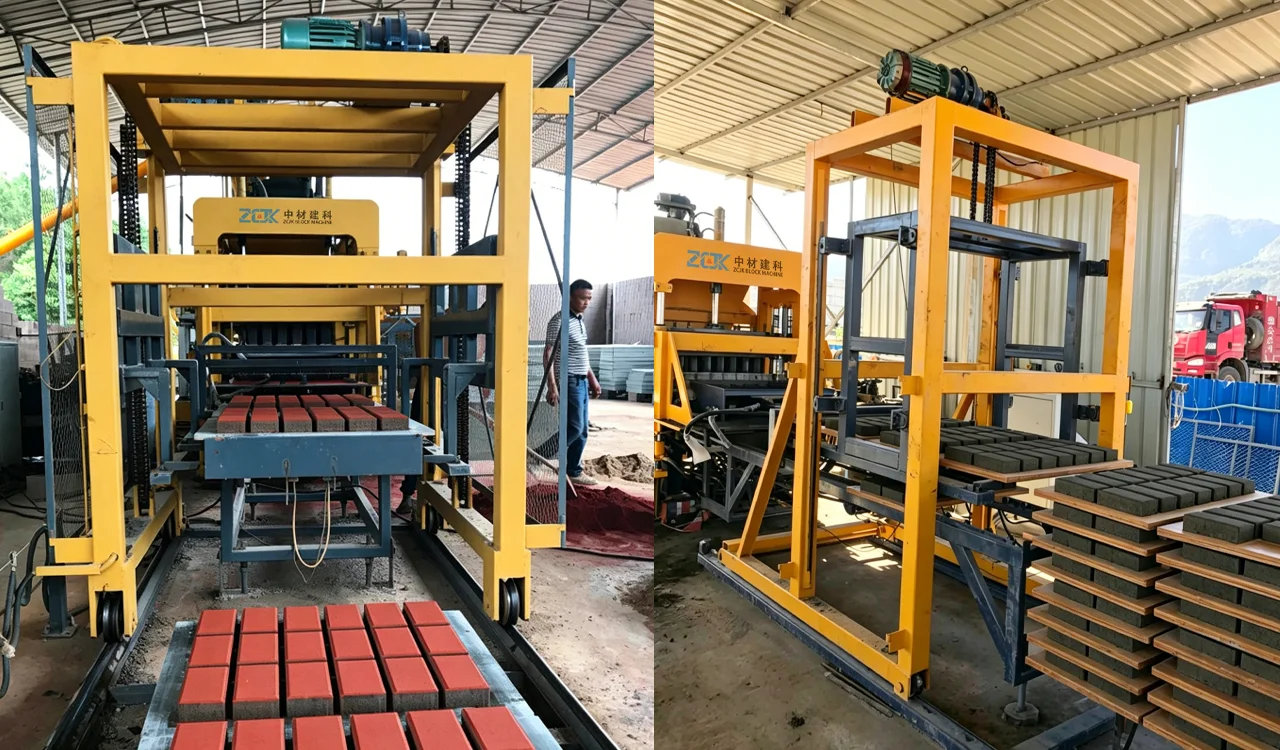

The QTY5-15 adopts a hydraulic vibration forming system and optimized mould structure to ensure stable production cycles and consistent product quality.
The machine is suitable for residential housing projects, municipal construction, commercial developments, road paving, and infrastructure projects that require a continuous supply of blocks.
Item | Specification |
|---|---|
Model | QTY5-15 |
Total Power | 27.9 KW |
Vibration Motor | 5.5 KW × 2 |
Material Feeder Motor | 2.2 KW |
Belt Conveyor Motor | 2.2 KW |
Brick Discharging Motor | 1.5 KW |
Hydraulic Station Power | 11 KW |
Molding Cycle | 15-23 Seconds |
Vibration Frequency | 3800-4500 r/min |
Excitation Force | 72 KN |
Amplitude | 15 mm |
Machine Size | 2180×1660×2560 mm |
Total Weight | 3.68 T |
Pallet Size | 1120×580×(20-35) mm |
Oil Pump | PV2R2-65-FR |
Rated Pressure | 8 MPa |
Hopper Capacity | 500 L |
Maximum Product Height | 220 mm |
Belt Conveyor Size | 6 m × 0.5 m |
The hydraulic system and vibration technology work together to improve block density, dimensional accuracy, and overall product consistency.
The machine frame is manufactured using high-strength steel and precision welding technology. The rigid structure helps absorb vibration during production while maintaining dimensional stability over long-term operation.
A stronger machine structure contributes to stable production quality and longer service life.
The hydraulic station provides stable pressure during moulding and demoulding processes. Consistent hydraulic performance helps improve block compaction and reduces production interruptions.
The hydraulic system is designed to support continuous operation while maintaining reliable product quality.

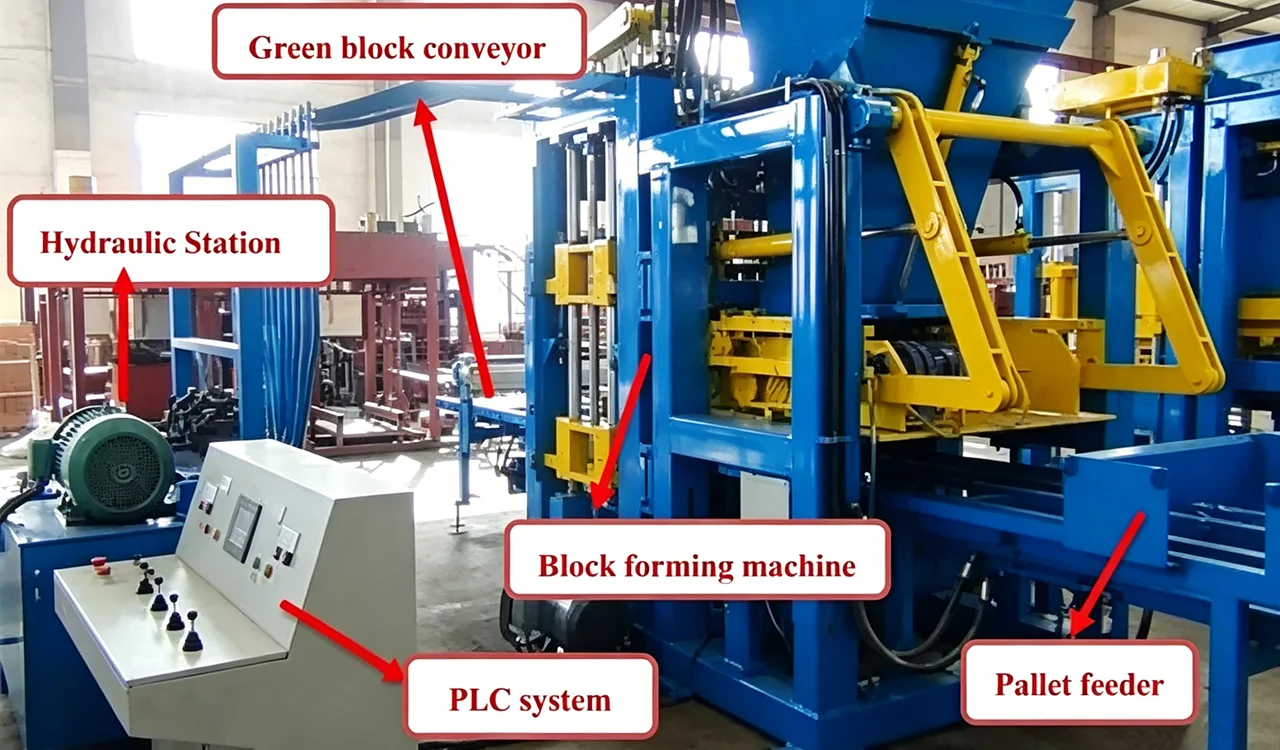

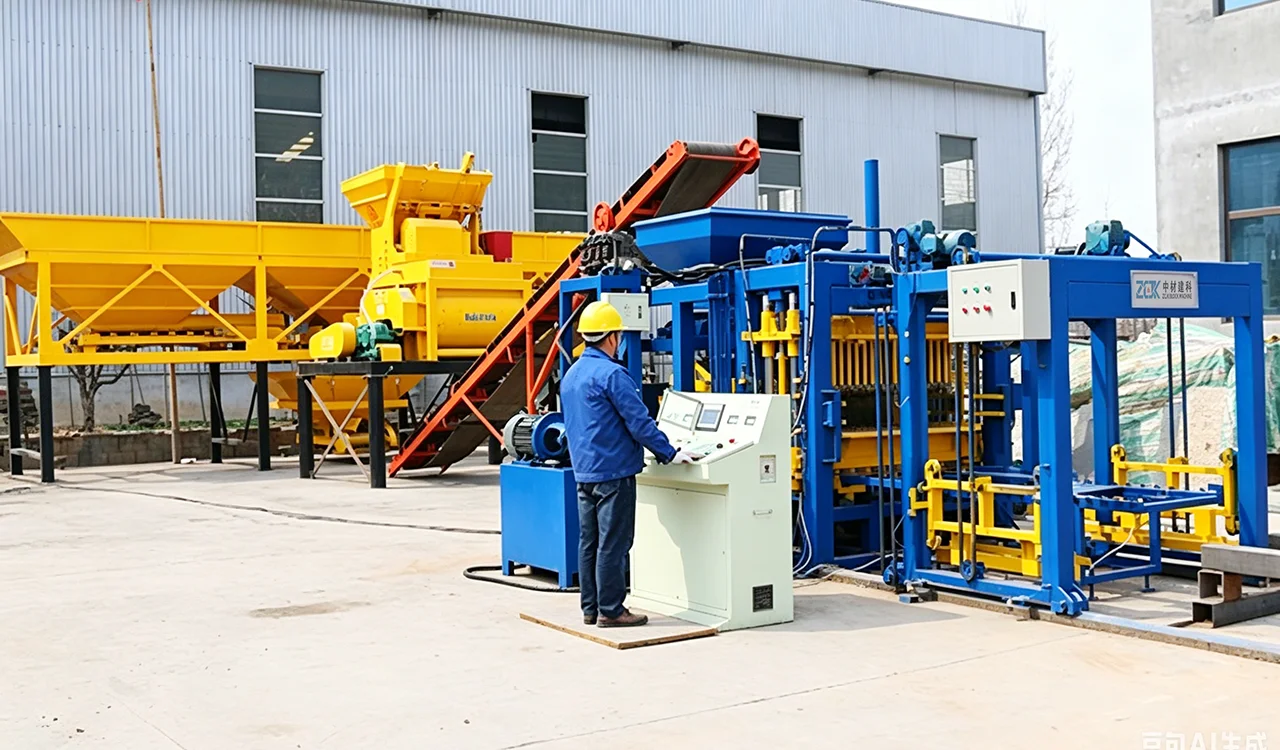

The PLC control system automatically manages material feeding, moulding, vibration, pallet conveying, and brick discharging.
Operators can easily monitor production parameters through the control interface, helping reduce manual intervention and improve production consistency.

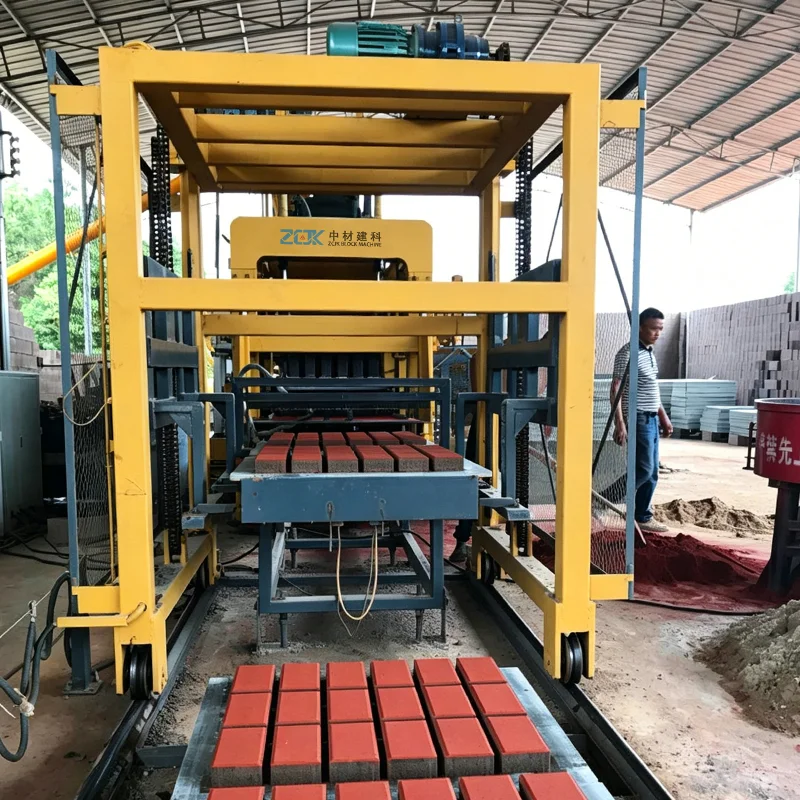

Dual vibration motors generate powerful vibration force to improve material distribution and compaction.
Higher compaction results in concrete blocks with improved density, better compressive strength, and more uniform dimensions.
The mould adopts wear-resistant materials and precision machining technology.
Different moulds can be installed to manufacture hollow blocks, solid bricks, pavers, curbstones, and customized concrete products while maintaining consistent product quality.

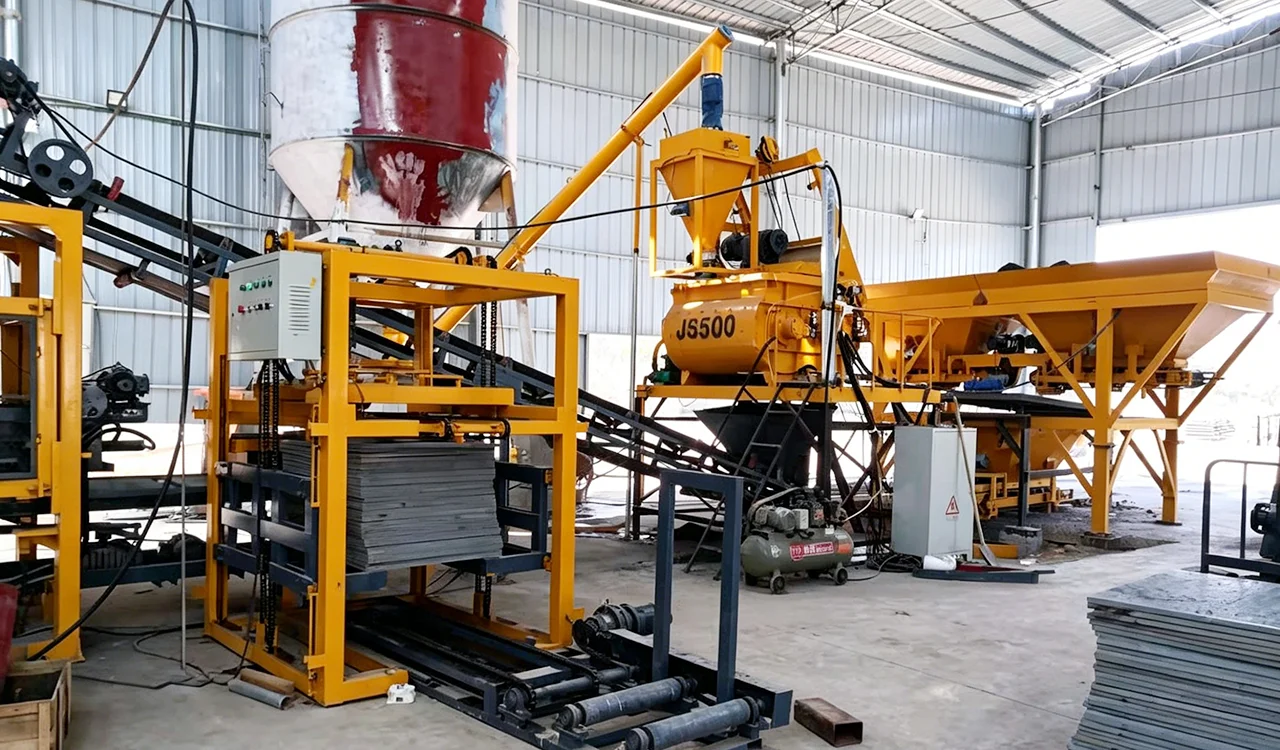

The automatic feeding system distributes materials evenly across the mould surface, helping improve block consistency and reduce raw material waste.
Uniform feeding contributes directly to higher finished-product quality.
The machine surface is treated with an industrial-grade anti-corrosion coating process.
This improves resistance to humidity, dust, and harsh outdoor environments while helping maintain equipment appearance and service life.

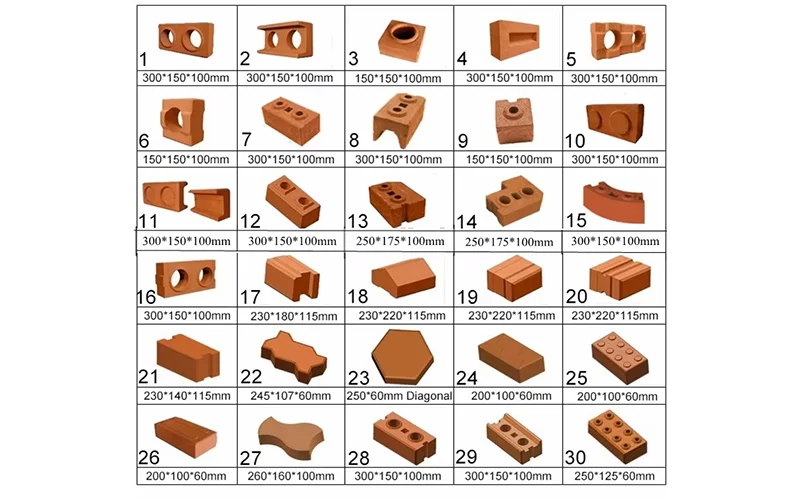

By replacing moulds, the QTY5-15 can produce:
Hollow Blocks
Solid Bricks
Interlocking Bricks
Paver Blocks
Curbstones
Grass Planting Blocks
Customized Concrete Products
One machine can support multiple construction applications, allowing manufacturers to respond to changing market requirements efficiently.
The QTY5-15 can utilize:
Cement
Sand
Stone Dust
Gravel
Fly Ash
Slag
Construction Waste
Industrial By-products
This flexibility allows manufacturers to optimize production costs while maintaining required block strength and quality.
Material | Ratio |
Cement | 8%-10% |
Sand | 30%-40% |
Stone Chips | 50%-60% |
Alternative formulations can be recommended according to local raw material conditions.

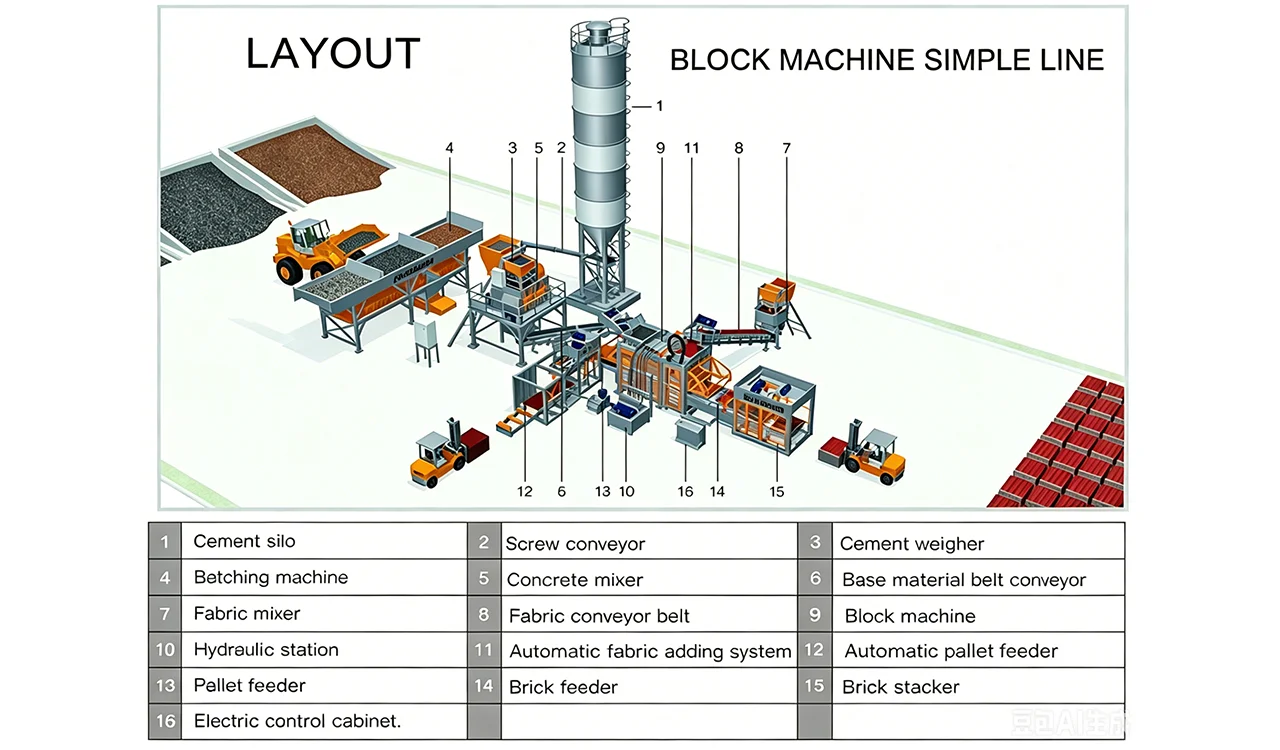

A standard QTY5-15 production line generally requires:

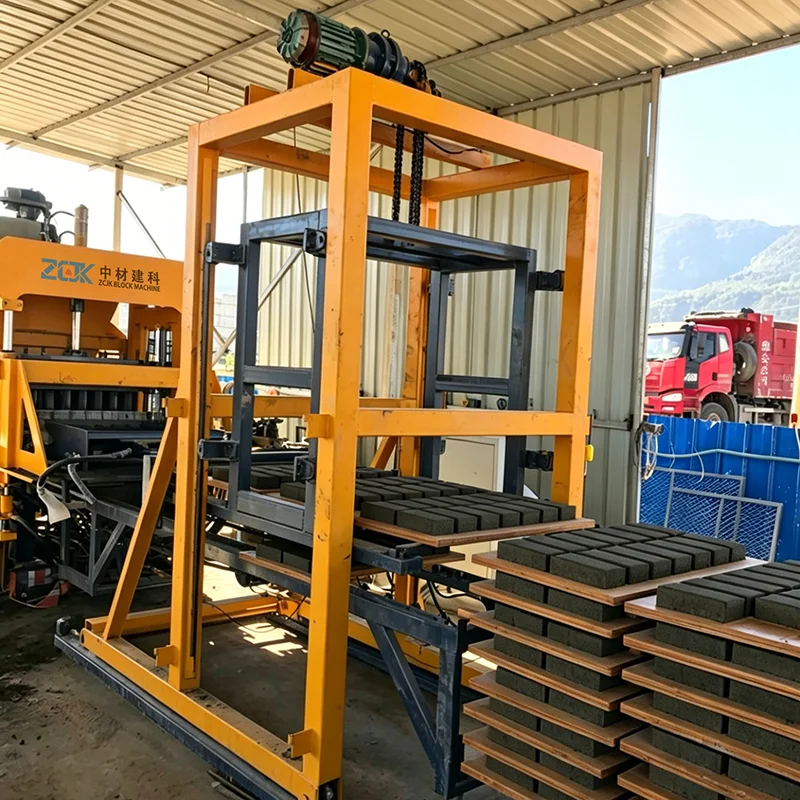

Position | Labor Required |
Material Mixing | 1 |
Pallet Feeding | 1 |
Machine Operator | 1 |
Forklift Driver | 1 |
Maintenance Technician | 1 |
Block Stacking | 2-3 |
Total labor requirement is typically 7-8 workers, depending on factory layout and automation level.
After production, blocks should remain on pallets for approximately 18-24 hours before handling.
For optimal strength development:
Keep blocks moist during the first 3-5 days.
Spray water regularly.
Continue curing for 10-15 days.
For customers using curing rooms, finished products can be obtained in a significantly shorter time.
Proper curing helps improve compressive strength, durability, and product consistency.
The QTY5-15 is widely used in:
Residential Construction
Commercial Building Projects
Municipal Engineering
Road Paving Projects
Landscaping Projects
Infrastructure Development
Its production flexibility allows manufacturers to supply a wide range of concrete products for different market sectors.
Professional technical consultation
Factory visit support
Equipment selection guidance
Factory planning assistance
Manufacturing progress updates
Quality inspection
Equipment testing before shipment
On-time delivery
12-month warranty
Free spare parts for warranty-covered issues
Installation guidance
Operator training
Overseas engineer support
Lifetime technical support

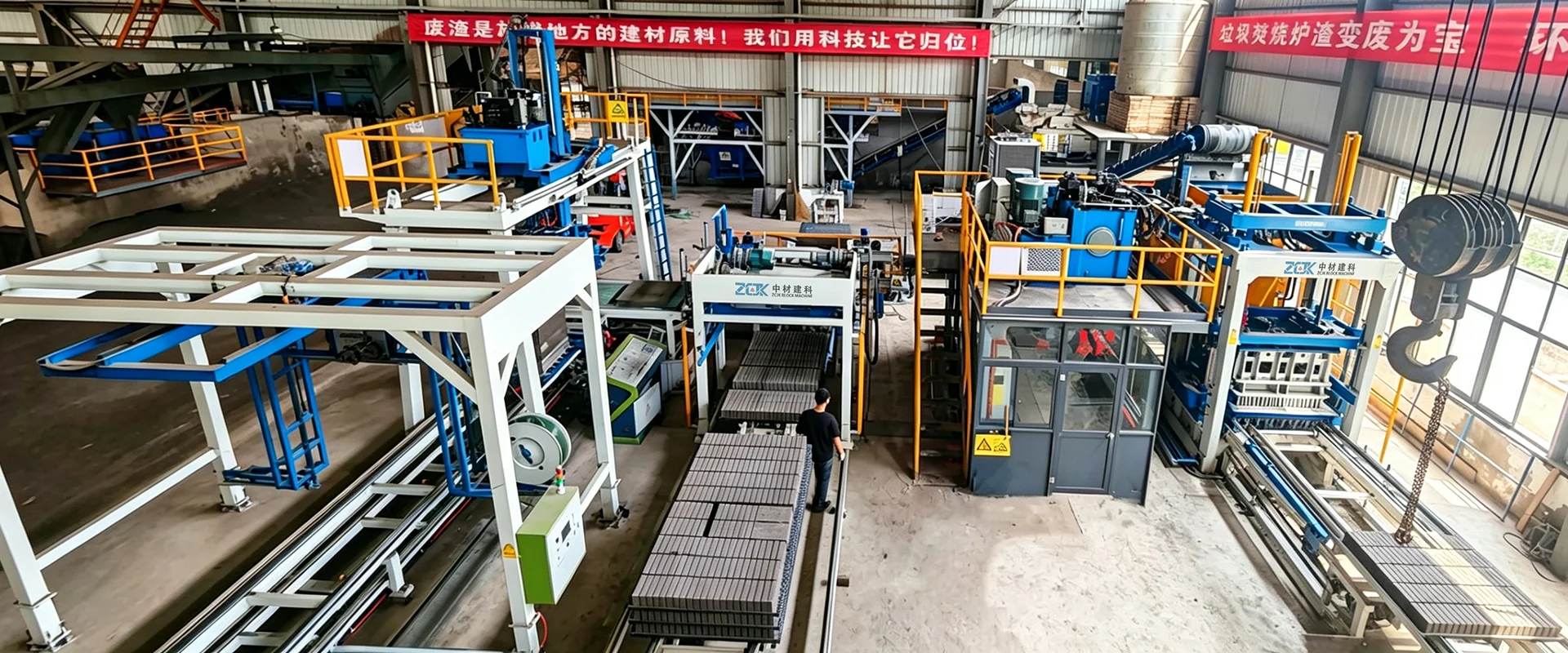

HS Machinery specializes in concrete block production equipment and complete block factory solutions.
From equipment selection and factory planning to installation and technical support, HS provides comprehensive assistance to help customers establish efficient and reliable block production operations.
