QTY10-15
HS
High-Capacity Block Production Solution for Commercial Construction and Infrastructure Projects

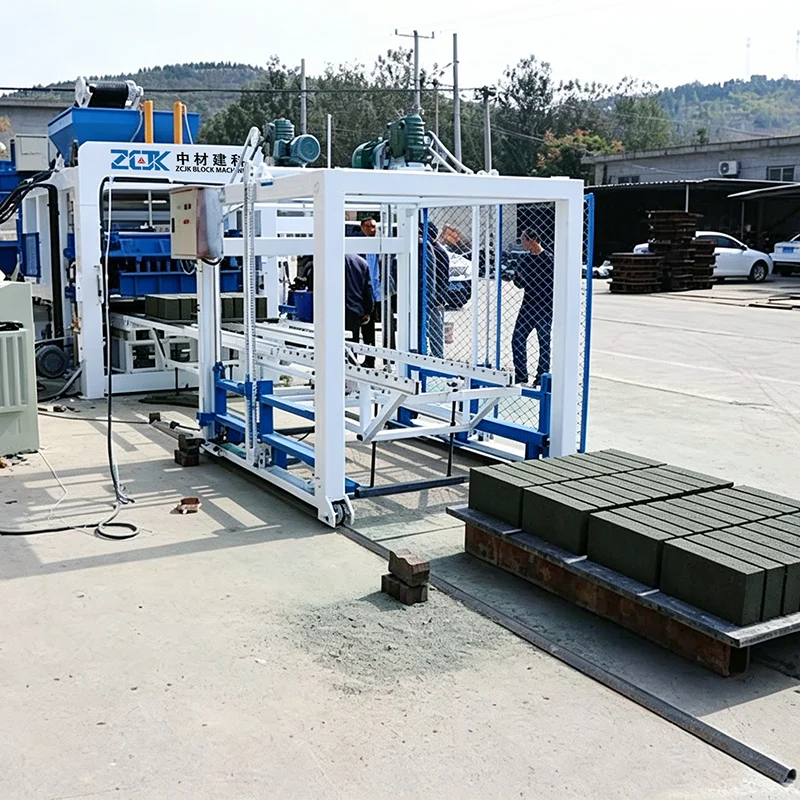

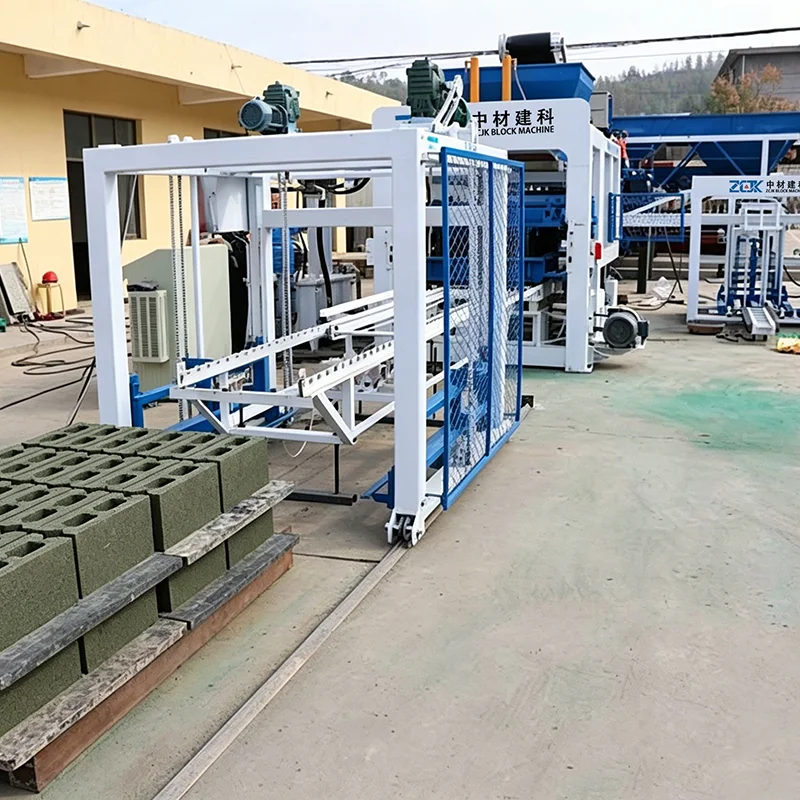

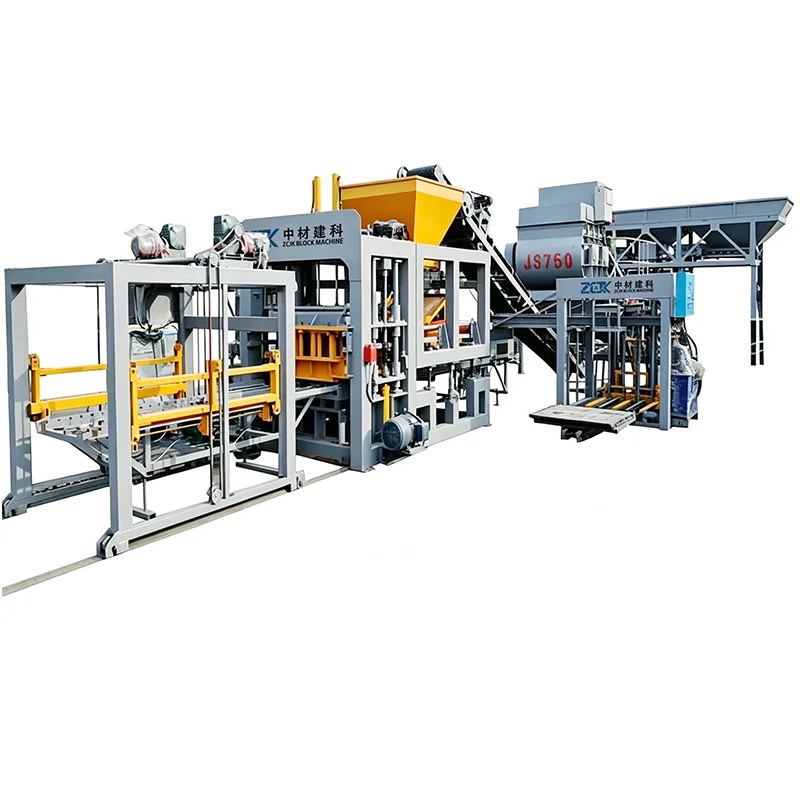

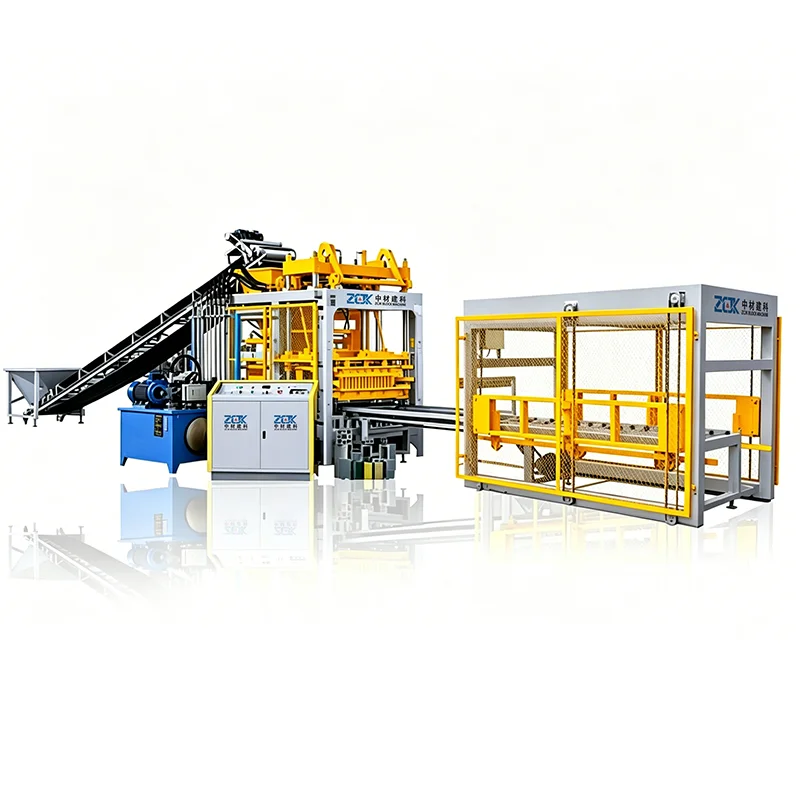

The HS QTY10-15 Fully Automatic Block Making Machine is designed for manufacturers requiring stable, large-scale production of concrete blocks, paving bricks, curbstones, and other concrete products.
Equipped with a fully automatic PLC control system, hydraulic vibration technology, and a high-efficiency material feeding system, the QTY10-15 delivers consistent block quality, reliable operation, and high production efficiency. It is suitable for block manufacturers, construction material suppliers, government infrastructure projects, and commercial building developments that require continuous production and dependable product quality.
Production Capacity
| Block Type | Image | Size (mm) L*W*H | Molding Cycle | QTY (pcs)/Mould | Qty(pcs)/hour | Qty(pcs)/8hr |
| Hollow Block |  | 400x200x200 | 15-20 | 10 | 1800-2400 | 14400-19200 |
| Hollow Block |  | 400x150x200 | 15-20 | 14 | 2520-3360 | 20160-26880 |
Solid Block |  | 240x110x70 | 15-17 | 40 | 8470-9 600 | 67760-76800 |
| Paver |  | 225x112.5x60 | 15-25 | 16 | 3456-5760 | 27648-46080 |
| Paver |  | 200x100x60 | 15-25 | 40 | 5760-9600 | 46080-76800 |
Stable Output for Large-Scale Block Manufacturing
The QTY10-15 adopts a large moulding area and high-performance vibration system to ensure efficient production cycles while maintaining block density and dimensional accuracy.
The production line is suitable for residential construction, industrial developments, municipal projects, road paving, and public infrastructure works requiring a continuous supply of concrete products.
Technical Specifications
| Item | Specification |
| Pallet Size | 1150 × 900 mm |
| Forming Cycle | 15-25 Seconds |
| Rated Pressure | 21 MPa |
| Vibration Frequency | 2800-4500 r/min |
| Installed Power | 63.5 KW |
| Machine Weight | 11,000 KG |
| Control System | PLC Automatic Control |
| Forming Method | Hydraulic + Vibration |

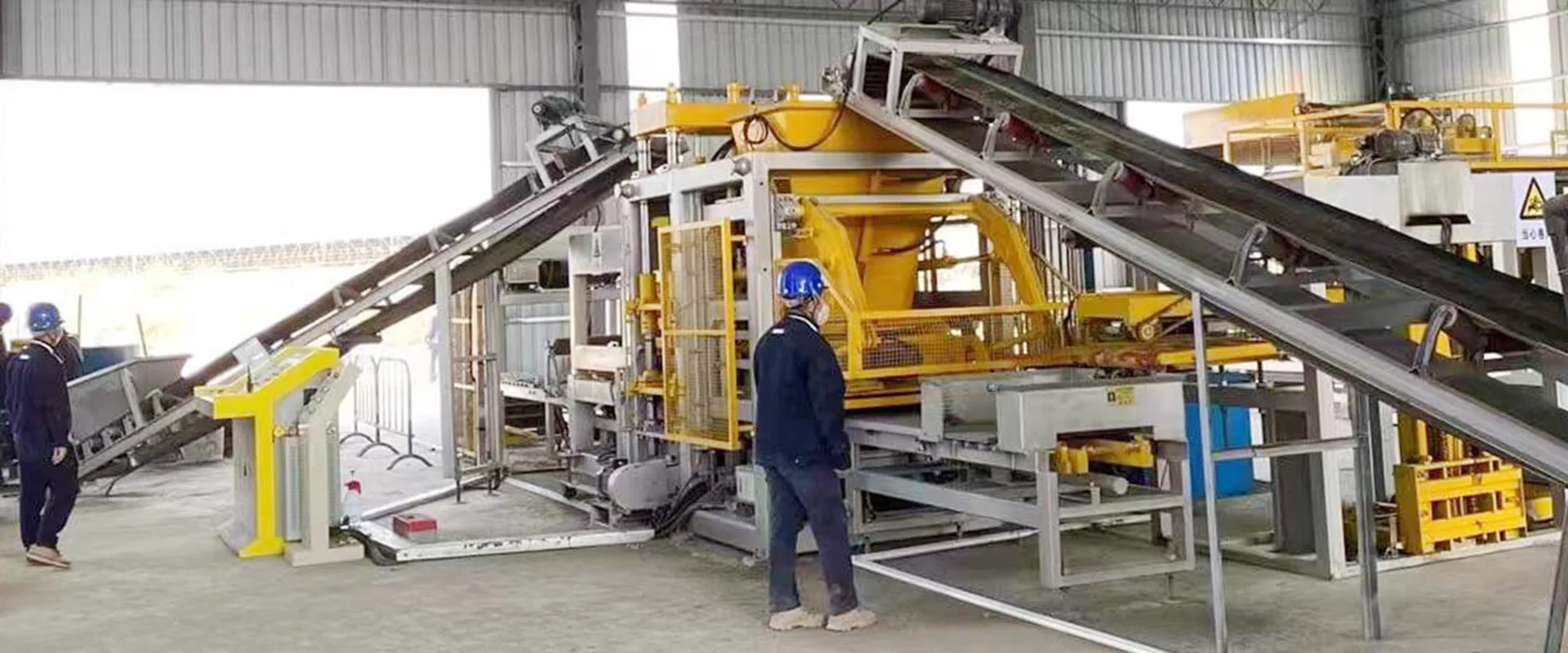

Designed for Continuous Industrial Production
The combination of hydraulic pressure and vibration compaction ensures stable block strength, uniform density, and consistent dimensions throughout the production process.
Machine Details & Core Advantages

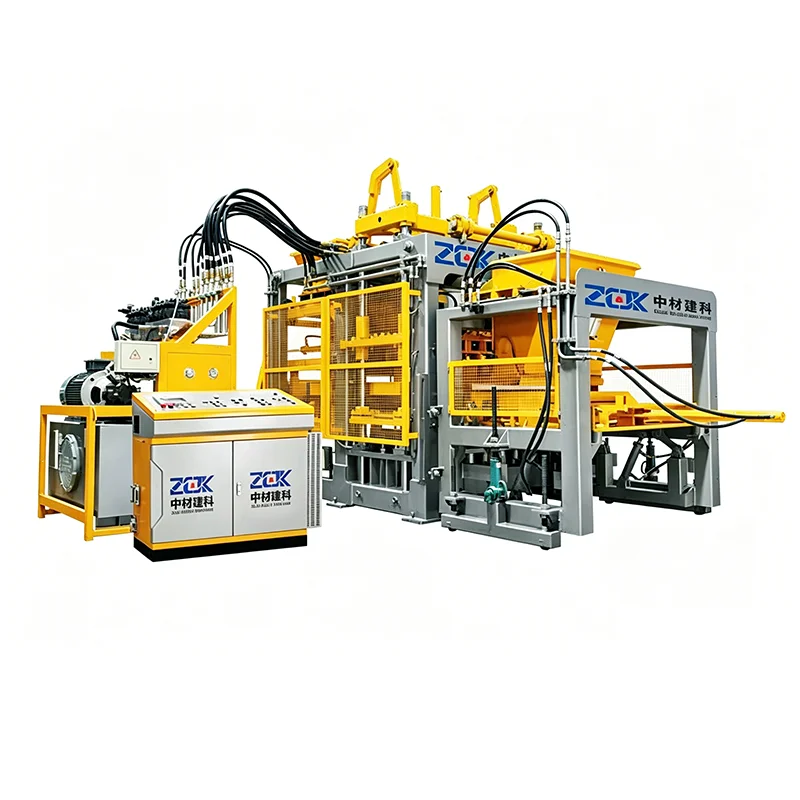

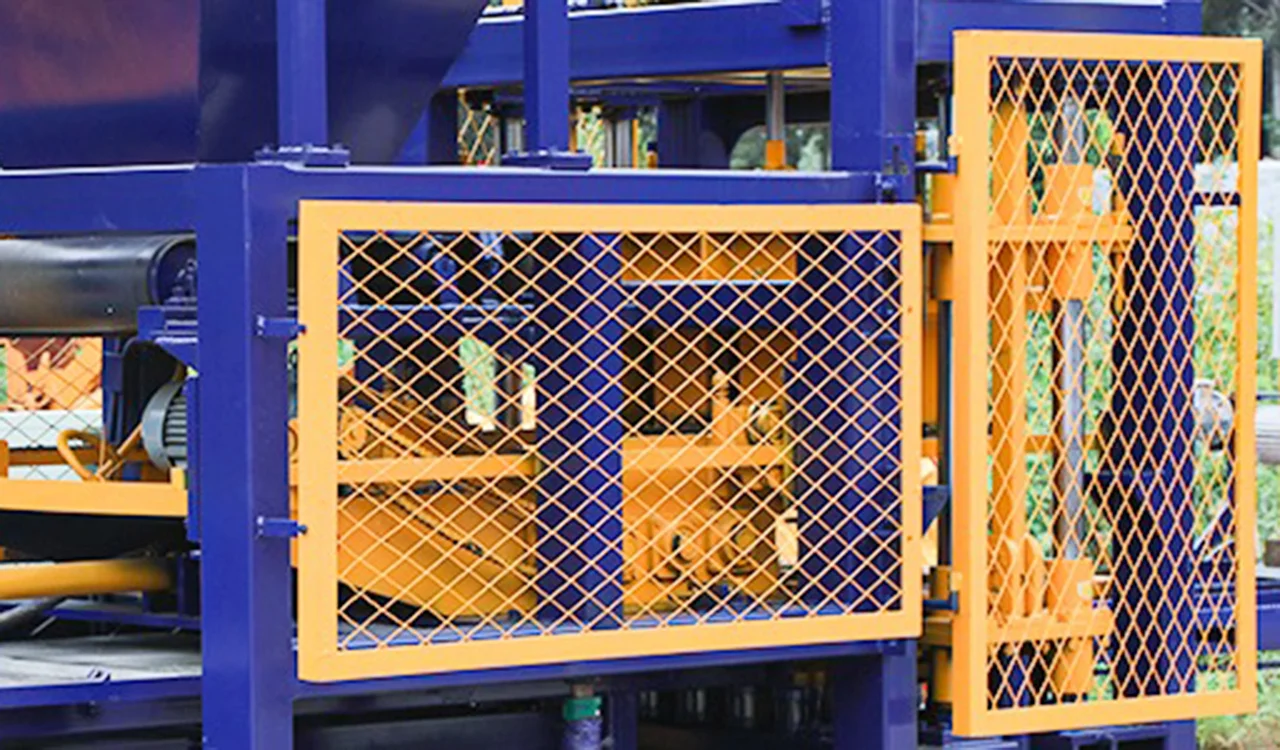

Heavy-Duty Machine Structure
The main machine frame is manufactured from high-strength steel and reinforced structural components. The robust construction helps maintain machine stability during continuous vibration and long production cycles, ensuring reliable performance under heavy-duty operating conditions.

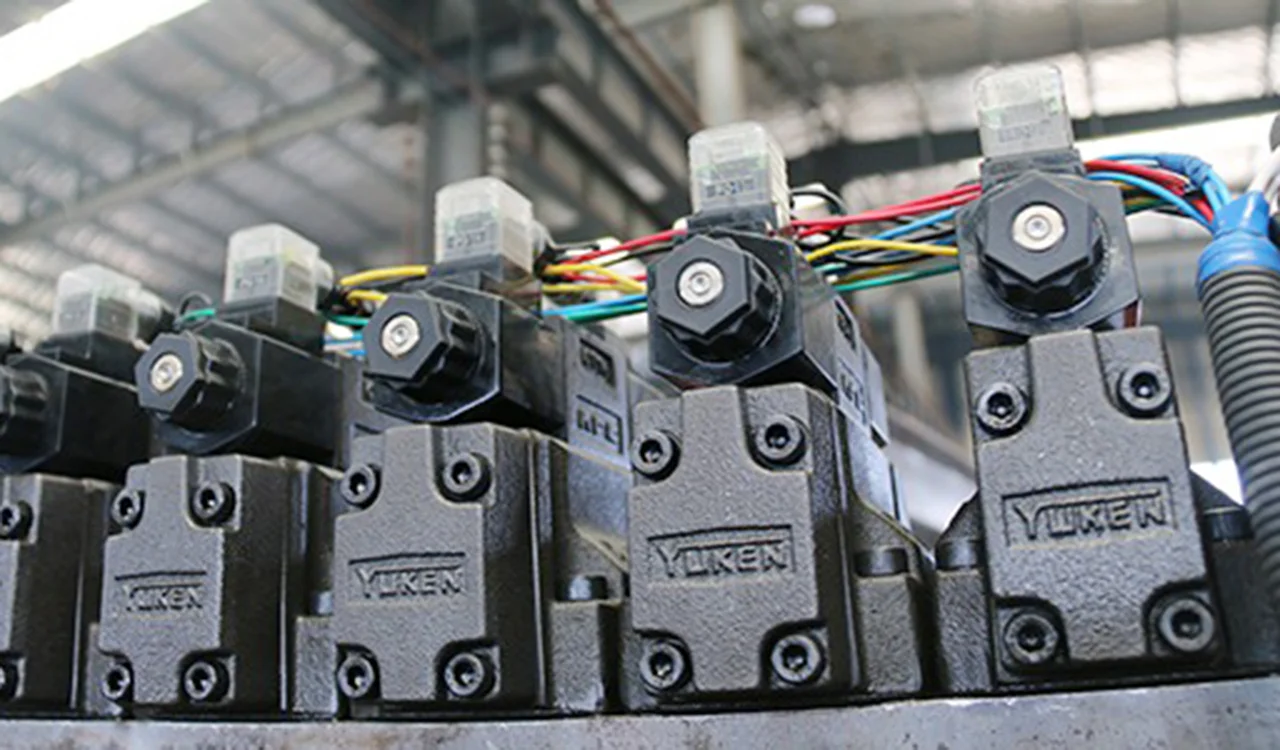

High-Efficiency Hydraulic System
The hydraulic system provides stable pressure throughout the moulding process, improving material compaction and helping produce blocks with consistent strength and density. Optimized hydraulic control contributes to smooth operation and efficient production.

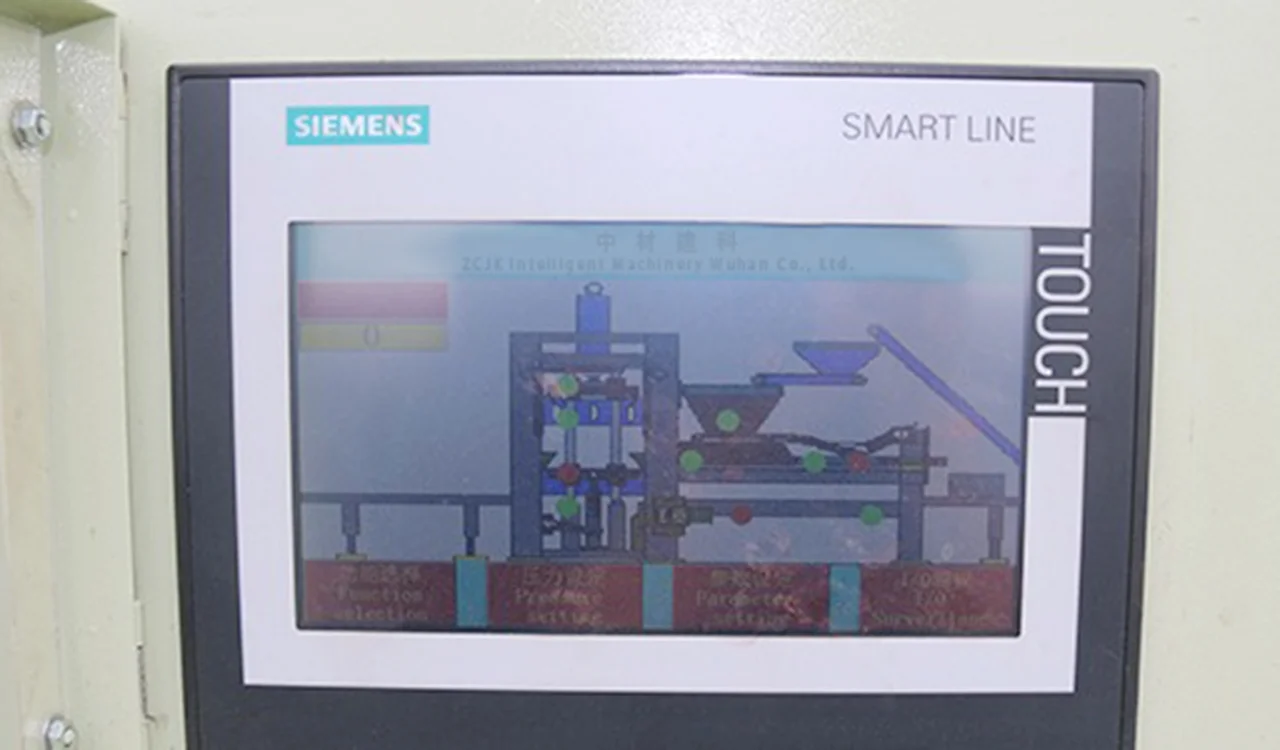

Intelligent PLC Control System
The PLC control system allows operators to monitor and manage production parameters through an easy-to-use interface. Automated operation reduces manual intervention and helps maintain consistent production quality.

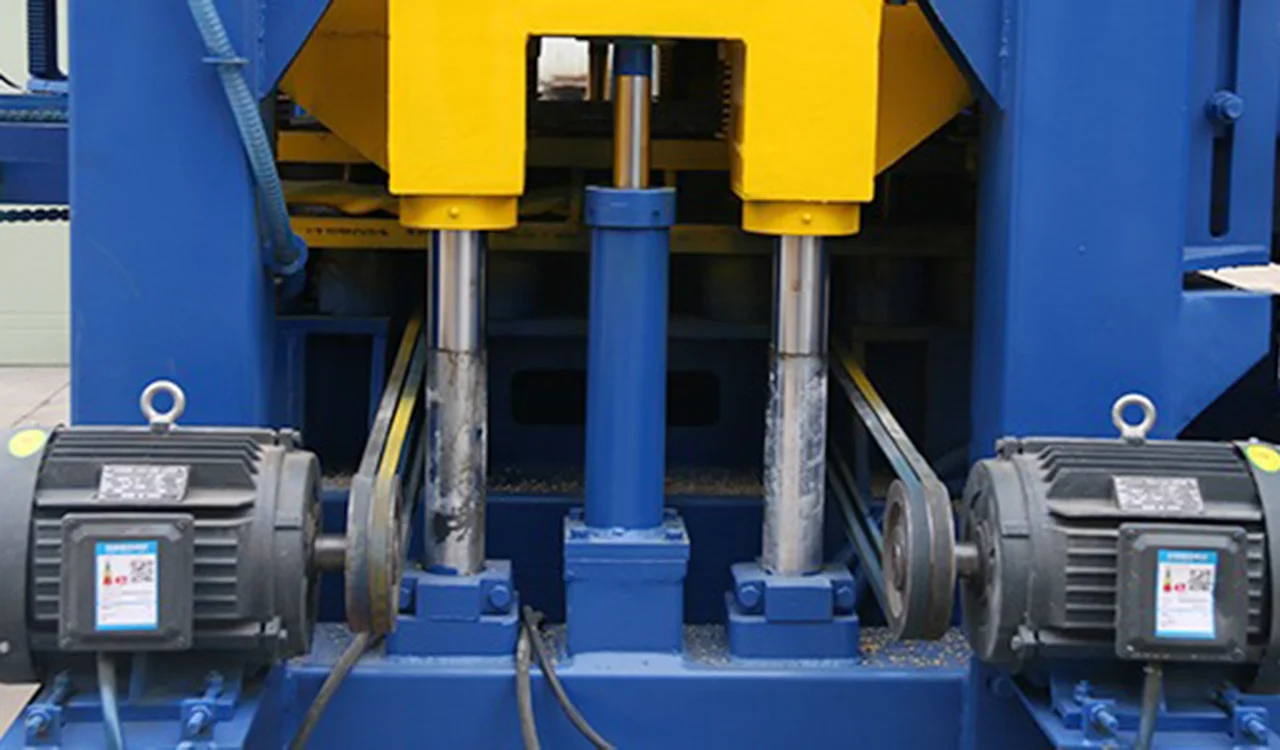

Powerful Vibration Technology
The vibration system combines high-frequency vibration with hydraulic pressure to improve material distribution and compaction. This process helps produce concrete blocks with higher density, improved compressive strength, and more accurate dimensions.

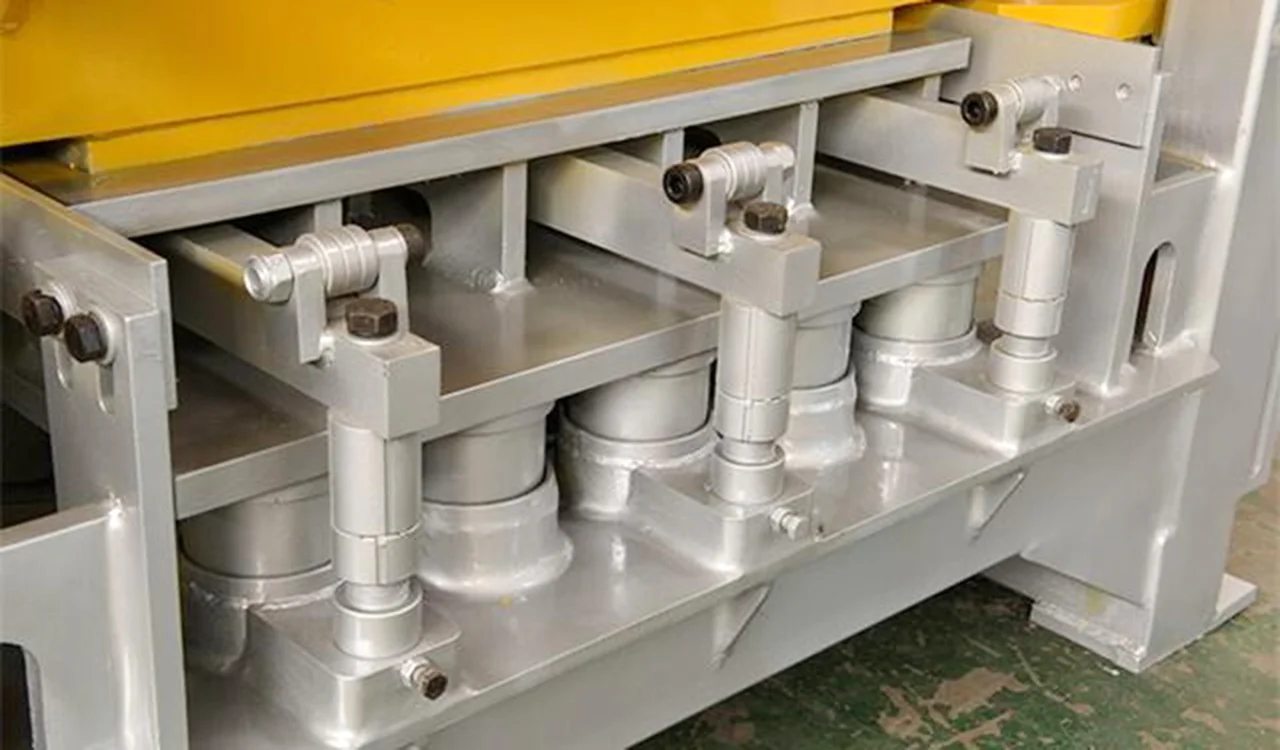

Wear-Resistant Mould Design
The mould is manufactured using precision machining technology and durable materials to support long-term production. Different moulds can be installed to manufacture a wide range of concrete products according to project requirements.

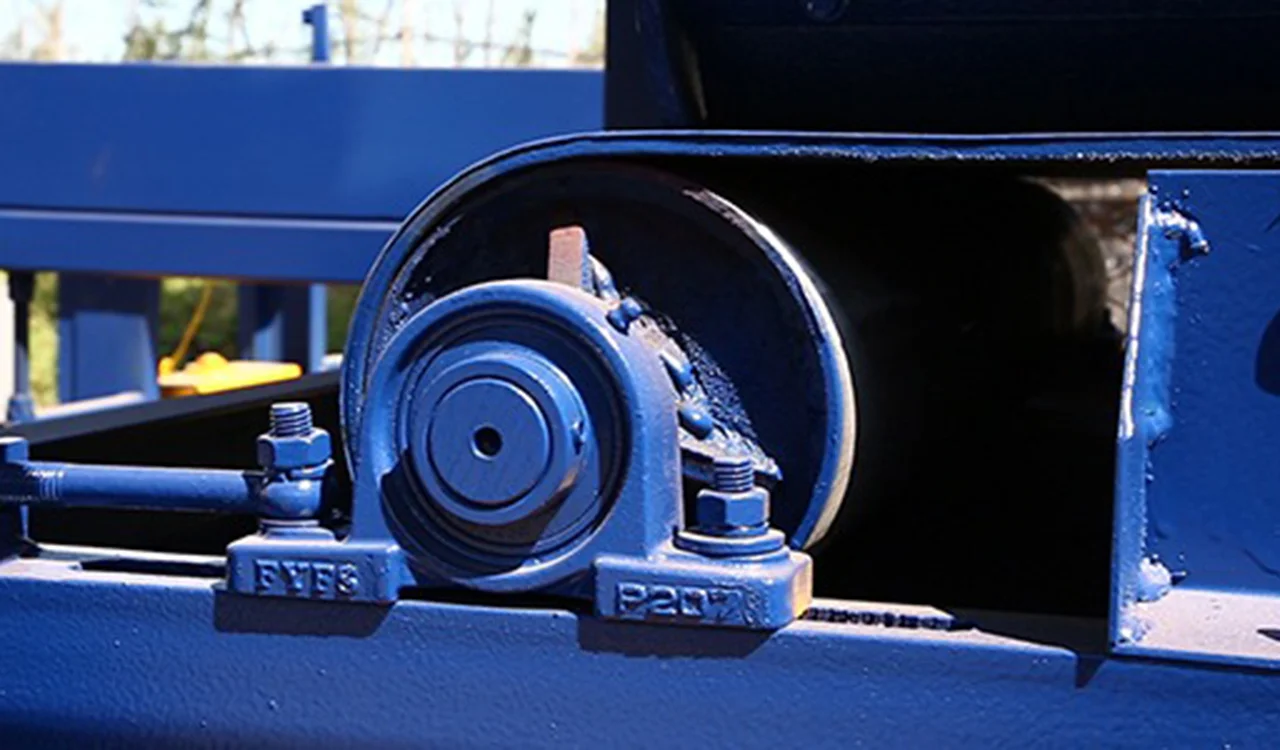

Automatic Material Feeding System
The feeding system distributes materials evenly into the mould area, helping reduce material waste and improve consistency between blocks produced in each cycle.

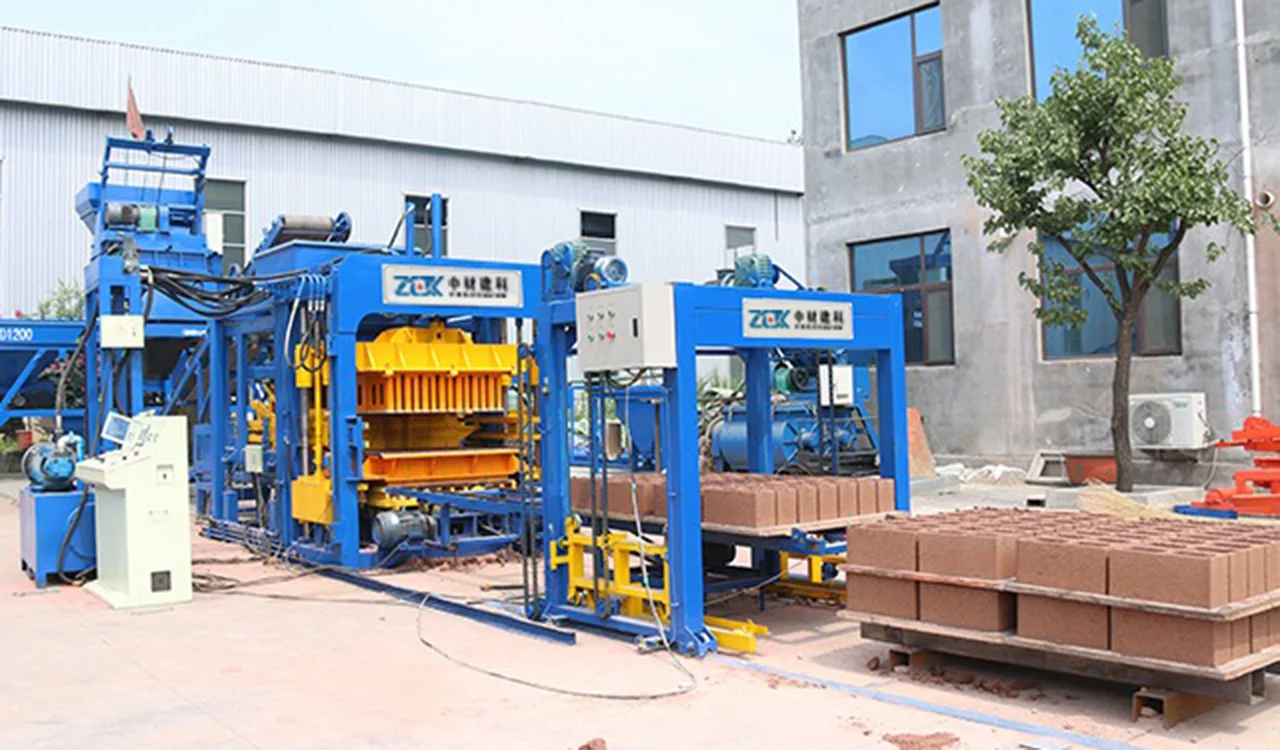

Industrial Anti-Corrosion Painting Process
The machine surface is treated with an industrial-grade coating process to improve corrosion resistance and protect the equipment in humid, coastal, and high-temperature environments. This helps maintain the machine's appearance and extend service life.

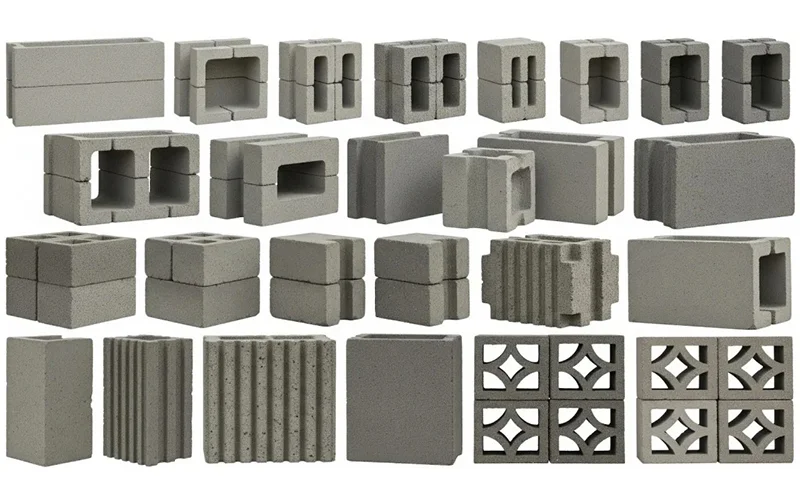

Multiple Block Types from One Production Line
By changing moulds, the QTY10-15 can produce a variety of concrete products, including:

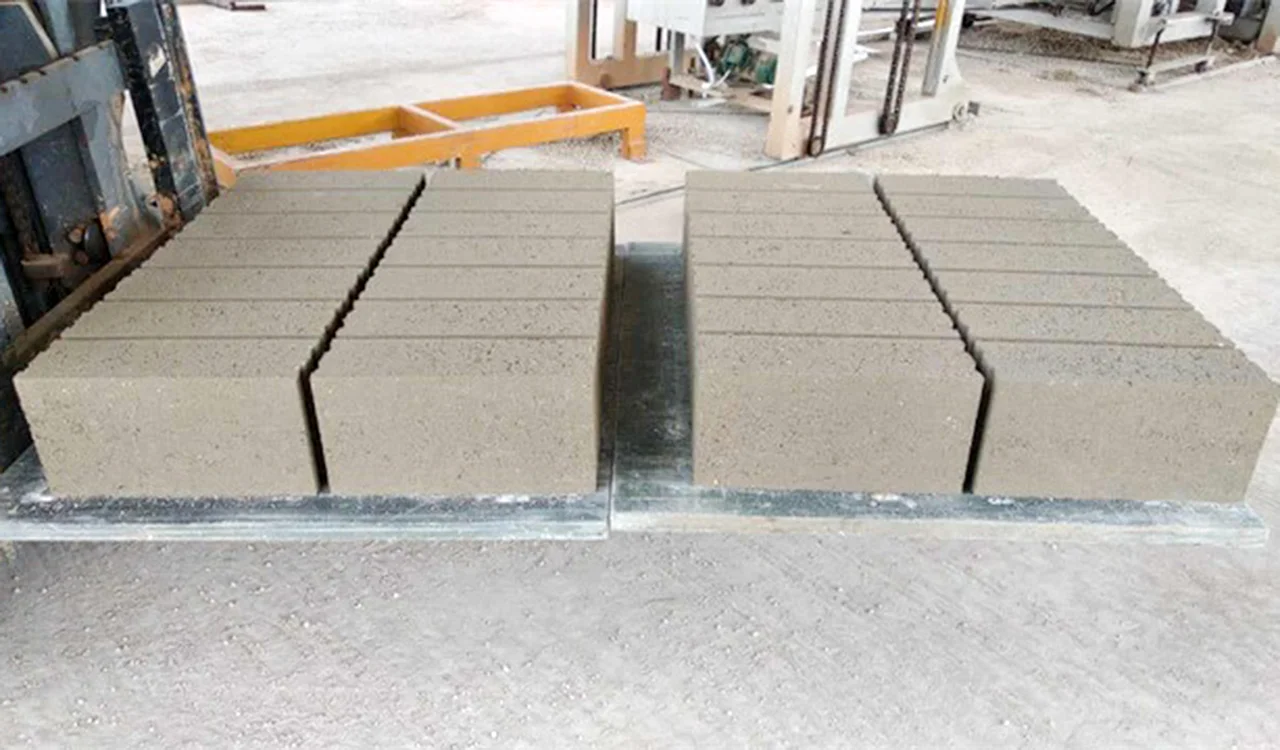

Hollow Blocks
Solid Blocks
Paver Bricks
Interlocking Bricks
Curbstones
Grass Planting Blocks
Customized Concrete Products
This flexibility enables manufacturers to supply products for residential construction, commercial projects, municipal engineering, landscaping works, and infrastructure developments using a single production line.
Compatible with Various Raw Materials
The QTY10-15 supports a wide range of commonly available raw materials, including:
Cement
Sand
Crushed Stone
Fly Ash
Slag
Quarry Dust
Recycled Construction Waste
Different mix designs can be adopted based on local material availability and product requirements, helping manufacturers balance product quality, production costs, and resource utilisation.
HS engineers can provide suitable mix recommendations based on local raw materials and target block strength requirements.
Applications
The QTY10-15 production line is widely used in:
Residential Housing Projects
Commercial Building Construction
Government Infrastructure Projects
Municipal Road Construction
Industrial Park Development
Public Facility Projects
Its production capacity and product flexibility make it suitable for manufacturers serving both the private and public-sector construction markets.
HS block machines have been installed in multiple countries across Africa, Southeast Asia, the Middle East, and South America.
About HS Machinery
Professional Manufacturer of Concrete Block Production Equipment
HS Machinery specialises in the design and manufacturing of concrete block production equipment and complete block factory solutions.
With extensive export experience and technical support capabilities, HS assists in equipment selection, factory planning, installation guidance, operator training, and after-sales service.
Our goal is to help customers establish efficient and stable concrete block production operations.
Request a Customised Block Production Solution
Provide the following information:
Block Type Required
Daily Production Target
Installation Country
Factory Area Available
Our engineering team will provide:
Equipment Configuration Recommendation
Factory Layout Drawing
Block Formula Guidance
Production Planning Support
Complete Quotation
Contact HS Machinery to discuss your concrete block production project.
