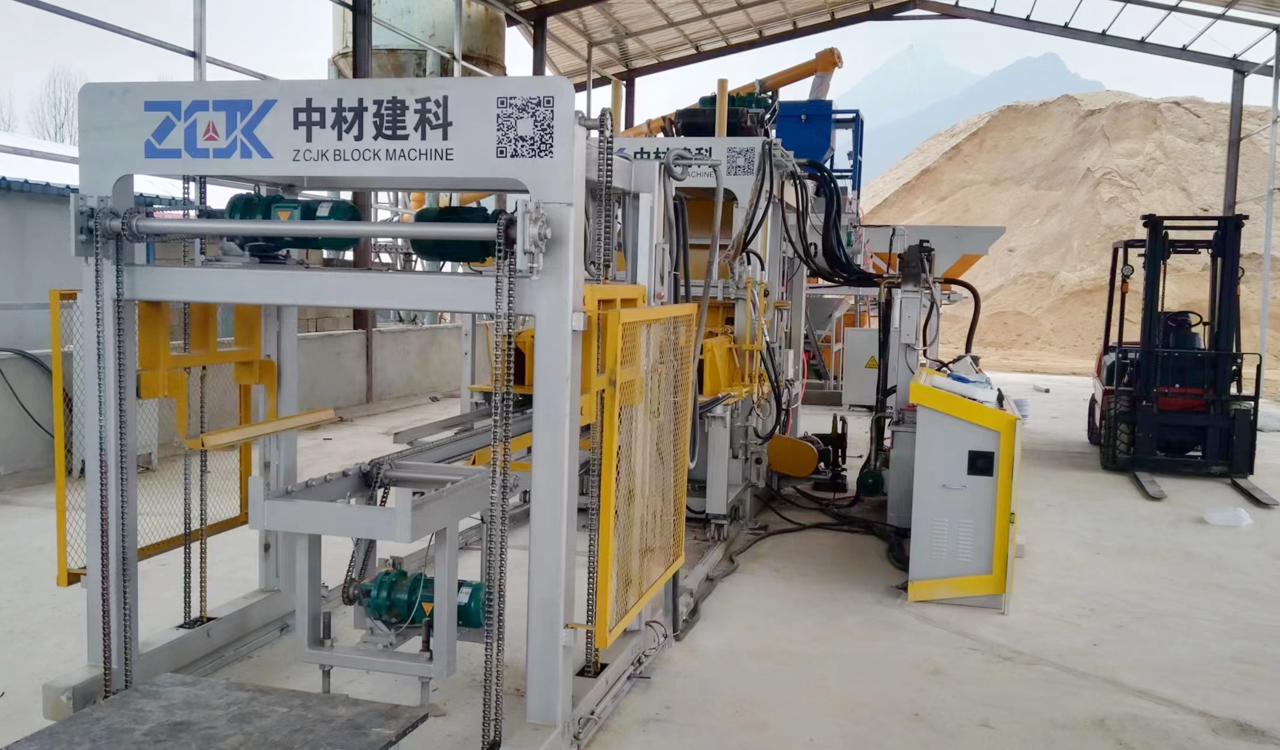

QTY8-15 Hydraulic Block Making Machine

More Block Types. Faster Mold Changes. Greater Production Flexibility.

The QTY8-15 is a fully automatic hydraulic block-making machine designed for manufacturers who need high-output production and the flexibility to switch between different block products. With QMC quick mold change, automated production systems, and flexible line configurations, HS helps you respond to changing orders while making better use of your equipment investment.

QTY8-15 at a Glance

Is QTY8-15 Right for Your Production?

The right block making machine should match your production targets, product range, and investment plan—not just the machine specifications.

The QTY8-15 is worth considering if you want to:

• Increase Production Capacity: Support higher-volume production with an automated block making system.

• Reduce Manual Handling: Integrate automatic feeding, conveying, and stacking equipment.

• Expand Your Product Range: Switch molds to produce different block sizes and shapes.

• Respond to Changing Orders: Use QMC quick mold change to make product changeovers more flexible.

• Build a Complete Production Line: Configure auxiliary equipment around your required output and factory conditions.

Production Capacity

Know Your Output Before You Invest

The QTY8-15 fully automatic block making machine supports different block products through mold changes. Review the reference output below to identify the configuration that best matches your target products and production volume.

Block Type	Graph	Block Size (mm)	Pieces per Mold Cycle	Output per 8 Hours
Standard Brick		240 × 115 × 53	45	86,400 pcs
Hollow Block		400 × 150 × 200	10	16,800 pcs
Hollow Block		400 × 200 × 200	8	13,440 pcs
Paving Block		200 × 100 × 60	28	40,320 pcs
Ripple Paving Block		225 × 112.5 × 60	21	30,240 pcs
I-Shaped Paving Block		200 × 160 × 60	16	23,040 pcs

Need Capacity for Your Own Block Size?

Send us your block dimensions, technical drawing, or sample photo. HS can help assess the suitable mold configuration and estimated output for your target product.

QMC Quick Mold Change

Change Molds Faster. Respond to More Orders.

When your customers need different block sizes and shapes, changing products should not create unnecessary production delays. The QTY8-15 features a QMC Quick Mold Change system, designed to simplify mold replacement and improve production flexibility.

• Shorter Mold Changeovers: Reduce the time required to switch between compatible molds.

• More Product Options: Adapt production to different block sizes, shapes, and applications.

• Less Changeover Downtime: Make it easier to respond to changing orders without unnecessary production interruptions.

• Better Equipment Utilization: Switch products more flexibly instead of limiting production to one mold configuration.

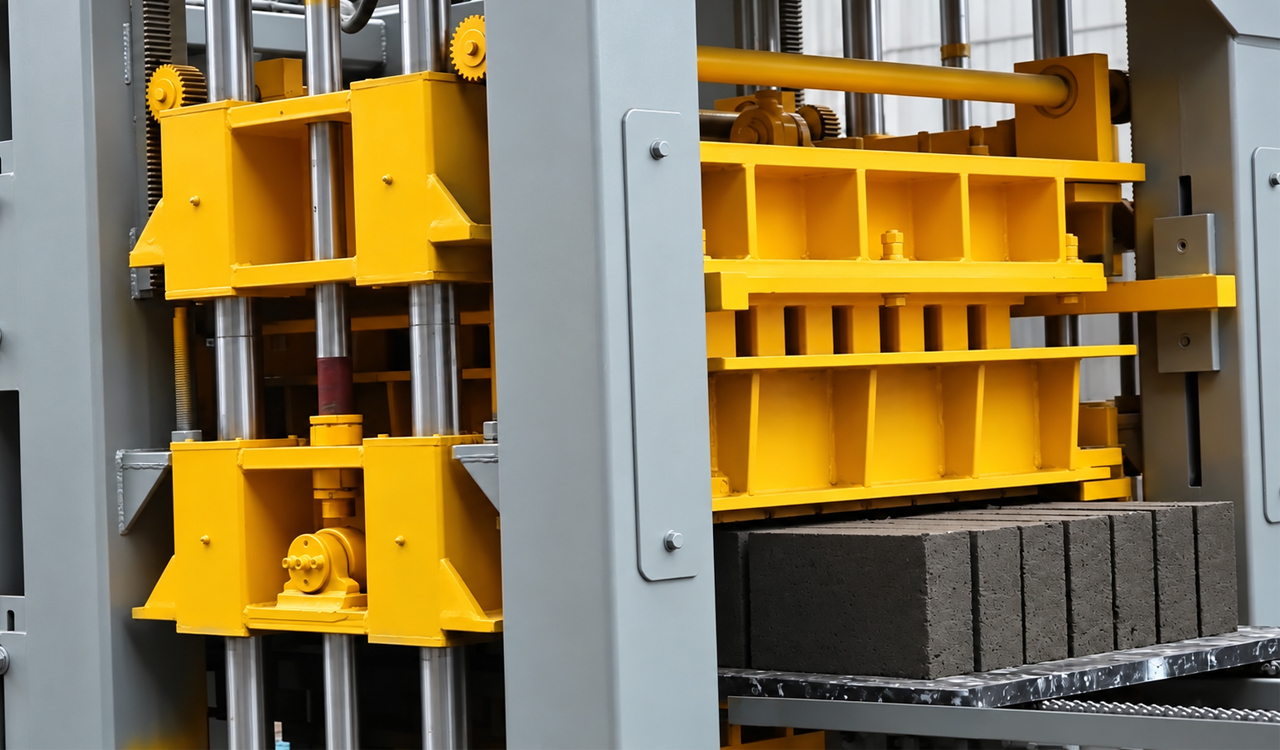

Custom Molds for Your Market

HS can customize molds according to your required block dimensions, drawings, or samples, helping you produce the products your market needs.

Send us your block drawing or sample to discuss mold customization.

Key Technical Advantages

Engineered for Efficient, Consistent Block Production

01. Dynamic-Static Vibration Table: The dynamic-static vibration table combines with the forming system to support consistent block compaction during repeated production cycles. Supports repeatable forming and helps maintain consistent block quality.

02. Hydraulic Forming System: The hydraulic system provides the pressure required for block forming and works with the vibration system during production. Supports stable forming across repeated production cycles.

03. Frequency-Conversion Control: Frequency-conversion control helps regulate machine operation and optimize the use of the drive system. Supports controlled operation and efficient production management.

04. PLC Automatic Control: The PLC control system coordinates key production actions and works with the automatic feeding, conveying, and stacking equipment. Reduces repetitive manual handling and supports a more consistent production workflow.

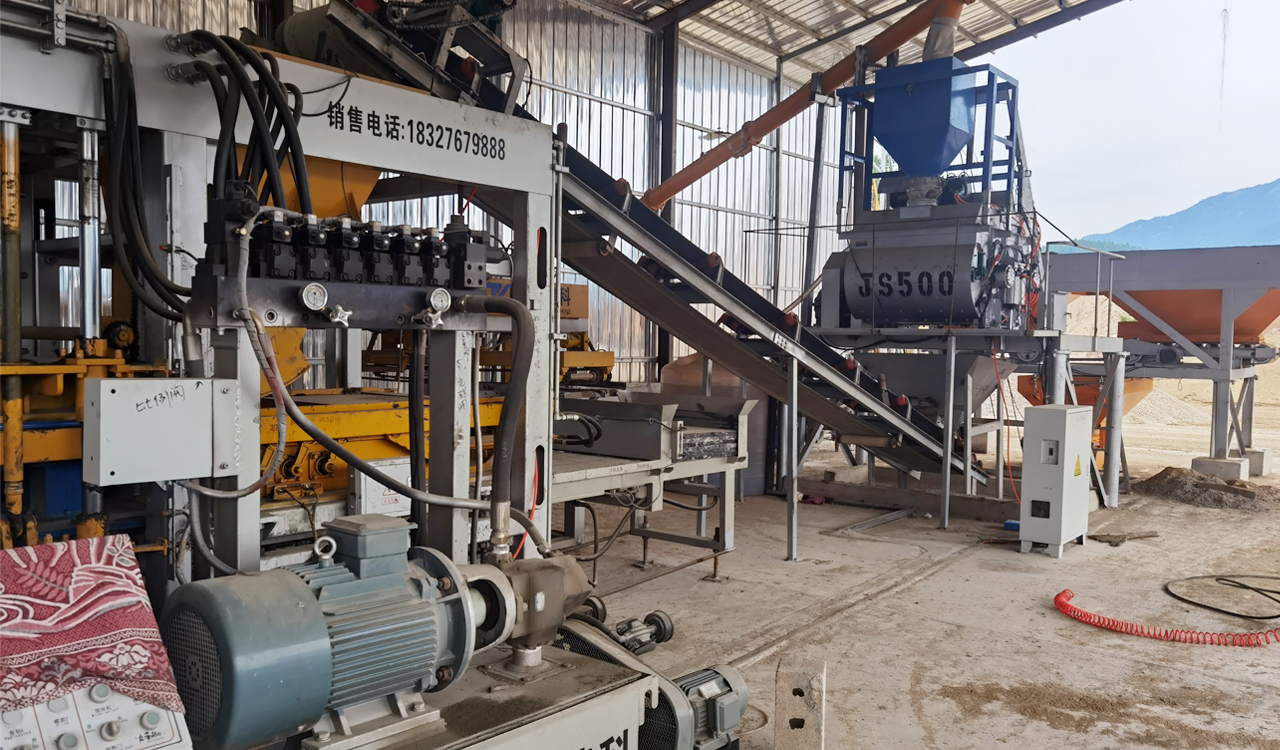

Complete Production Line Configuration

More Than a Block Machine, A Production System Built Around Your Needs

The QTY8-15 can be supplied with supporting equipment to create a more integrated block production line. HS can help configure the line according to your target output, product types, factory layout, labor conditions, and investment plan.

Typical Production Flow

• Material Preparation

• Mixing

• Feeding

• Block Forming

• Conveying

• Stacking

• Curing

The final workflow depends on the block type, raw materials, handling method, and curing requirements.

Configure Your Line Around Your Business

01. Target output: Match the equipment arrangement to your production goals.

02. Factory layout: Consider available space and material flow.

03. Automation level: Select suitable feeding, handling, and stacking systems.

04. Budget: Prioritize the equipment required for your current production stage.

05. Future expansion: Allow for potential changes in product range or capacity.

Adapted to Your Materials and Products

Make the Most of the Materials Available to You

The suitability of local materials depends on their properties, the target block type, and the required product performance. HS can help assess your available materials and provide mix-ratio guidance for your production requirements.

Our support can include:

• Material Assessment: Review the raw materials available at your site.

• Mix-Ratio Guidance: Recommend an initial mix approach for testing.

• Block Specification Matching: Consider the required block size, shape, and application.

• Production Guidance: Help identify the appropriate machine and mold configuration for your intended products.

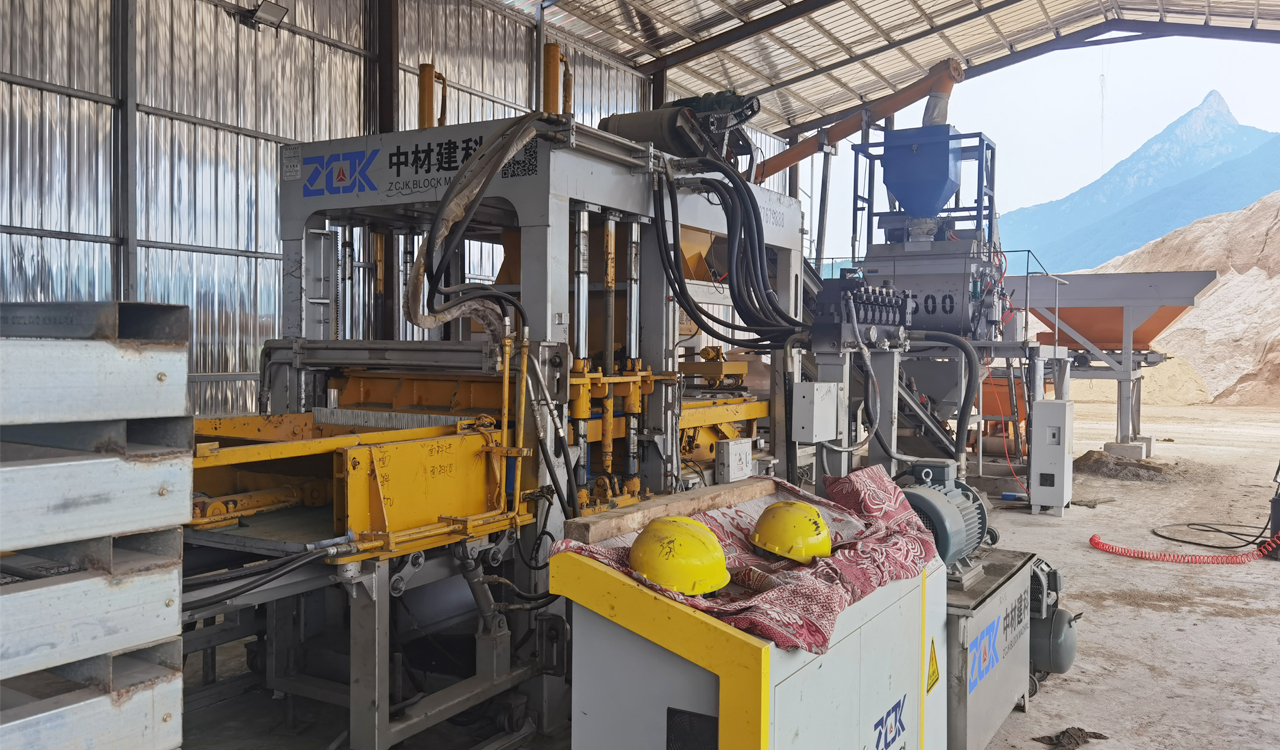

For compressed earth blocks, soil characteristics and stabilizer requirements need to be assessed. For concrete blocks, the aggregate, cement, water, and other ingredients must be evaluated according to the intended product.

Share your available materials and target block specifications with HS before finalizing your equipment configuration.

Real Production Evidence

See the Machine. Inspect the Blocks. Evaluate the Fit.

Choosing a block-making machine is easier when you can review the equipment in operation and inspect the finished products.

Before making your decision, ask HS for:

01. Machine Operation Video: See the QTY8-15 working through its production cycle.

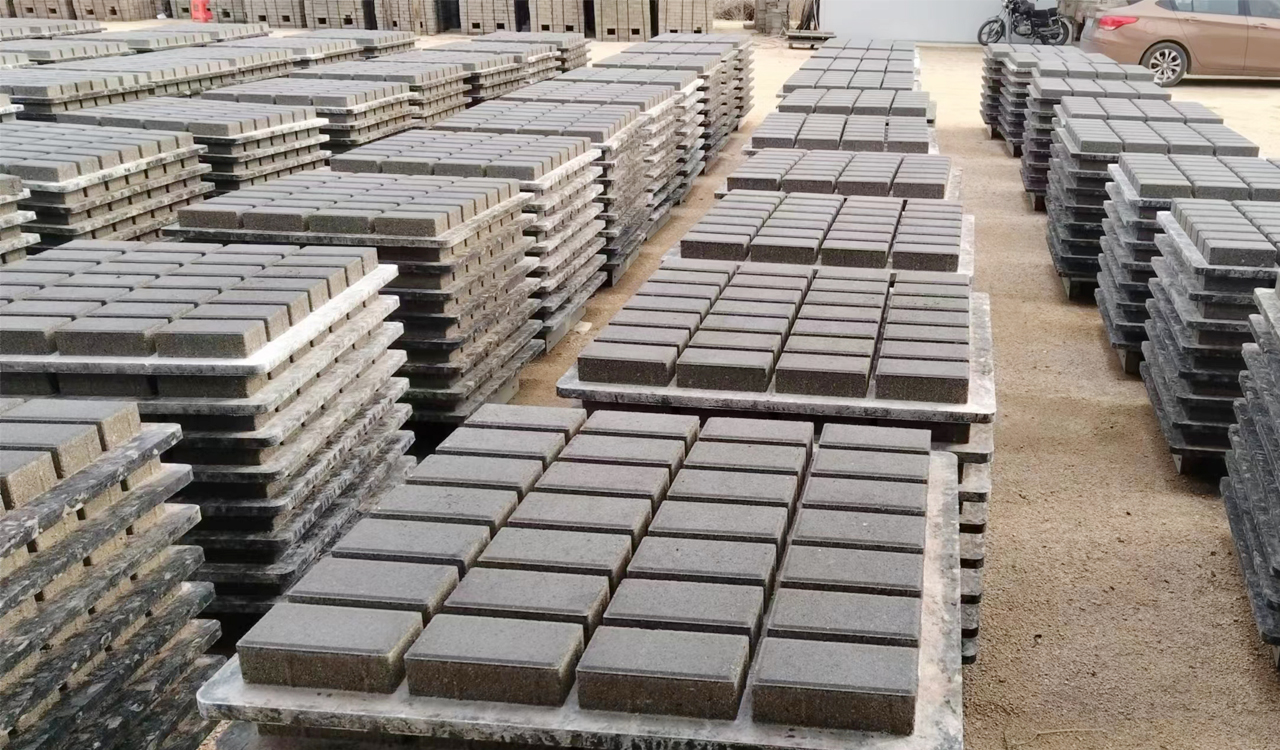

02. Finished Block Samples: Review the block types and dimensions produced with the corresponding molds.

03. Mold Details: Confirm the mold design for your target products.

04. Project Configuration: Understand which auxiliary equipment is required for your output and workflow.

Have a specific block in mind? Send us a photo or drawing so we can discuss the mold and production configuration with you.

After-Sales Support

• Support Beyond Delivery: Your investment depends not only on the machine you buy, but also on how effectively you can install, operate, and maintain it. HS provides support designed to help customers move from equipment delivery toward production and ongoing operation.

• Overseas Repair Service: Support for equipment inspection, troubleshooting, and repair when technical assistance is required.

• Installation Guidance: Guidance for equipment installation and commissioning according to the project arrangement.

• Remote Technical Training: Training support covering machine operation, parameter adjustment, routine maintenance, and basic troubleshooting.

• One-Year Warranty: One-year warranty coverage according to the agreed warranty terms.

• Replacement Parts Support: Replacement-parts service to help address equipment maintenance needs and reduce avoidable downtime.

Frequently Asked Questions

01. Q: What types of blocks can the QTY8-15 produce?

        A: The published QTY8-15 capacity table includes standard bricks, hollow blocks, paving blocks, ripple-shaped paving blocks, and I-shaped paving blocks. Other products should be assessed according to the applicable mold and production configuration.

02. Q: What is the advantage of QMC quick mold change?

        A: QMC is designed to simplify mold replacement and improve production flexibility, making it easier to switch between compatible products. Actual changeover time depends on the mold and equipment configuration.

03. Q: Can HS customize molds for my block dimensions?

        A: Yes. Provide your block dimensions, drawing, or sample photo so HS can assess the suitable mold design.

04. Q: Can the QTY8-15 be supplied as a complete production line?

        A:  Yes. The machine can be supplied with supporting equipment, including mixing, feeding, conveying, and stacking systems. The final configuration depends on your production goals and project conditions.

05. Q: Can I use local soil or other available materials?

        A: Material suitability must be assessed according to the material properties, intended block type, and required product performance. HS can provide material assessment and mix-ratio guidance for your project.

06. Q: What information should I provide to get a suitable configuration?

        A: Share your country, target block type and dimensions, required output, available materials, factory space, and whether you need the main machine or a complete production line.

Get the Right QTY8-15 Setup for Your Business

Tell us what you want to produce, how much you need to produce, and what materials and facilities you already have. HS will help you evaluate the suitable mold, machine configuration, and production line.

So you can control unnecessary costs and move toward production with greater confidence.
