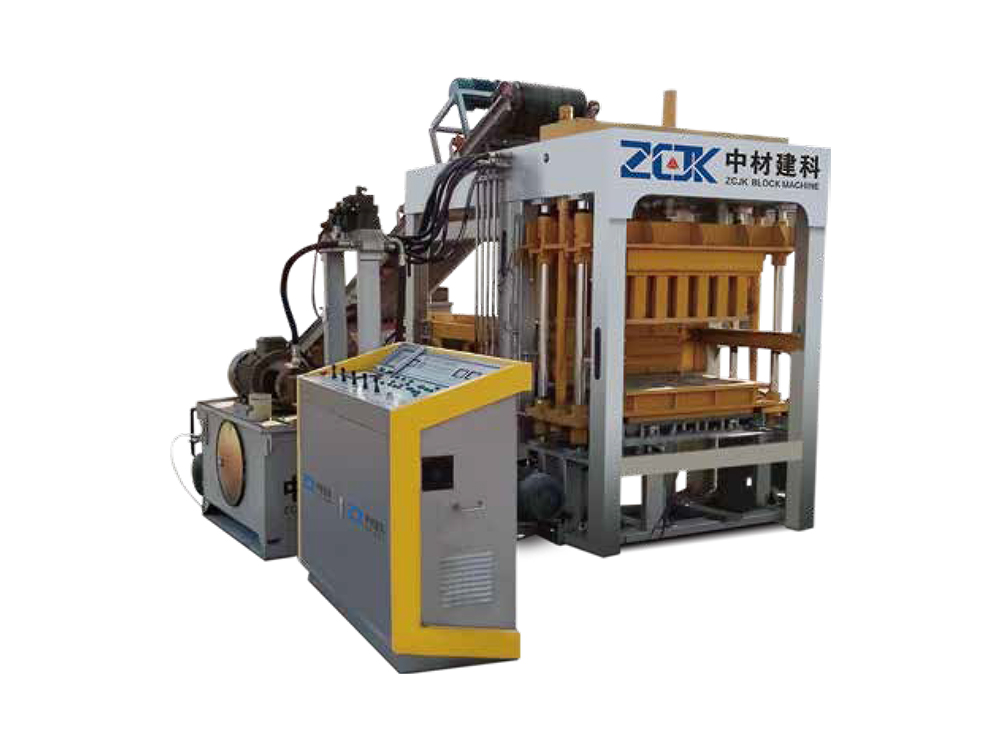

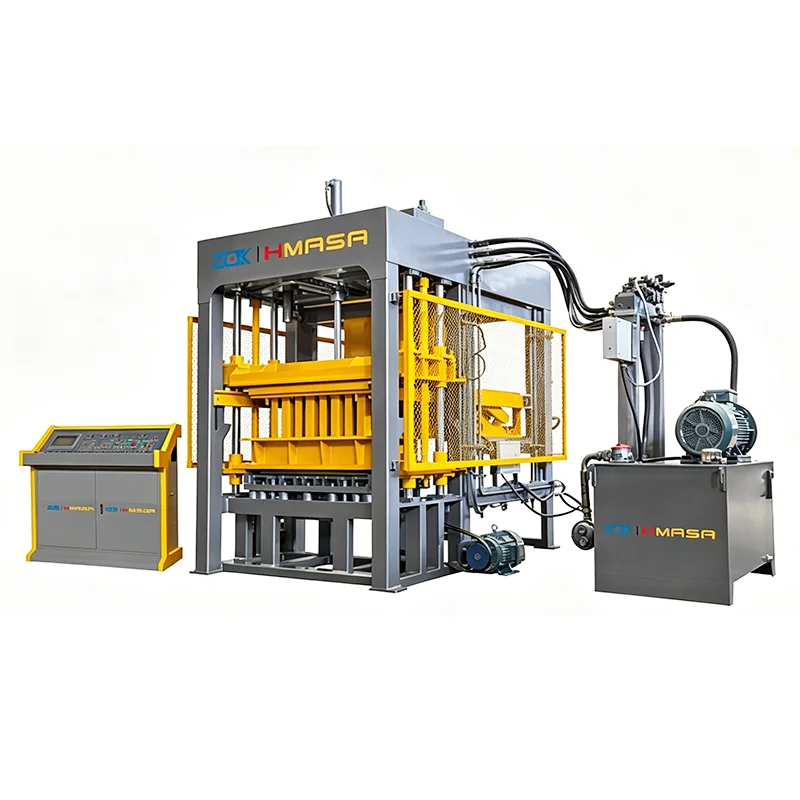

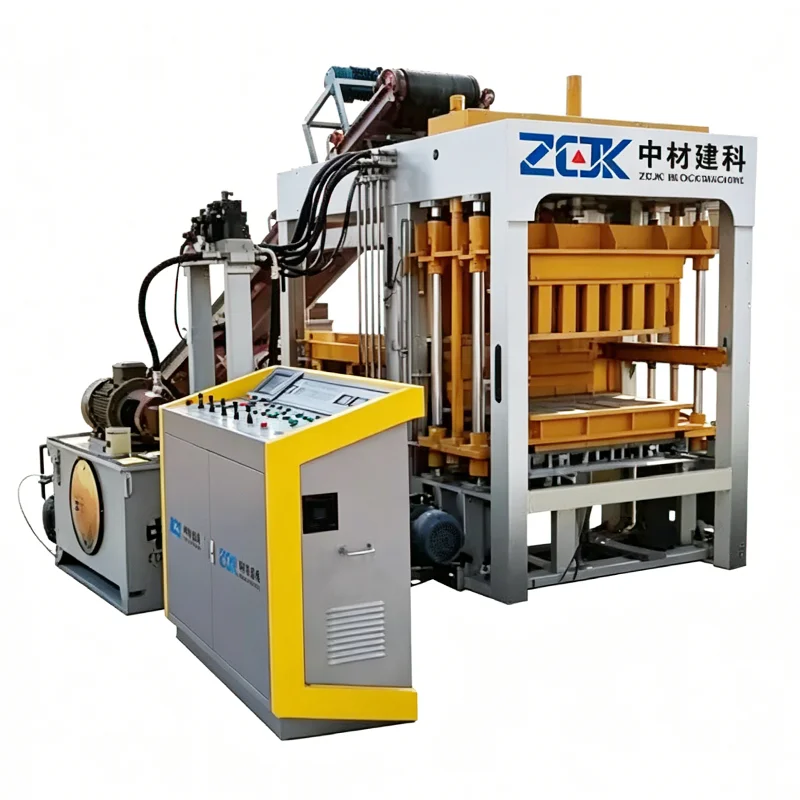

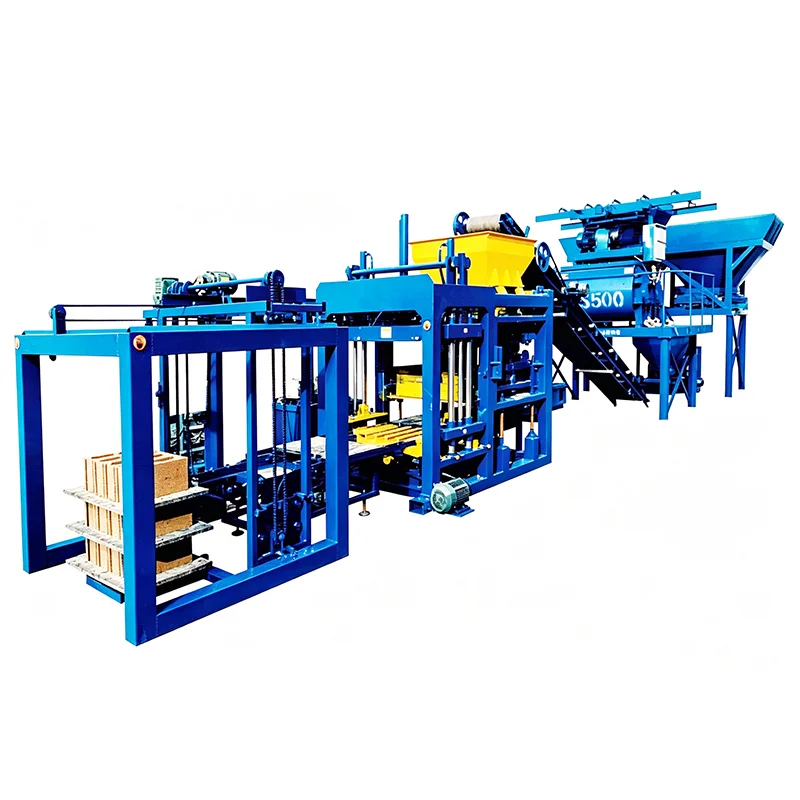

QTY4-15 Fully Automatic Block Forming Machine

Efficient and Reliable Solution for Concrete Block Production

The HS QTY4-15 Fully Automatic Block Forming Machine is designed for the production of hollow blocks, solid blocks, paving bricks, interlocking bricks, curbstones, and other concrete products.

Equipped with PLC automatic control, hydraulic pressure system, and vibration compaction technology, the machine provides stable performance, consistent block quality, and efficient production. It is suitable for block manufacturers, construction material suppliers, and contractors requiring reliable concrete product production.

Production Capacity

Block Type	Image	Size (mm)	Molding Cycle	QTY (pcs)/Mould	Qty(pcs)/Hour	Output /8Hours
Solid Block		240x115x53	15-17	30Pcs	7200-6350	57600-50800
Hollow Block		400x150x200	15-20	5Pcs	900-1200	7200-9600
Hollow Block		400x200x200	15-20	4Pcs	720-960	5760-7680
Paver		200x100x60	15-25	16Pcs	2304-3840	18720-30720
Paver		225x112.5x60	15-25	12Pcs	1728-2880	13824-23040

Stable Output for Daily Block Production

The QTY4-15 combines hydraulic pressure and vibration forming technology to achieve efficient production cycles while maintaining block density and dimensional accuracy.

The production capacity makes the machine suitable for residential construction, municipal engineering projects, road paving, landscaping, and local building material supply.

Technical Specifications

Designed for Automatic Production

The automatic control system simplifies operation while helping maintain stable production quality throughout each production cycle.

Machine Details & Core Advantages

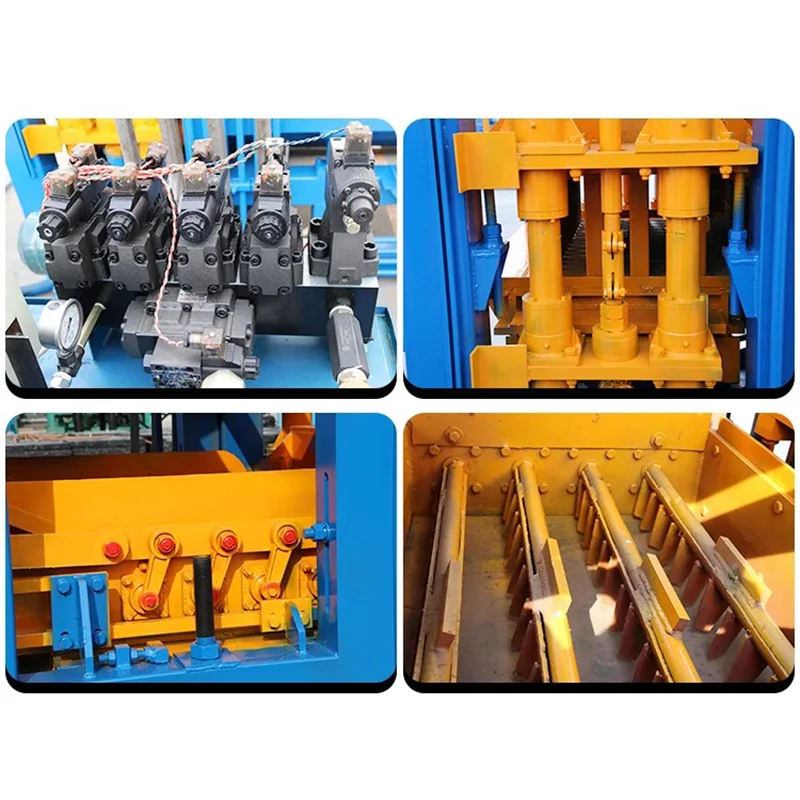

Heavy-Duty Machine Frame

The main machine adopts a reinforced steel structure with precision welding technology. The rigid frame design helps reduce vibration impact during operation and maintains machine stability under continuous production conditions.

A stable machine structure contributes to consistent block dimensions and longer equipment service life.

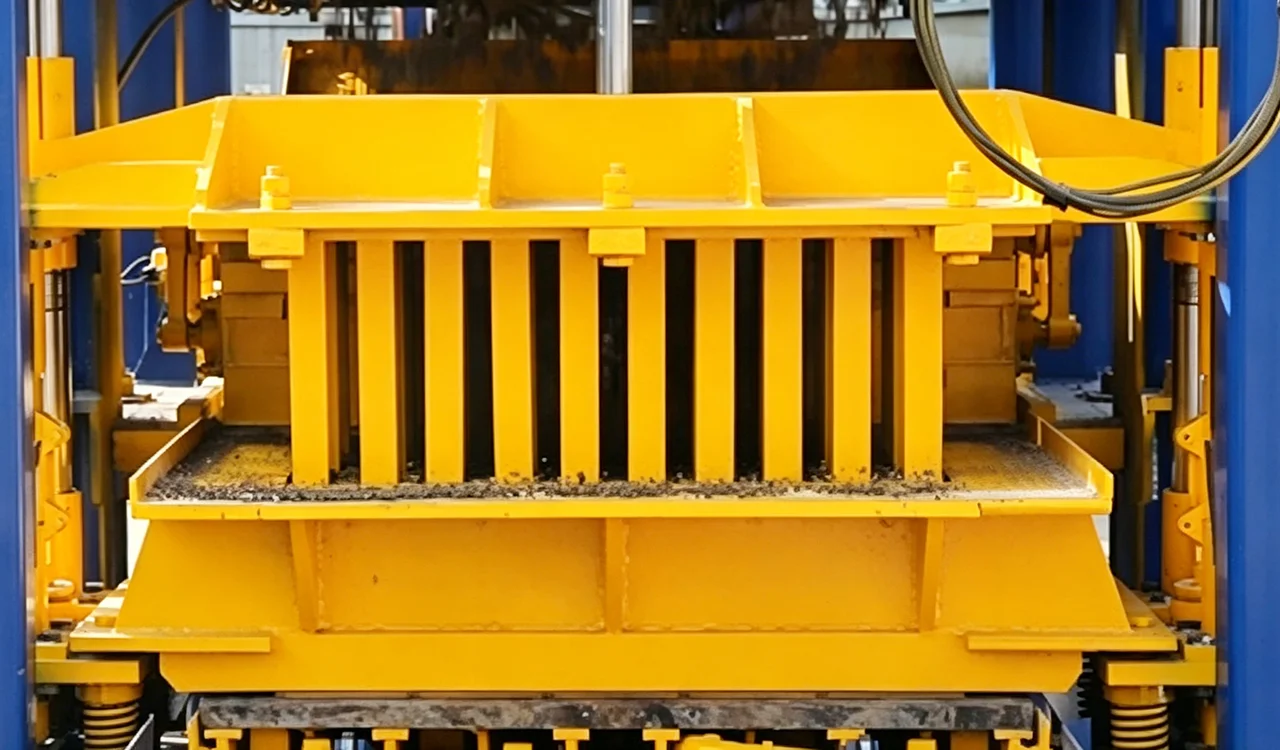

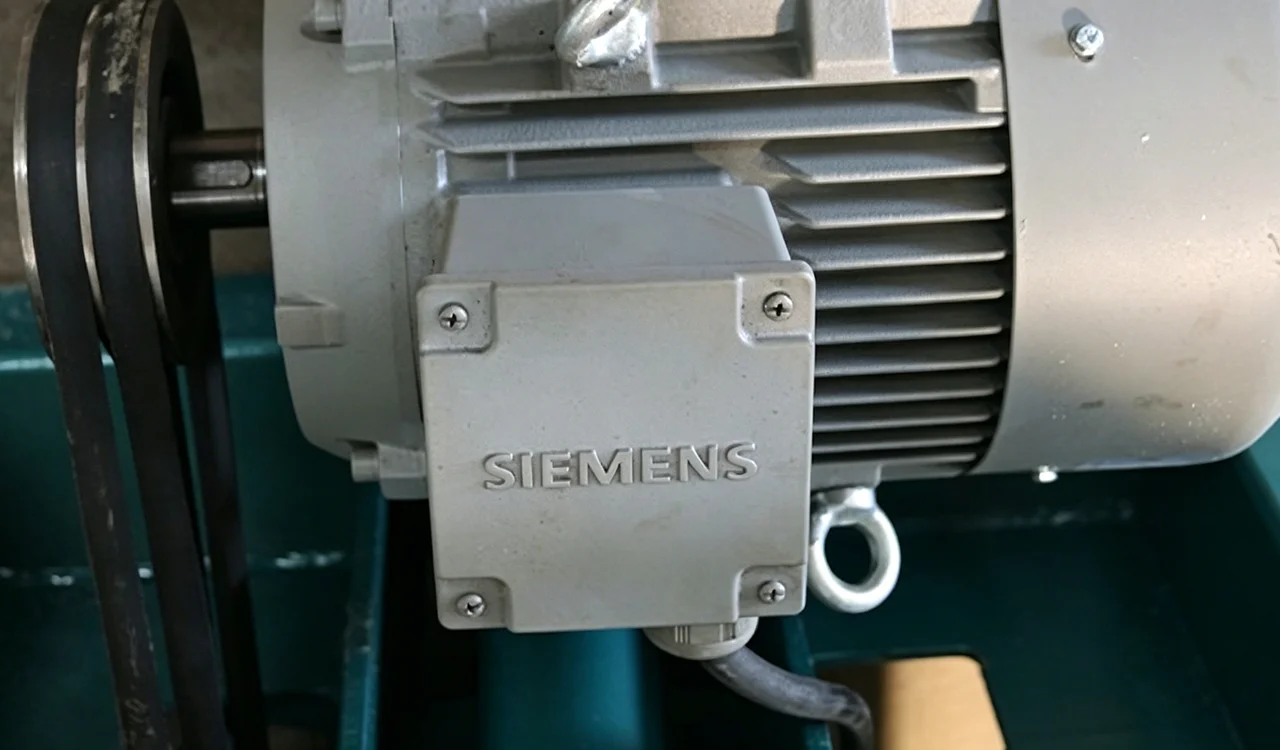

Hydraulic Power System

The hydraulic system provides stable pressure during moulding and demoulding processes. Combined with vibration compaction, it helps improve block density, surface finish, and compressive strength.

Stable hydraulic performance also contributes to smooth machine operation and production efficiency.

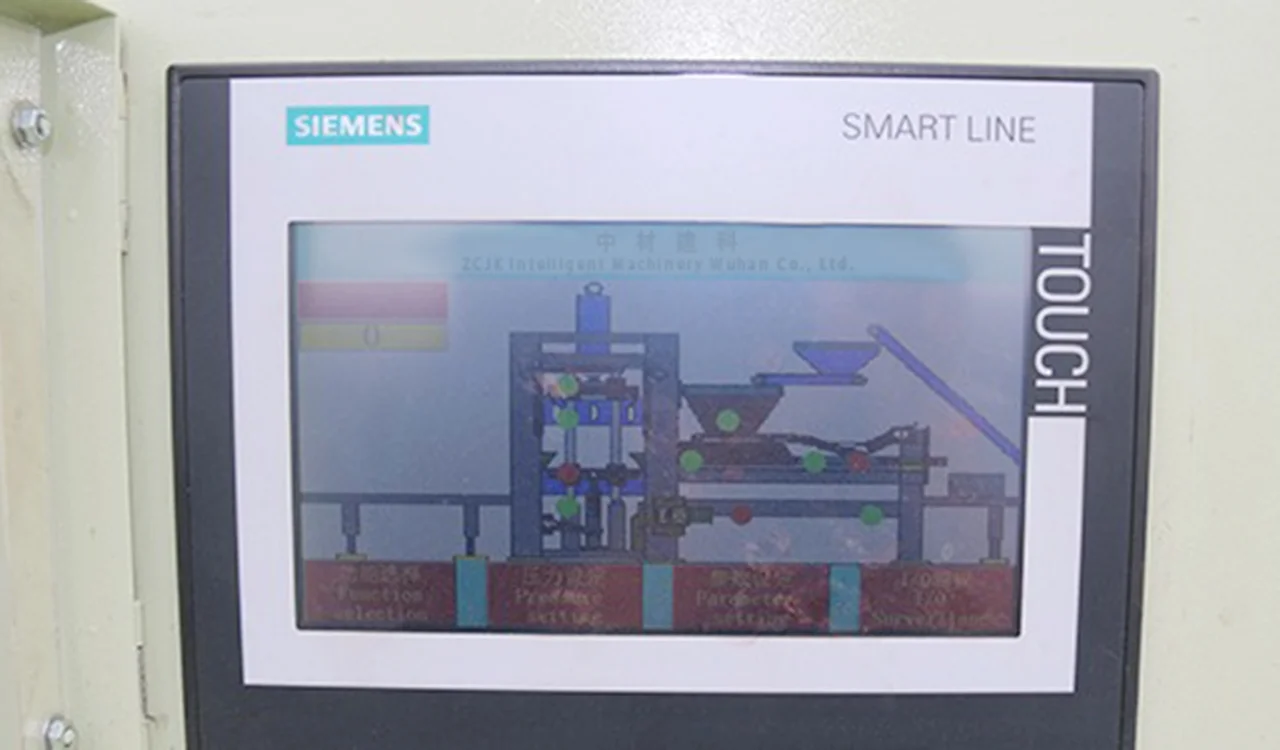

Intelligent PLC Control System

The PLC control system allows operators to monitor and adjust production parameters through a centralized control interface.

Automatic control reduces manual intervention, improves production consistency, and simplifies daily operation.

High-Efficiency Vibration System

The vibration system combines hydraulic pressure with platform vibration to ensure effective material compaction.

Higher compaction helps produce blocks with uniform density, accurate dimensions, and reliable strength for construction applications.

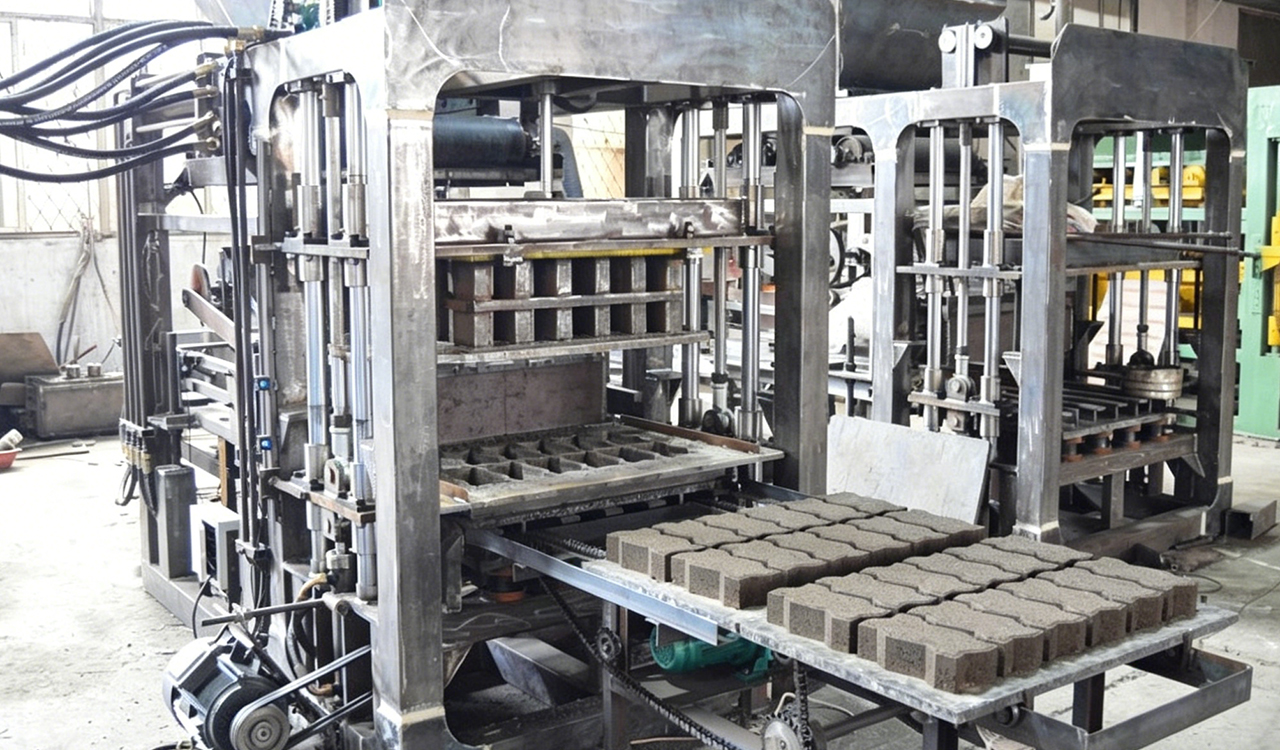

Wear-Resistant Mould Technology

The mould adopts precision machining and wear-resistant materials to maintain dimensional accuracy during long-term production.

By replacing moulds, the machine can produce a variety of concrete products while maintaining stable product quality.

Automatic Feeding System

The feeding system distributes material evenly across the mould area, helping improve consistency between blocks and reduce material waste during production.

Uniform feeding contributes to better finished block quality and production efficiency.

Industrial Painting Process

The machine surface is treated with an industrial coating process to improve corrosion resistance and provide protection in humid, tropical and coastal environments.

The coating helps maintain equipment appearance and extends service life.

Multiple Block Types from One Machine

Flexible Production for Different Market Requirements

The QTY4-15 supports mould replacement to produce different concrete products according to market demand.

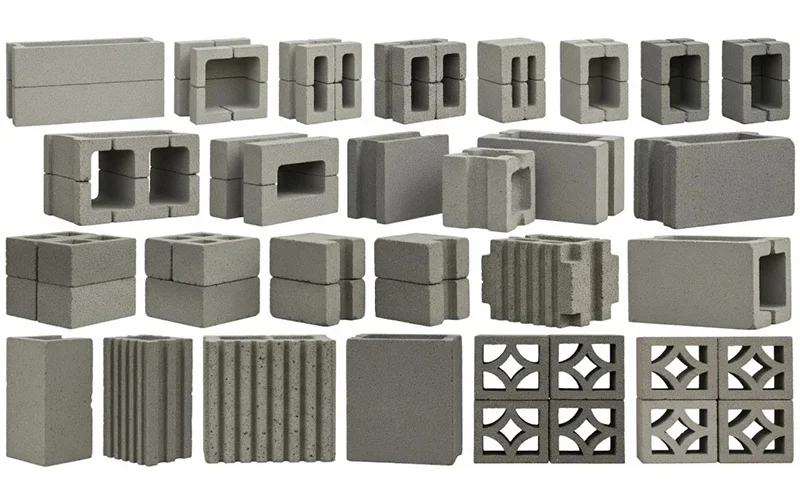

Available products include:

• Hollow Blocks

• Solid Blocks

• Paving Bricks

• Interlocking Bricks

• Curbstones

• Grass Planting Blocks

• Customized Concrete Products

One machine can support multiple construction applications, improving equipment utilisation and production flexibility.

Compatible with Various Raw Materials

Utilise Local Resources Efficiently

The machine can utilise a variety of locally available raw materials, including:

• Cement

• Sand

• Crushed Stone

• Fly Ash

• Slag

• Quarry Dust

• Recycled Construction Waste

Manufacturers can adjust mix designs according to local material availability and product requirements to balance production cost and product performance.

Reference Formula

HS engineers can recommend suitable mix designs based on local raw materials and block strength requirements.

Production Requirements & Operation Guide

Labour Requirements

Efficient Production with a Small Operating Team

The QTY4-15 production line is designed for efficient operation with a relatively small workforce. Depending on factory layout and automation level, the following staffing arrangement is recommended:

Total Labour Required: Approximately 7-8 workers

Note: The pallet feeding operator can be replaced by an automatic pallet feeder, reducing labour requirements further.

Applications

Suitable for Various Construction Projects

The QTY4-15 is widely used for:

• Residential Housing Projects

• Commercial Construction

• Municipal Road Projects

• Landscaping Projects

• Community Infrastructure Development

• Building Material Supply Operations

Its flexibility allows manufacturers to supply a wide range of concrete products for different construction sectors.

Block Curing Guide

Proper Curing for Stronger Concrete Blocks

Correct curing is an important step in achieving stable block strength and long-term product quality.

Under normal conditions, blocks can be removed from pallets after approximately 18-24 hours.

In hot climate regions such as the Middle East and Africa, demoulding time may be significantly reduced depending on temperature conditions.

For best results:

• Keep blocks moist during the first 3-5 days

• Spray water regularly to support hydration

• Continue natural curing for approximately 10-15 days

Under standard curing conditions, blocks gradually reach their designed strength and become ready for construction use.

For customers equipped with a curing room, production efficiency can be further improved and finished blocks may be available in a much shorter period.
