QTY6-15
HS
More Output, More Block Choices, Controlled Investment
The QTY6-15 is designed for block manufacturers who want to increase output, reduce manual work, and produce multiple concrete products without investing in an oversized production system.
From the main block machine to a complete automatic production line, HS configures the equipment around your target output, block types, factory conditions, and investment plan.
QTY6-15 Main Parameter:
| Pallet Size: | 940 × 830 mm | Max. Forming Area: | 890 × 780 mm |
| Forming Height: | 50–200 mm | Cycle Time: | 15–25 sec |
| Vibration Type: | Dynamic-Static Table | Excitation Force: | 70 KN |
| Total Power: | 40 kW | Machine Weight: | 6.5 T |
Is QTY6-15 Right for Your Production?
Choosing a block machine is not only about machine size. The right model should match your orders, labor conditions, product range, and future expansion.
QTY6-15 is a practical choice if you want to:
01. Increase Daily Output: Move from labor-intensive production toward more efficient automatic production.
02. Reduce Labor Dependence: Automate key production steps and reduce repetitive manual handling.
03. Produce More Block Types: Change molds to expand from hollow blocks to solid bricks, paving products, and other concrete products.
04. Build a Complete Line: Start with the right configuration and integrate mixing, conveying, stacking, and handling equipment according to your production needs.
Know Your Output Before You Invest
The value of a block machine is ultimately measured by what you can produce and sell.
QTY6-15 supports different concrete products by changing molds. Output varies according to block size and mold configuration.
| Block Type | Graph | Size | Pcs / Pallet | Output / 8 Hours |
| Standard Brick |  | 240 × 115 × 53 mm | 30 | 57,600 pcs |
| Hollow Block |  | 400 × 150 × 200 mm | 8 | 15,360 pcs |
| Hollow Block |  | 400 × 200 × 200 mm | 6 | 11,520 pcs |
| Paving Brick |  | 200 × 100 × 60 mm | 24 | 38,000 pcs |
| Ripple Paver |  | 225 × 112.5 × 60 mm | 15 | 23,760 pcs |
| I-Shaped Paver |  | 200 × 160 × 60 mm | 15 | 23,760 pcs |
Need output for your own block?
Send us your block dimensions, drawing, or sample photo. We can match the mold and estimate output for your product.
One Machine. More Products to Sell.
Your local market may require different block sizes, shapes, and applications. QTY6-15 can work with different molds to expand your product range.
Custom Molds for Your Market
Send us the block size, drawing, or sample you want to produce. We customize the mold around the product requirements of your local market.
Built for Consistent Automatic Production
01. 70 KN Vibration Forming: Strong and controlled vibration supports consistent compaction during repeated production cycles, helping maintain stable block forming quality.
02. Automatic Pallet Feeding: Smooth pallet feeding supports continuous production and reduces unnecessary interruptions between molding cycles.
03. PLC Automatic Control: Automated production cycles reduce dependence on repeated manual operation and improve production consistency.
04. Hydraulic Forming System: Hydraulic operation works with the vibration system to support stable and repeatable block forming during continuous production.
Build the Line Around Your Business
You don't need to pay for equipment your factory doesn't need. HS can configure the QTY6-15 production line according to:
Target daily output
Block types
Factory space
Automation level
Local labor conditions
Investment budget
Future expansion needs

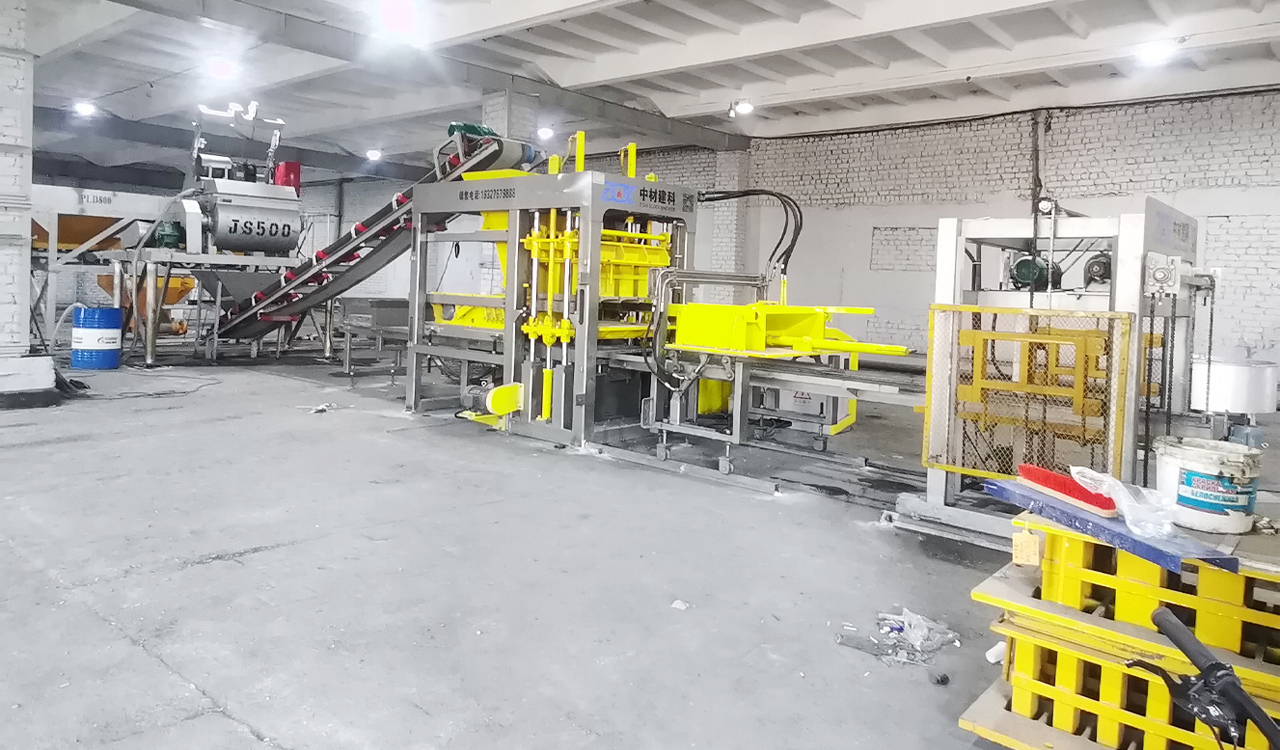

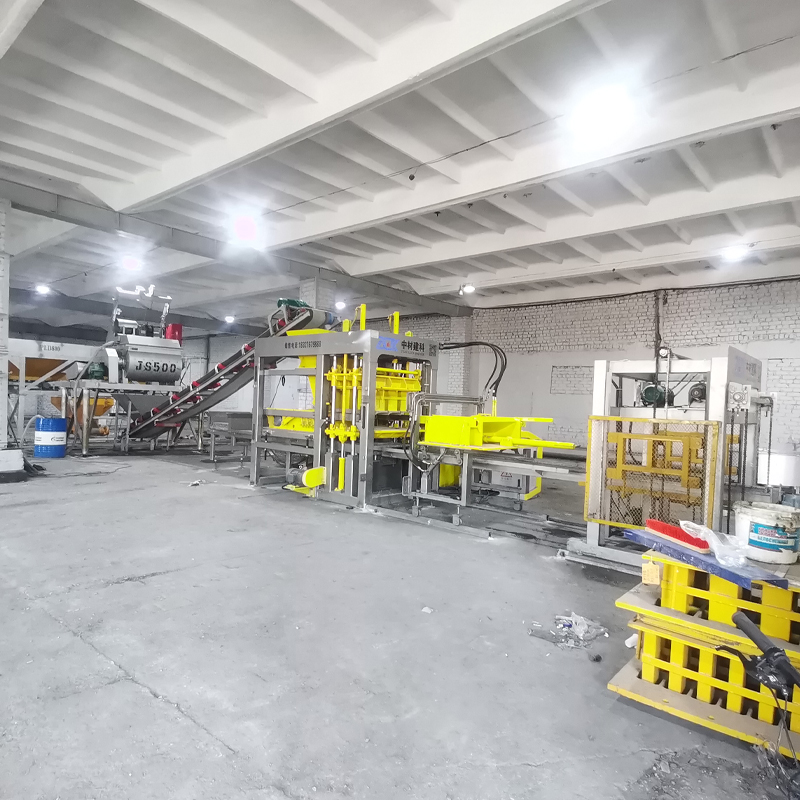

Standard QTY6-15 Line Configuration
| Item | Quantity | Item | Quantity |
| QTY6-15 Block Making Machine | 1 | Belt Conveyor | 1 |
| Automatic Brick Conveyor | 1 | JS500 Concrete Mixer | 1 |
| Automatic Pallet Feeder | 1 | Double Pallet Stacker | 1 |
| Hydraulic Unit | 1 | Manual Hydraulic Forklift | 2 |
| PLC Control System | 1 | One Set of Mold | 1 |
Make QTY6-15 Work for Your Local Market
Buying the machine is only the first step. The real goal is to produce blocks that your market can sell at a cost that makes business sense.
HS supports your project in three important areas.
01. Local Material Analysis & Mix Guidance: Tell us what sand, stone powder, aggregate, cement, fly ash, or other materials are available locally. We provide mix guidance to help reduce unnecessary trial-and-error and support stable block production.
02. Custom Mold Design: Produce the blocks your customers actually buy—not only the blocks supplied by a standard mold.
03. Customized Production Line: Match the equipment investment to your actual capacity, labor, and automation needs instead of overinvesting in unnecessary equipment.
Why Choose HS?
HS service does not stop when the machine leaves the factory.
01. Overseas Repair Service: Our overseas service support helps with equipment inspection, troubleshooting, and repair when technical assistance is needed.
02. Installation Guidance: Installation and commissioning guidance helps shorten the path from equipment arrival to production start-up.
03. Remote Technical Training: We help your operators understand machine operation, parameter adjustment, daily maintenance, and basic troubleshooting.
04. One-Year Warranty & Parts Support: One-year warranty coverage and replacement-parts support help reduce post-purchase operating risk and unnecessary downtime.
Turn Your Equipment Investment Into Production Faster
The right configuration can help you avoid unnecessary equipment costs, reduce labor dependence, expand your product range, and start taking more production orders sooner.
Tell us:
What blocks do you want to produce?
What size are they?
What is your target daily output?
What raw materials are available locally?
How large is your factory or site?
Do you need the main machine or a complete line?
What is your investment range?
Frequently Asked Questions
01. Q: What blocks can QTY6-15 produce?
A: By changing molds, QTY6-15 can produce hollow blocks, solid bricks, paving blocks, interlocking blocks, and other customized concrete products.
02. Q: Can you customize a mold for my local block size?
A: Yes. Send us your block dimensions, drawing, or sample photo. The mold can be designed according to your required product.
03. Q: Can QTY6-15 be supplied as a complete production line?
A: Yes. Mixing, conveying, pallet feeding, block handling, stacking, and other auxiliary equipment can be configured according to the project. The ZCJK standard QTY6-15 package already includes the main machine, mixer, conveyors, PLC, hydraulic system, stacker, and related handling equipment.
04. Q: How do I know the output for my block size?
A: Send us your block dimensions or a sample. Output depends on how many blocks fit each mold cycle and the corresponding forming cycle.
05. Q: Can my local raw materials be used?
A: Share the materials available in your area. HS can provide raw-material and mix-ratio guidance according to the production requirements.
06. Q: Do you provide technical support after delivery?
A: Yes. HS provides installation guidance, remote technical training, overseas repair support, warranty coverage, and replacement-parts service according to the project and service terms.
