Turnkey Block Plant Projects

See How Hs Customers Used Turnkey Solutions to Plan the Plant, Install the Line and Start High-Output Production Faster,

Helping Them Control Costs, Take Larger Orders and Earn More from Every Production Day.

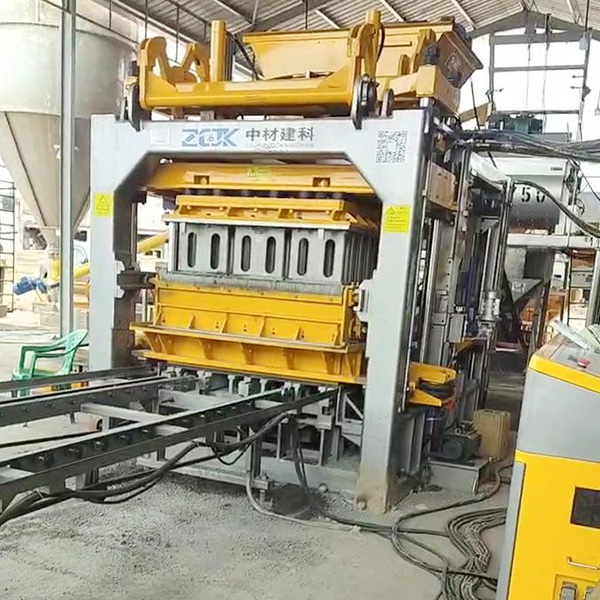

Cameroon QTY9-15 Hollow Block Production Line Project

Turnkey Block Plant Projects

2026-07-31

A Cameroon concrete product supplier needed more capacity for growing hollow block orders but did not require a complex fully automatic plant. HS configured a QTY9-15 simplified production line with automated batching, mixing, conveying, and forming, while keeping transfer and curing flexible. The conventional vibration system matched the customer’s current products, reduced operating complexity, and helped the factory achieve more reliable output with a manageable investment.

Mozambique QTY10-15 Simplified Block Production Line Project

Turnkey Block Plant Projects

2026-07-30

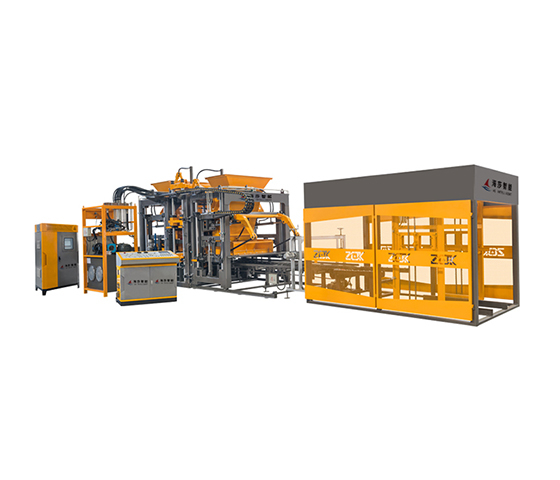

QTY9-15

The QTY9-15 is a fully automatic block-making machine designed for large-scale production in high-capacity block factories.
It features a large vibration and static-pressure forming platform with a vibration force of 100 kN, producing up to 9 hollow blocks or 50 standard solid bricks per cycle to increase daily output and reduce the production cost per block.

The machine has an installed power of approximately 92.98 kW, a pallet size of 1350 × 720 mm, a maximum molding area of 1300 × 670 mm, a standard molding height of 50–200 mm, and optional molding heights of 350 mm or 500 mm, with a cycle time of approximately 12–22 seconds.

By changing molds, it can produce hollow blocks, standard solid bricks, paving bricks, and perforated bricks.

Based on an 8-hour working day, it can produce approximately 17,280 hollow blocks, 108,000 standard solid bricks, 51,840 paving bricks, or 23,040 perforated bricks.

Learn More

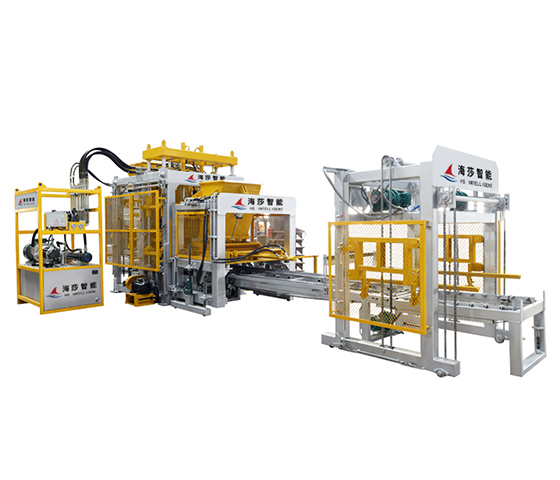

QTY10-15

The QTY10-15 is a fully automatic hydraulic block-making machine designed for large block factories, building material suppliers, and infrastructure projects.

It combines PLC automatic control, hydraulic pressure, and high-frequency vibration molding to maintain consistent block density, strength, and dimensions during continuous production while reducing labor and unit production costs.

The machine has an installed power of 62.7 kW, a pallet size of 1150 × 900 mm, and a molding cycle of approximately 12–22 seconds.

By changing molds, it can produce hollow blocks, solid bricks, paving bricks, interlocking blocks, curbstones, grass blocks, and customized concrete products.

Based on an 8-hour working day, it can produce approximately 21,600 200 mm hollow blocks, 25,920 150 mm hollow blocks, 118,800 solid bricks, or up to 55,440 paving bricks.

Learn More
QTY15-15

The QTY12-15 is a high-capacity fully automatic block-making machine designed for large block factories and infrastructure projects.
It combines automatic control, hydraulic vibration molding, and a heavy-duty frame to reduce labor requirements, maintain consistent block strength and dimensions during continuous production, and lower the production cost per block.

The machine has a main power of approximately 72.7 kW, a vibration force of 130 kN, a pallet size of 1350 × 900 mm, a maximum molding area of 1300 × 850 mm, a molding height of 50–200 mm, and a cycle time of approximately 12–22 seconds.

By changing molds, it can produce hollow blocks, perforated bricks, solid bricks, paving bricks, interlocking blocks, and curbstones.

Based on an 8-hour working day, it can produce approximately 25,920 hollow blocks, 32,400 perforated bricks, 140,400 solid bricks, or 66,528 paving bricks.

Learn More

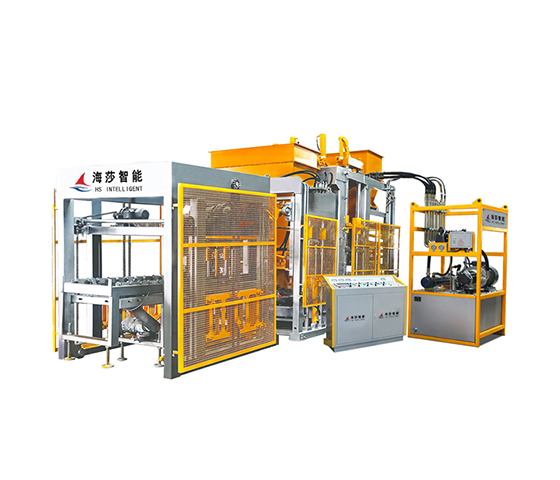

QTY15-15

The QTY15-15 is a high-capacity servo block-making machine designed for large block factories and fully automatic production lines.
It features four-axis servo direct-drive vibration, a combined dynamic and static vibration table, a servo-hydraulic system, and a rapid mold-changing device to improve material feeding and molding accuracy, reduce downtime during mold changes, and maintain consistent block density and dimensions during continuous production.

The machine uses a 1350 × 1150 mm pallet, supports molding heights from 50 to 500 mm, and has a molding cycle of approximately 12–22 seconds.

By changing molds, it can produce hollow blocks, solid bricks, paving bricks, perforated bricks, and other customized concrete products.

Based on an 8-hour working day, it can produce approximately 38,800 hollow blocks, 172,800 solid bricks, 87,120 paving bricks, or 32,400 perforated bricks, making it suitable for customers seeking higher capacity, lower unit production costs, and the ability to handle a wide range of large-volume orders.

Learn More

Blocks You Can Produce

Change the Mold to Produce Different Block Sizes and Styles for Your Local Market.

LEARN MORE

About HS Intelligent Machinery

HS Intelligent Machinery provides concrete block machines and complete production line solutions backed by 24+ years of manufacturing experience, 100,000㎡ of production facilities, patented technologies, and projects in 100+ countries. From individual machines to fully automatic lines, we customize each solution around your target blocks, output, local materials, labor costs, and budget to reduce production costs, avoid overinvestment, start production faster, and help you achieve a quicker return.

Buy the Right Machine

Control Your Investment
Use Local Materials Better

Cut Trial and Material Costs
Make More Block Types

Meet More Customer Demand
Start Earning Sooner

Installation and Operator Training
Keep Production Running

Fast Support and Spare Parts

Certified Quality You Can Trust

Our ISO, Ce and Patent Certifications Prove the Quality, Safety and Reliability Behind Every Hs Block Machine.

Start Your Block Business Today

Tell Us What Blocks You Want to Make and Your Target Output.

We Will Recommend a Practical Machine to Help You Control Costs, Start Production Sooner and Earn from Local Orders.
