JH-12A
HS
The machine moves automatically during production and forms blocks directly on the ground, saving large pallet costs.
Adopts hydraulic transmission and pressure forming technology for stable operation and stronger block density.
The mould vibration frequency reaches 2900 times per minute, ensuring compact and high-strength concrete blocks.
The JH-12A can produce up to 13,600 blocks per 8 hours, suitable for medium-scale production projects.

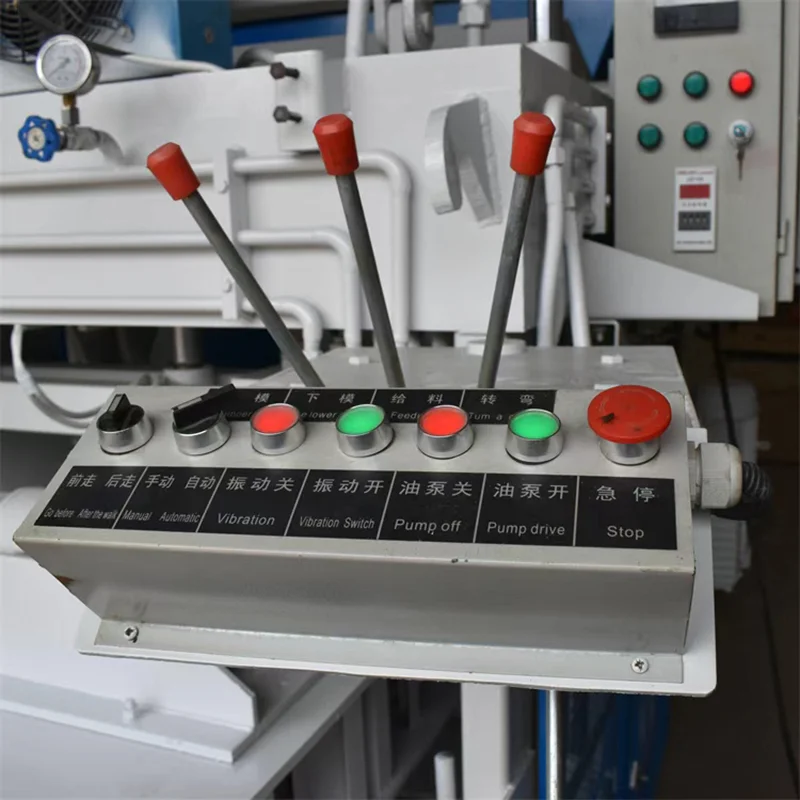

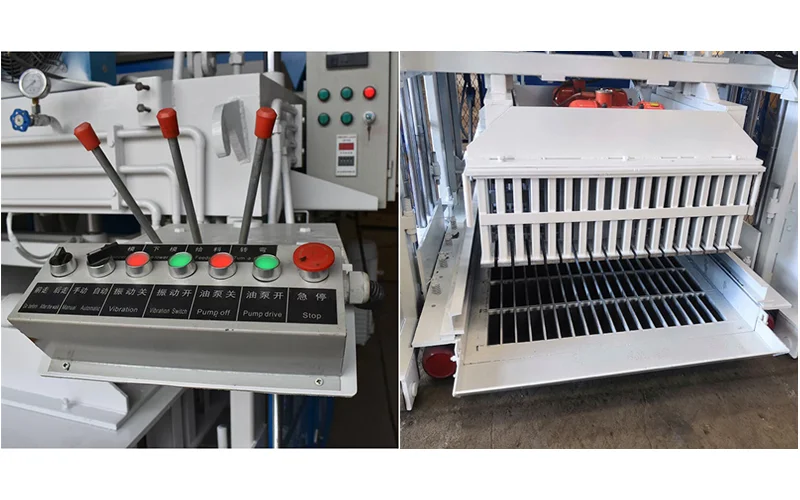

Electric driving and hydraulic steering make the machine simple to operate and easy to maintain.

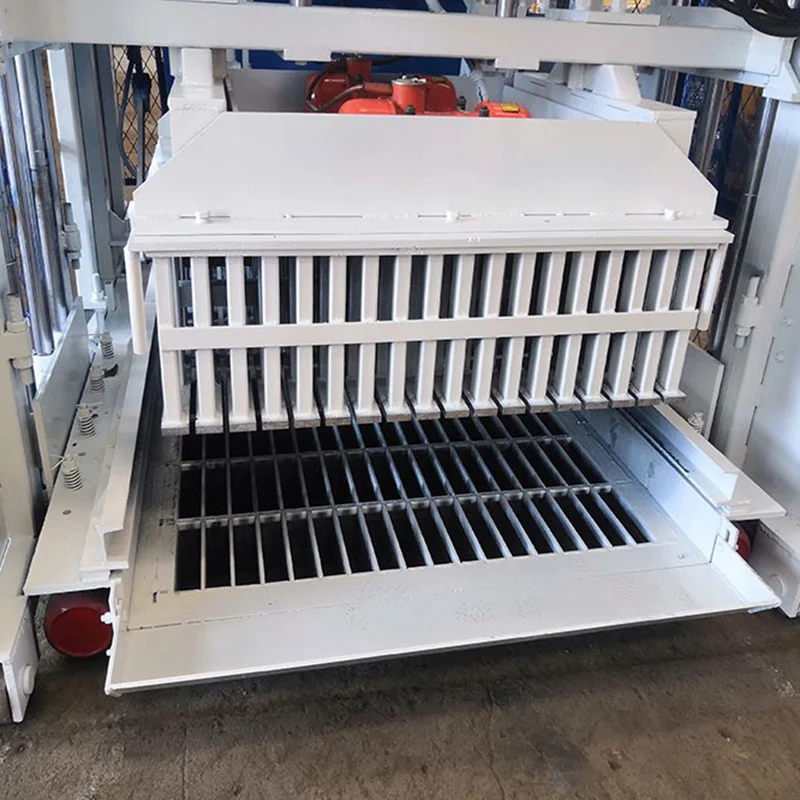

Different moulds can be customised to produce hollow blocks, solid bricks, paver blocks, and curbstones.
Manufactured with high-quality steel and advanced welding technology for long service life and stable performance.

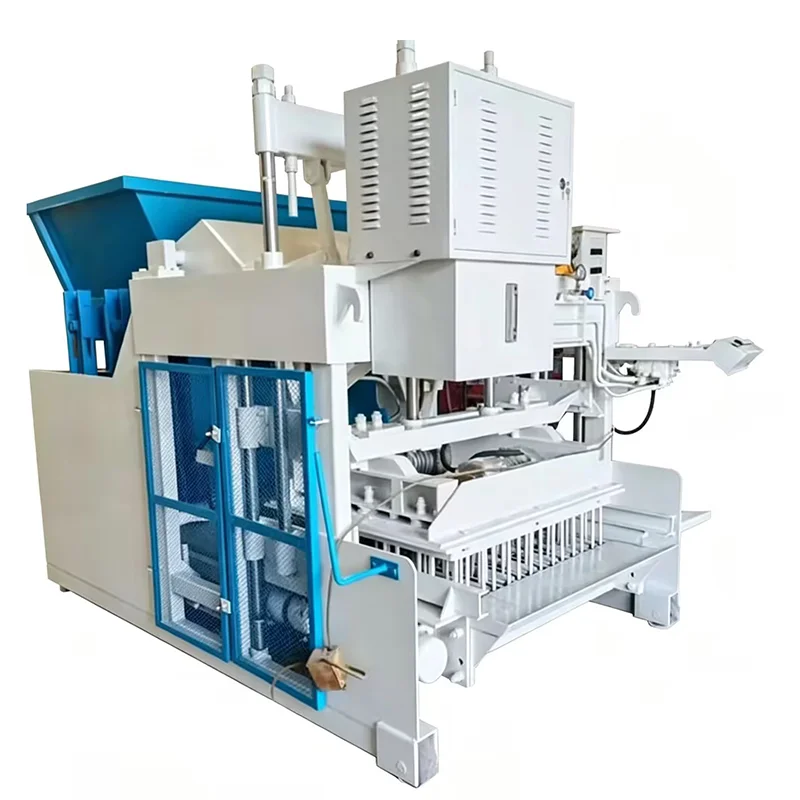

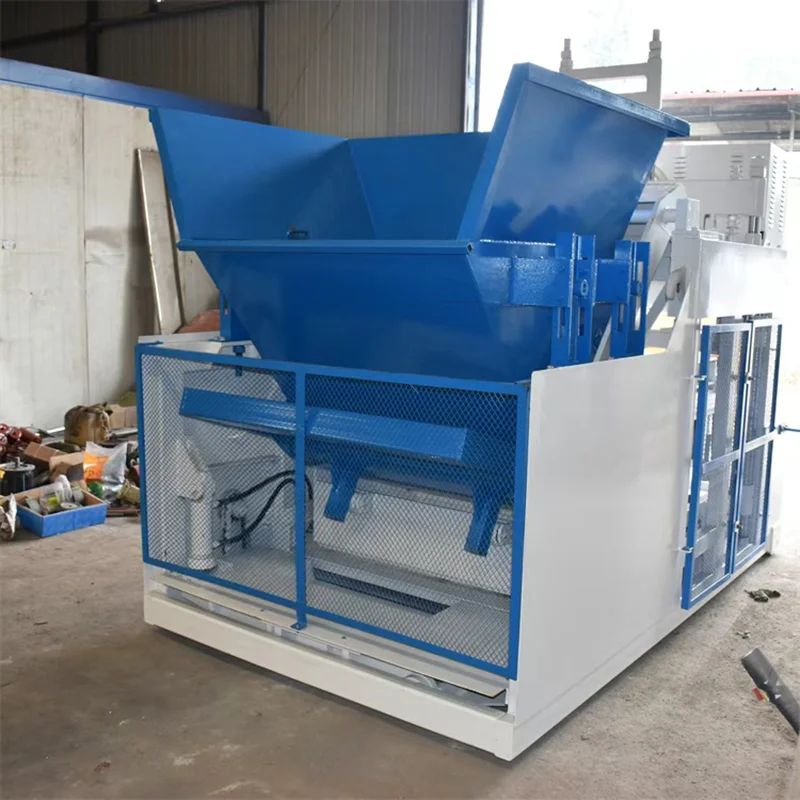

Machine Model | JH-12A | Machine Type | Mobile Hydraulic Brick-Making Machine |
Overall Dimension | 3250 × 2100 × 2350 mm | Hydraulic System Pressure | 16-20 MPa |
Forming Method | Hydraulic + Vibration | Total Power | 19.4 KW |
Machine Weight | 4500 KG | Vibration Frequency | 2900 times/minute |
Transmission Method | Hydraulic Transmission | Standard Block Capacity | 400×200×200 mm / 12 pcs per mould |
Walking Style | Electric Driving + Hydraulic Steering | Production Capacity | 13,600 pcs/8h |
Brick Type | Size (mm) | Quantity/Mould | Daily Capacity |
Hollow Block | 400×200×200 mm | 12 pcs | 13,600 pcs/8h |
Solid Brick | 240×115×53 mm | 26 pcs | 45,000 pcs/day |
Paver Block | 200×100×60 mm | 28 pcs | 18,000 pcs/day |
Actual production capacity may vary according to raw materials and working conditions.
The JH-12A mobile block machine can use various local raw materials, including:
Cement
Gravel
Stone powder
Sand
Fly ash
Coal gangue
Slag
Construction waste
Industrial waste materials
Using local materials helps customers reduce production costs and maximise profits.

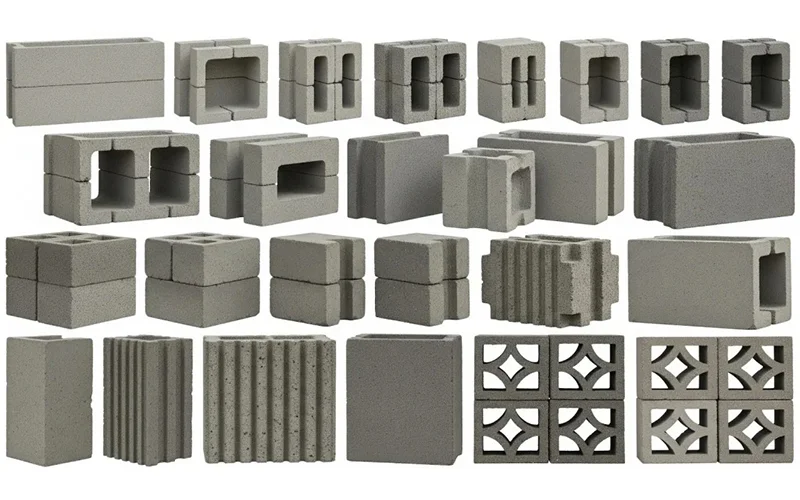

The machine can produce:
Hollow concrete blocks
Solid bricks
Paving blocks
Curbstones
Interlocking blocks
Customised moulds are available according to customer requirements.
Advantage | Description |
No Pallet Required | Reduces Pallet Investment Costs |
Mobile Production | Flexible and Efficient Operation |
Hydraulic Forming | Stronger Block Density And Strength |
High Output | Suitable for Medium-Scale Production |
Easy Maintenance | Simple Structure and Convenient Servicing |
Multi-Purpose Machine | Different Moulds for Different Products |
The JH-12A mobile hydraulic brick-making machine is widely used in:
Block production factories
Construction companies
Government housing projects
Rural infrastructure projects
Road and pavement construction
Startup brick manufacturing businesses

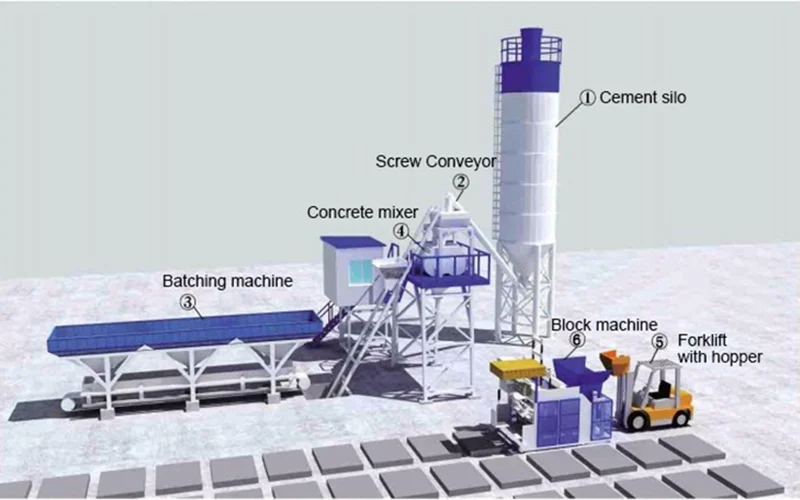

Equipment | Function |
Concrete Mixer | Uniform Raw Material Mixing |
Belt Conveyor | Automatic Material Feeding |
Additional Moulds | Different Brick Production |
Batching Machine | Automatic Material Batching |
More than 20 years of experience in manufacturing brick and block-making machines.
Each machine is tested before delivery to ensure stable operation and reliable performance.
We provide customised moulds and complete production solutions according to customer requirements.
Our machines are exported to Africa, Southeast Asia, South America, and the Middle East.
We provide:
Installation guidance
Online technical support
Spare parts supply
Maintenance training
Long-term after-sales service
No. The JH-12A is a mobile pallet-free brick machine.
Yes. Different moulds can be customised for various block sizes and designs.
The machine can use cement, sand, gravel, fly ash, slag, construction waste, and other local materials.
Yes. The machine adopts electric driving and hydraulic steering for easy operation.
If you want to get the latest quotation, production solution, machine video, or factory layout design, welcome to contact HS Block Machine.
Our professional team will recommend the most suitable block production solution according to your budget and project requirements.
