Small Block Machine Projects

Start Making Blocks with Less Investment and Earn from Local Demand Sooner.

See How Other Customers Used HS Small Block Machines to Turn Local Materials into Saleable Blocks, Control Production Costs and Grow Their Business as Orders Increased.

Guinea QTJ4-40 Hollow Block Machine Project

Small Block Machine Projects

2026-07-30

A first-time block plant investor from Guinea visited the HS factory to verify the machine quality, block-forming results, and long-term technical support before placing an order. HS recommended the QTJ4-40 based on his budget, local materials, workforce, and initial hollow block orders. With manageable investment, simple operation, flexible molds, and continued support, the customer can enter the market with lower risk and start producing saleable blocks sooner.

Vietnam QTY4-15 Hydraulic Block Machine Project

Small Block Machine Projects

2026-07-21

A Vietnamese block producer needed more output for growing orders but was not ready to invest in a large automatic line. HS recommended the QTY4-15 hydraulic block machine, giving the customer stable block quality, practical automation and sufficient capacity at a manageable cost. With ongoing maintenance support from HS, the factory can keep production running and expand step by step as demand grows.

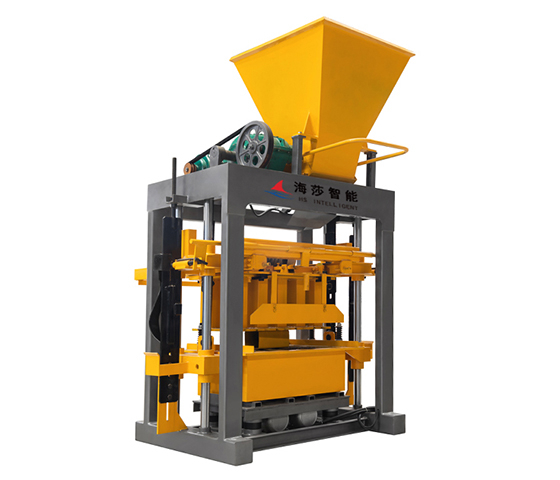

QTJ4-40A

The QTJ4-40A is a versatile block-making machine designed for small block factories and first-time investors.
It uses table vibration molding, with a vibration force of 48 kN, installed power of 9.6 kW, and a pallet size of 860 × 540 mm.

By changing molds, it can produce standard bricks, 6-inch and 8-inch hollow blocks, paving bricks, and other products with heights ranging from 50 to 200 mm.

With a molding cycle of about 60-70 seconds, its estimated 8-hour output is approximately 15,000 standard bricks, 2,880 6-inch hollow blocks, 2,304 8-inch hollow blocks, or 7,000 paving bricks, offering a practical balance of lower investment, flexible production, and stable output.

Learn More

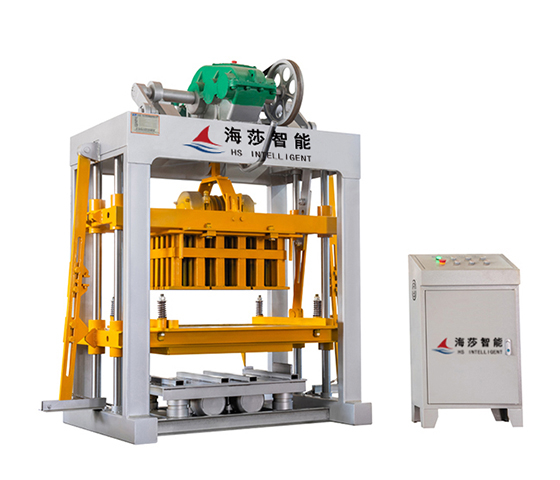

QTJ4-40

The QTJ4-40 is an economical block-making machine designed for small block factories and low-budget startups.

Its simple structure, easy operation, and low requirements for space and labor make it suitable for customers with limited orders or those starting a new block business.

The machine has an installed power of 9.6 kW, a vibration force of 48 kN, and a pallet size of 860 × 540 mm. By changing molds, it can produce standard bricks, 6-inch and 8-inch hollow blocks, paving bricks, and other concrete products with heights from 50 to 200 mm.

Based on an 8-hour working day, it can produce approximately 12,480 standard bricks, 2,400 6-inch hollow blocks, 1,920 8-inch hollow blocks, or 6,000 paving bricks, helping customers meet basic production needs with a lower initial investment.

Learn More
QTJ4-20A

The QTJ4-20A is a fully automatic block-making machine designed for small block factories looking to increase production.
It automatically completes material feeding, molding, and block discharge, helping reduce labor requirements and improve production efficiency. The machine has an installed power of 27.5 kW, a vibration force of 50 kN, a pallet size of 880 × 550 mm, and a molding cycle of only 20–25 seconds.

By changing molds, it can produce standard bricks, 6-inch and 8-inch hollow blocks, paving bricks, and other concrete products. Based on an 8-hour working day, it can produce approximately 30,000 standard bricks, 5,760 6-inch hollow blocks, 4,608 8-inch hollow blocks, or 13,440 paving bricks, making it ideal for customers who want higher output with fewer workers.

Learn More

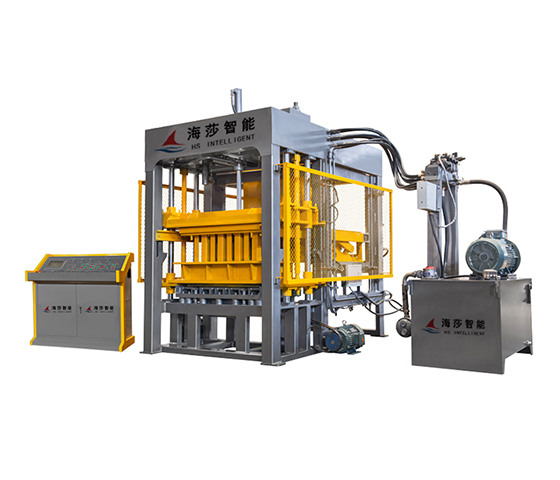

QTY4-15

The QTY4-15 is a fully automatic hydraulic block-making machine designed for small and medium-sized block factories seeking higher output and better block quality.
It combines PLC automatic control, hydraulic pressure, vibration molding, and an automatic material-feeding system to reduce manual operation and produce denser blocks with more consistent dimensions.

The machine has an installed power of 51.2 kW, a vibration force of 68 kN, a pallet size of 1020 × 550 mm, a molding height of 50–200 mm, and a cycle time of approximately 15–25 seconds. By changing molds, it can produce solid bricks, hollow blocks, paving bricks, interlocking blocks, curbstones, and grass blocks.

Based on an 8-hour working day, it can produce approximately 57,600 solid bricks, 9,600 150 mm hollow blocks, 7,680 200 mm hollow blocks, or 23,040 paving bricks.

Learn More

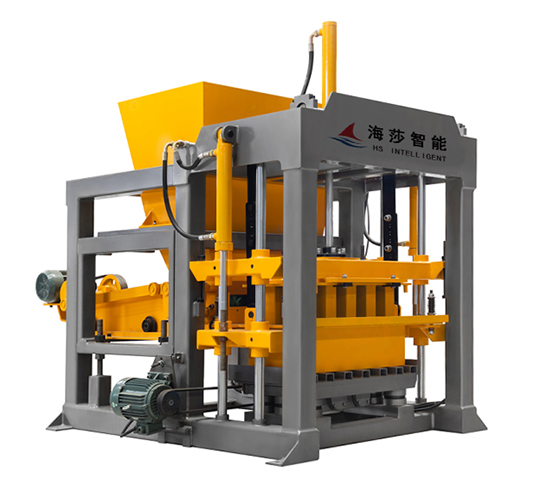

QTY4-18

The QTY4-18 is a compact, fully automatic block-making machine designed for small and medium-sized block factories seeking higher production capacity.
It features PLC automatic control, hydraulic vibration molding, and precise mold positioning, automatically completing material feeding, molding, and block discharge to reduce labor requirements while ensuring consistent block density and dimensions.
The machine has a main power of approximately 34 kW, a vibration force of 60 kN, a pallet size of 880 × 550 mm, a maximum molding area of 820 × 510 mm, a molding height of 50–200 mm, and a cycle time of approximately 20–25 seconds.
By changing molds, it can produce standard solid bricks, 6-inch and 8-inch hollow blocks, paving bricks, interlocking blocks, curbstones, and grass blocks.
Based on an 8-hour working day, it can produce approximately 41,600 standard solid bricks, 8,000 6-inch hollow blocks, 6,400 8-inch hollow blocks, or 20,160 paving bricks.

Learn More

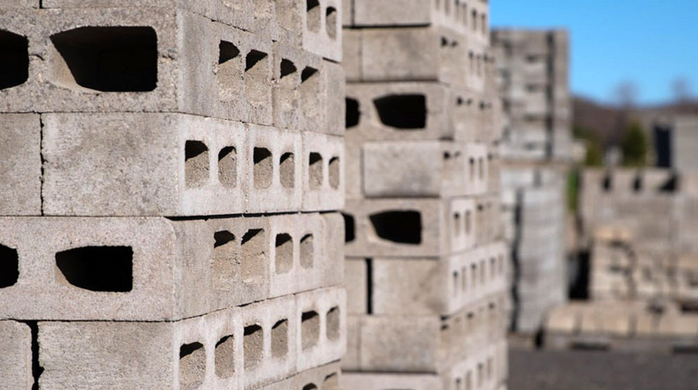

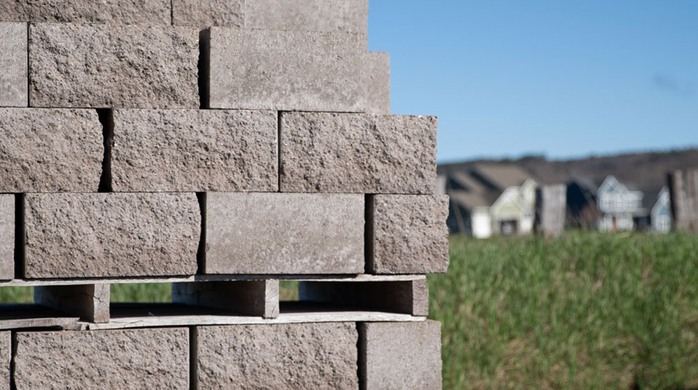

Blocks You Can Produce

Change the Mold to Produce Different Block Sizes and Styles for Your Local Market.

LEARN MORE

About HS Intelligent Machinery

HS Intelligent Machinery provides concrete block machines and complete production line solutions backed by 24+ years of manufacturing experience, 100,000㎡ of production facilities, patented technologies, and projects in 100+ countries. From individual machines to fully automatic lines, we customize each solution around your target blocks, output, local materials, labor costs, and budget to reduce production costs, avoid overinvestment, start production faster, and help you achieve a quicker return.

Buy the Right Machine

Control Your Investment
Use Local Materials Better

Cut Trial and Material Costs
Make More Block Types

Meet More Customer Demand
Start Earning Sooner

Installation and Operator Training
Keep Production Running

Fast Support and Spare Parts

Certified Quality You Can Trust

Our ISO, Ce and Patent Certifications Prove the Quality, Safety and Reliability Behind Every Hs Block Machine.

Start Your Block Business Today

Tell Us What Blocks You Want to Make and Your Target Output.

We Will Recommend a Practical Machine to Help You Control Costs, Start Production Sooner and Earn from Local Orders.
