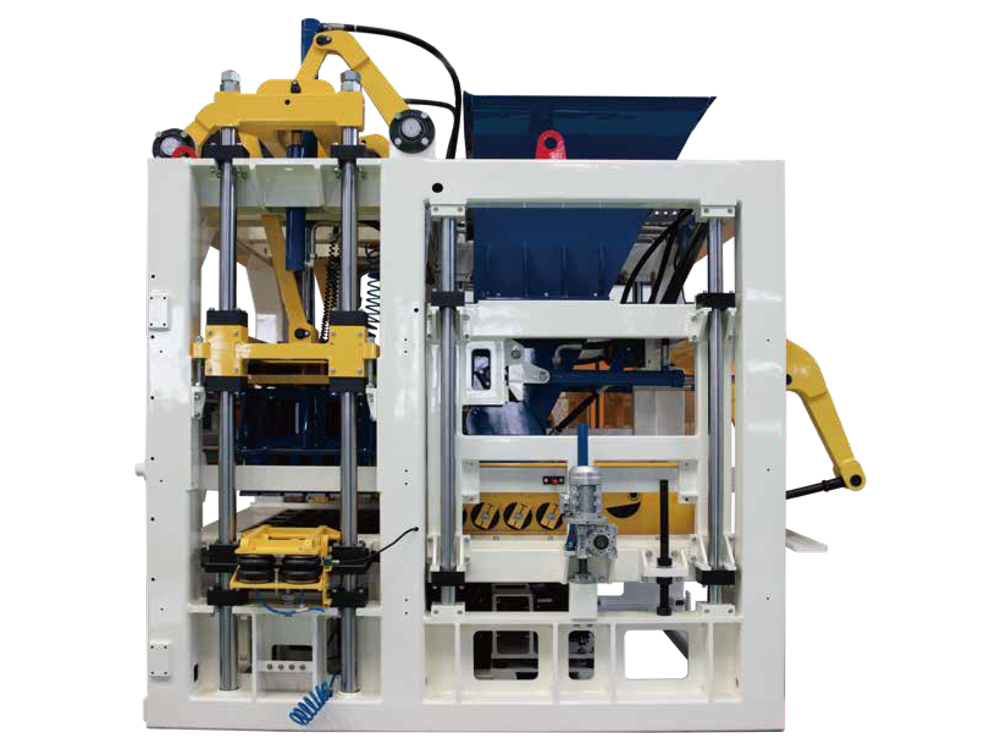

HS900 Fully automatic block making machine

Availability:
Quantity:

Product Parameters

Main technical parameters
Capacity list
Pallet size1350×720mm
Block type
Block sizePcs/PalletOutput/8hrs
Molding height50-500mmHollow block

390×190×190mm

(400×200×200)mm

9pcsApprox.17280pcs/243m³
Solid block240×53×115mm50pcsApprox.108000pcs/158m³
Pavement brick200×100×60mm36pcsApprox.51840pcs/1037㎡
Porous block240×115×90mm20pcsApprox.38400pcs/95m³

1. Dynamic and static combined vibration table
2. Secondary fabric machine hydraulic lifting module
3. Aggregate rack lifting system
4. Waste clearance of the rear material car
5. NM400 wear-resistant plate under the rear material car
6. Detachable feeding device
7. Quick mold change device
8. Material car cylinder buffer device
9. Parker servo hydraulic gear pump from the United States
10. Airbag clamping device
11. Separation of strong and weak electricity
12. Upper pressing vibration module
13. Four-axis servo direct drive motor
14. Blade cooler
15. Hydraulic servo motor
16. Hydraulic station oil circuit compensation motor
17. Expanding sleeve
18. Self-lubricating bearing
19. Belt-type brick machine
20. Double crank secondary fabric feeding machine
21. Tank chain fixing
