| Quantity: | |
|---|---|
QTY4-10
HS

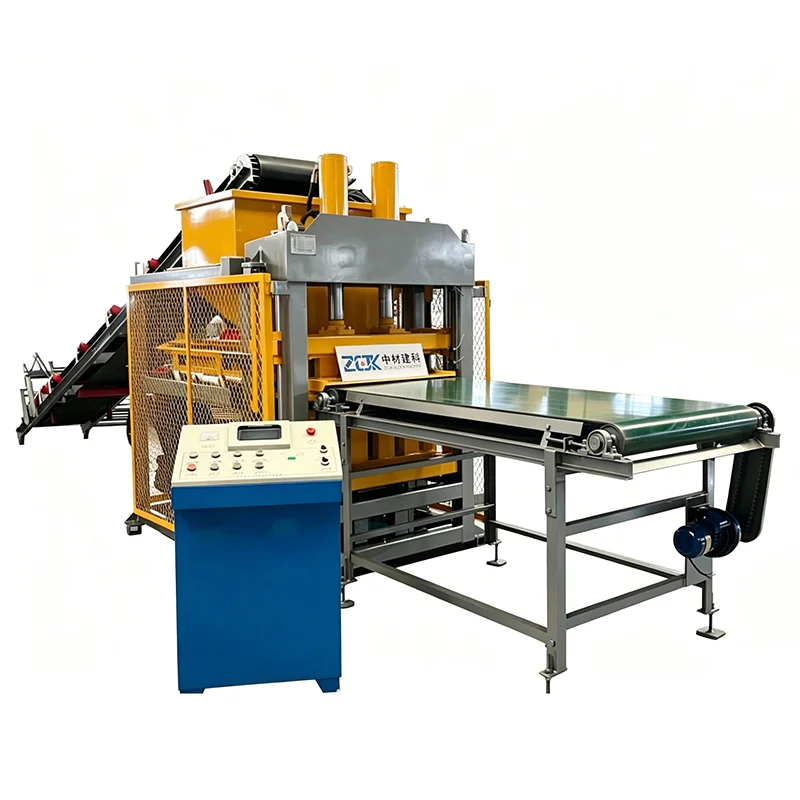

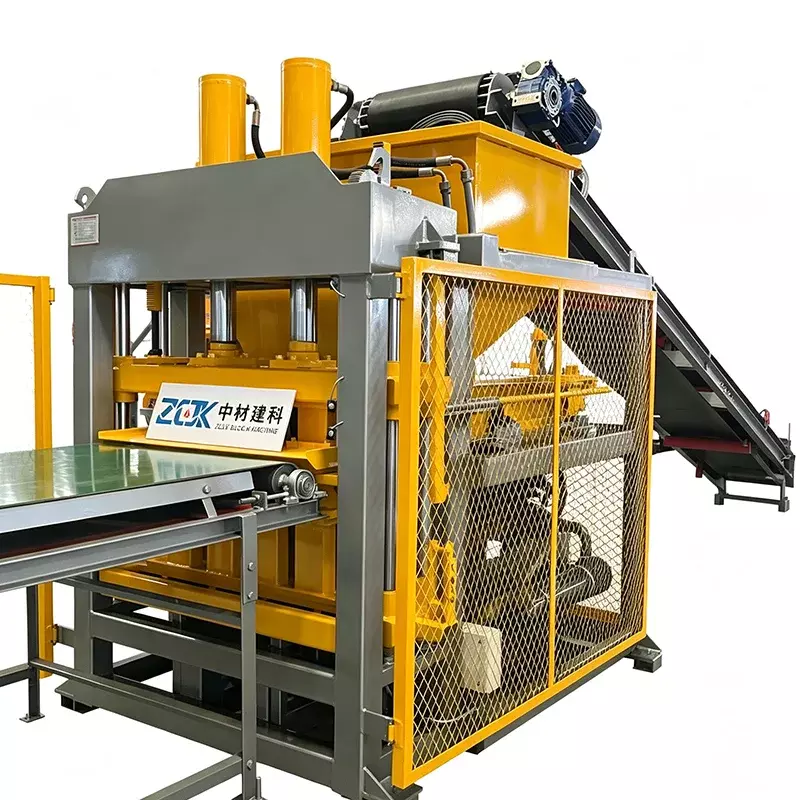

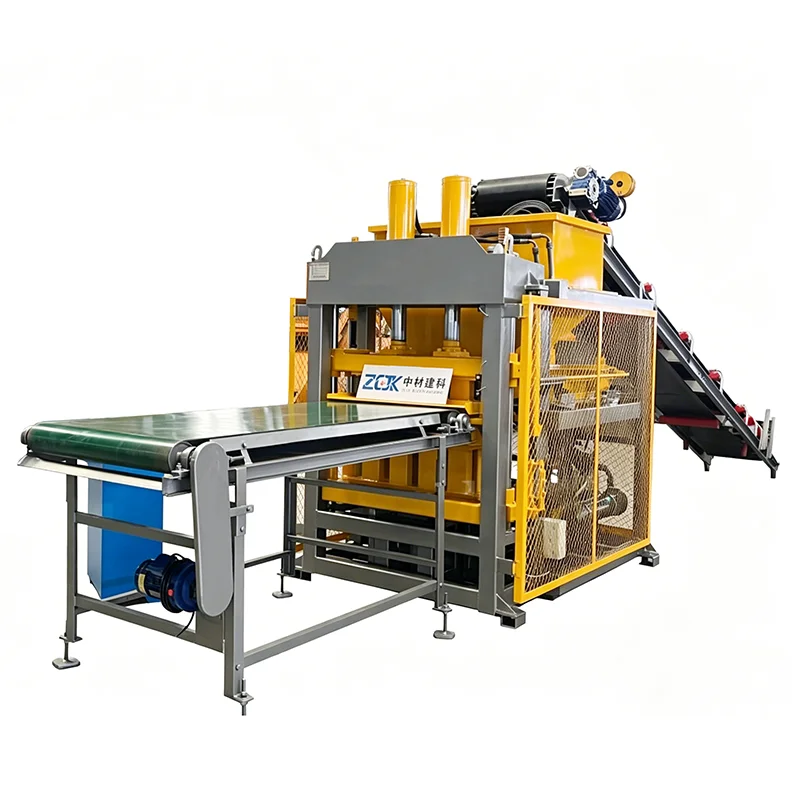

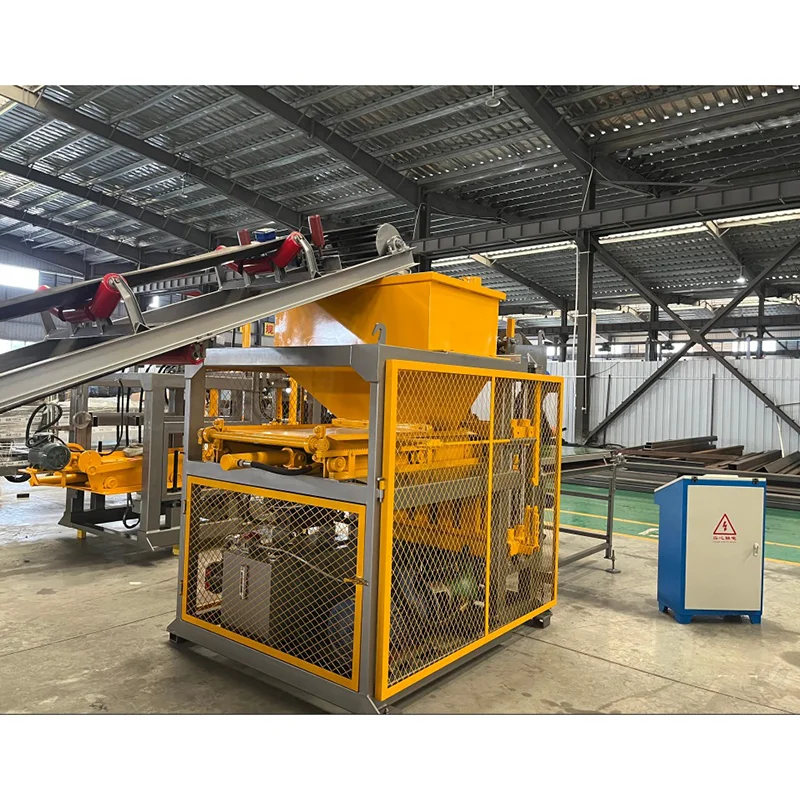

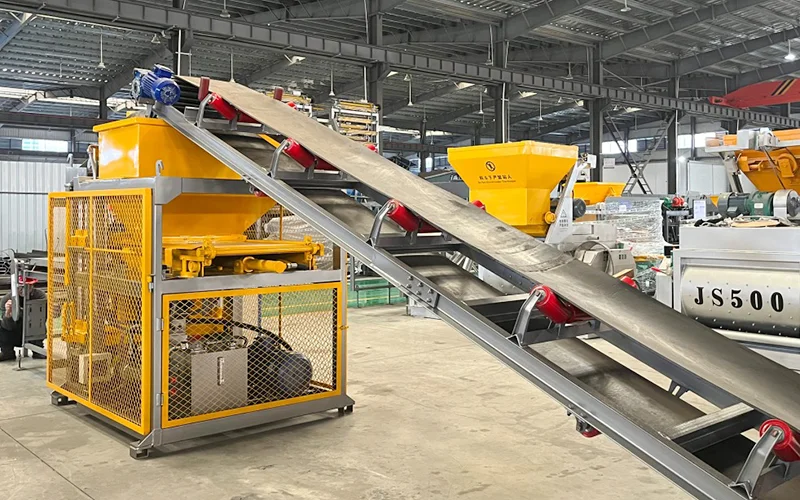

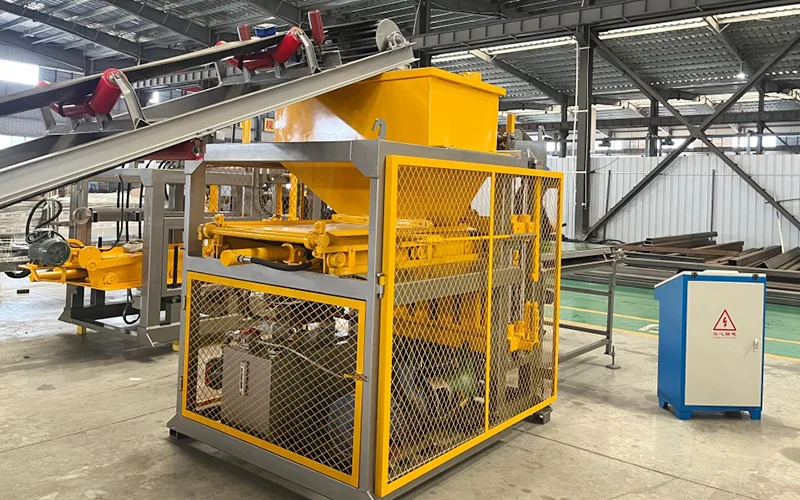

The 4-10 Automatic Hydraulic Clay Brick Machine is one of our hot-selling clay brick production machines. Equipped with a reliable hydraulic pressure system and PLC control technology, the machine can produce various interlocking clay bricks, soil bricks, and compressed earth blocks. The finished bricks feature high density, strong compressive strength, accurate dimensions, beautiful appearance, and long service life.
Machine Model | 4-10 Automatic Clay Brick Machine | Forming Method | Hydraulic Pressure Forming |
Hydraulic Pressure | 32 MPa | Main Power | 11 KW |
Production Capacity | 6,000 pcs/day | Mould Capacity | 4 pcs/mould |
Cycle Time | 20 Seconds | Machine Weight | 1.6 Tons |
Machine Dimension | 2260 × 1500 × 2380 mm | Required Container | 1 × 20GP |
Raw Materials | Clay, Soil, Cement, Sand, Fly Ash | Brick Type | Interlocking Clay Brick / Soil Brick |
Items | pcs/mould | Cycle Time | Production Capacity |
Interlocking Clay Brick | 4 | 20S | 6000pcs/day |
Production output may vary depending on raw materials, operator skill, and working hours.

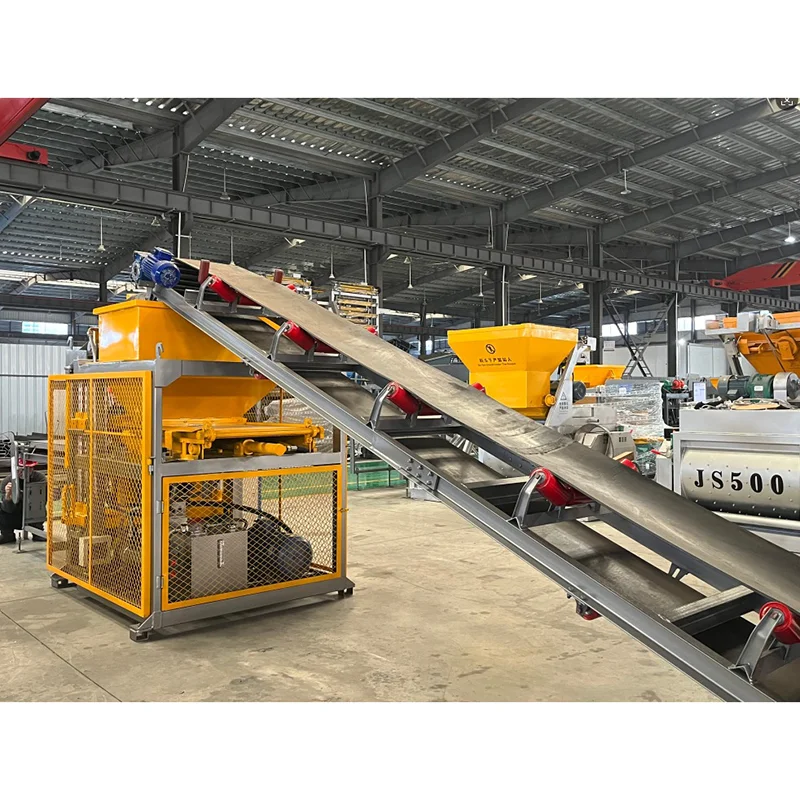

No. | Equipment Name | Function |
1 | 4-10 Hydraulic Clay Brick Forming Machine | Main Machine for Interlocking Clay Brick Production |
2 | Brick Conveyor Platform | Collects and Transfers Finished Bricks |
3 | PLC Control System | Controls the Entire Production Process |
4 | Belt Conveyor | Transfers Raw Materials to the Mixer and Host Machine |
5 | JW500 Mixer | Mixing Raw Materials |
6 | Free Brick Mould | Produces Customized Brick Shapes and Sizes |

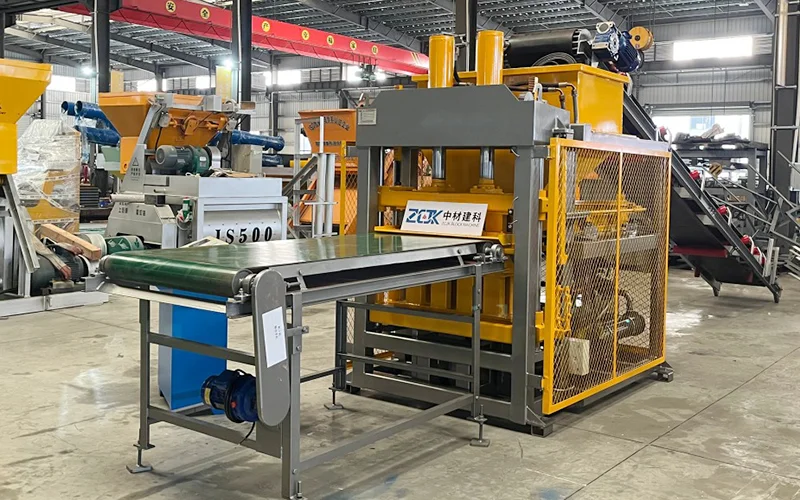

The machine adopts a high-pressure hydraulic forming structure with 32MPa hydraulic pressure, ensuring stronger brick density, high compressive strength, and excellent brick consistency.
The integrated PLC control system simplifies operation and improves production efficiency. One operator can easily manage the production process.
Interlocking bricks feature strong pressure resistance, accurate dimensions, and excellent locking performance, reducing mortar usage during construction.
The machine supports local clay and soil materials, helping customers save raw material and transportation costs.
The entire production line occupies less space, making it suitable for small and medium-sized factories or rural production projects.
The machine frame is manufactured with high-strength steel and advanced welding technology, ensuring long service life and stable operation.
Different brick moulds can be customised according to customer requirements, including interlocking bricks, hollow bricks, solid bricks, and paving blocks.
The 4-10 clay brick machine can use various local materials:
Clay
Soil
Cement
Sand
Fly ash
Construction waste powder
Laterite soil
The flexible raw material formula helps customers reduce production costs and maximise local resource utilisation.

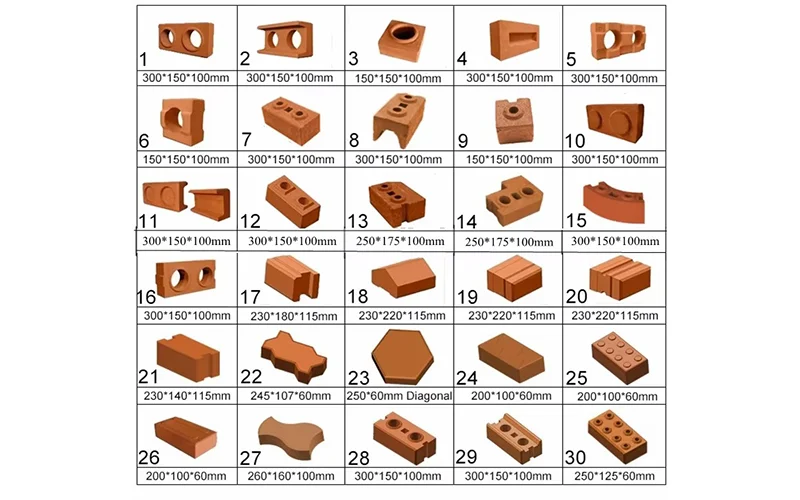

The machine can produce:
Interlocking clay bricks
Compressed earth blocks
Soil cement bricks
Hollow clay bricks
Solid bricks
Paving bricks
Customised moulds are available according to the customer's brick size and market requirements.
To build a more efficient and complete production line, the following optional machines are available:
Optional Equipment | Function |
Crusher | Crushes Large Raw Materials |
Clay Siever | Screens Raw Materials Evenly |
Additional Belt Conveyor | Transfers Raw Materials Automatically |
Additional Brick Moulds | Produces Different Brick Designs |
The 4-10 hydraulic clay brick machine is widely used in:
Building material factories
Government housing projects
Rural construction projects
Affordable housing programs
Small and medium brick plants
Road and landscape projects
African and Southeast Asian construction markets
HS Block Machine has extensive experience in block and brick making machine manufacturing and exports machines to customers worldwide.
Our engineering team provides machine layout design, mould customisation, installation guidance, and technical support.
Every machine undergoes strict inspection and testing before shipment to ensure stable operation and reliable performance.
Our machines have been exported to Africa, Southeast Asia, the Middle East, and South America.
We provide:
Machine recommendation
Factory layout design
Installation support
Operator training
Spare parts supply
After-sales technical service
Standard production lead time is approximately 20 working days after receiving the deposit.
HS Block Machine provides comprehensive after-sales support including:
Online installation guidance
Video technical support
Spare parts support
Machine maintenance guidance
Long-term technical consultation
The machine can use clay, soil, sand, cement, fly ash, and other local materials.
Yes. Different moulds can be customised according to your brick size requirements.
Yes. The PLC control system makes operation simple and suitable for new operators.
Yes. We provide online technical guidance and installation support.
The machine warranty period is one year.
If you want to get the latest quotation, brick samples, factory layout, or production solution, welcome to contact HS Block Machine.
Our professional team will recommend the most suitable clay brick production solution according to your market and budget requirements.
