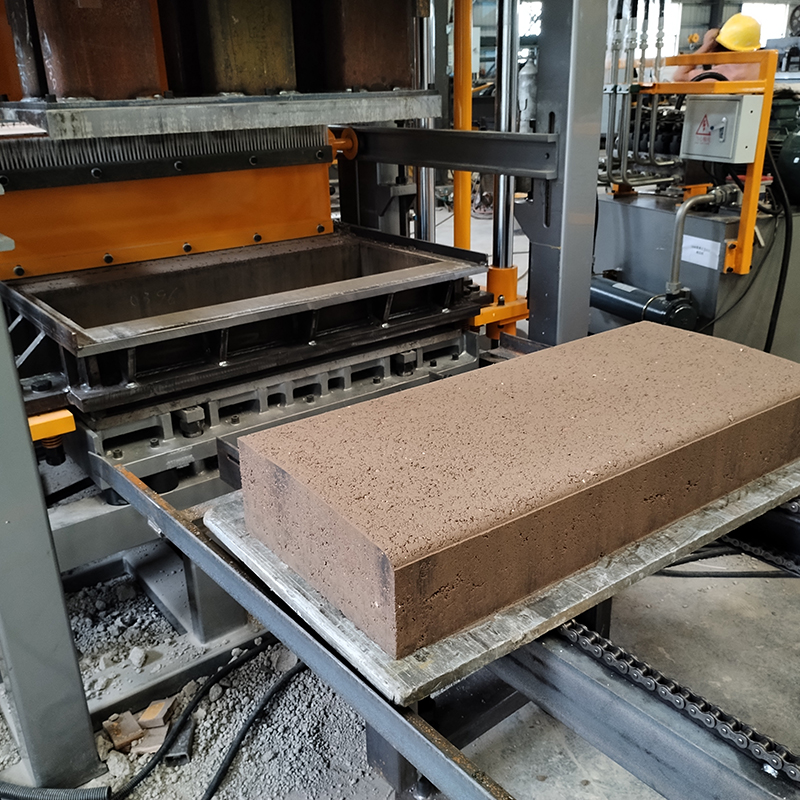

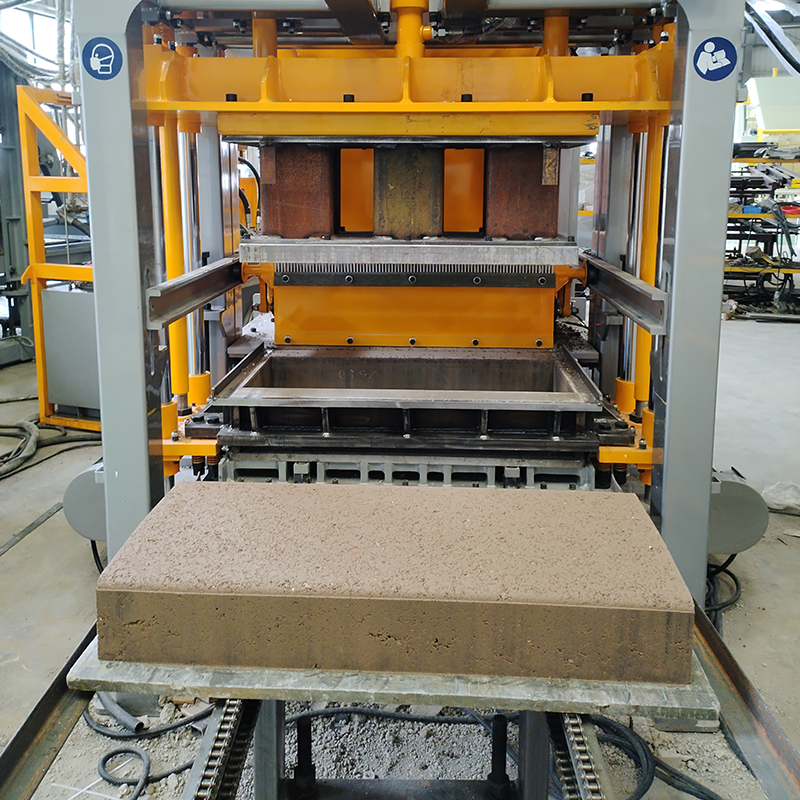

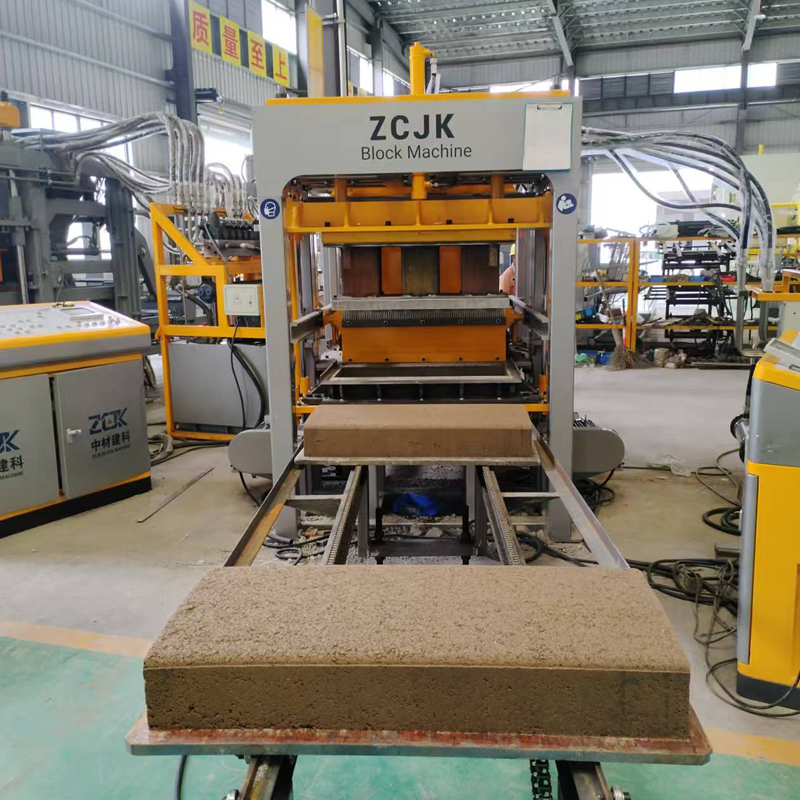

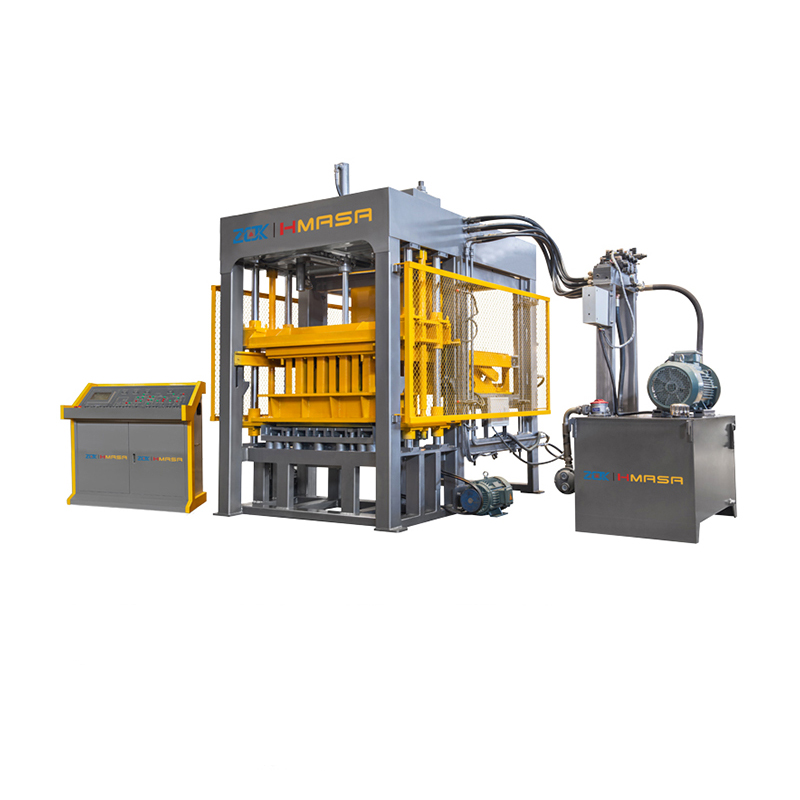

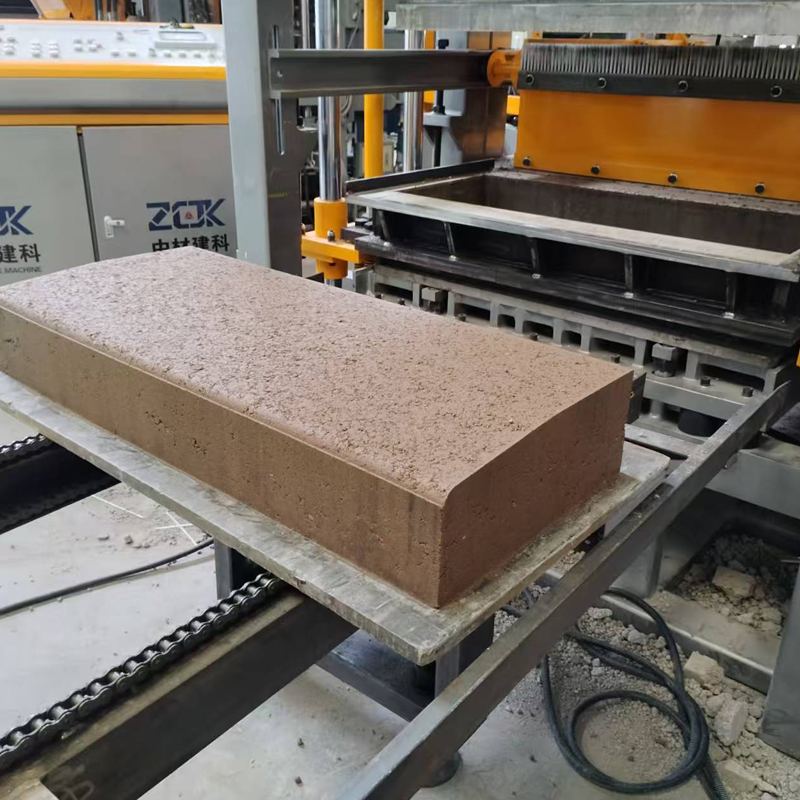

QTY5-15
HS
The QTY5-15 adopts an intelligent PLC automatic control system, enabling automatic feeding, molding, vibration, pallet conveying, and brick discharging. The operation is simple, stable, and highly efficient.
Dual high-power vibration motors generate powerful vibration force, ensuring compact forming and high-strength concrete blocks.
Vibration Motor: 5.5KW × 2
Vibration Frequency: 3800-4500 r/min
Excitation Force: 72KN
The hydraulic station provides stable pressure and smooth operation, improving molding quality and extending machine service life.
Hydraulic Power: 11KW
Oil Pump Model: PV2R2-65-FR
Rated System Pressure: 8MPa
With a molding cycle of only 15-23 seconds, the QTY5-15 can produce various types of concrete products efficiently to meet large production demands.
By changing molds, the machine can produce:
Hollow blocks
Solid bricks
Interlocking pavers
Curbstones
Multi-hole bricks
Colored pavement bricks
Technical Parameters of QTY5-15
Item | Specification |
|---|---|
Model | QTY5-15 |
Total Power | 27.9 KW |
Vibration Motor | 5.5 KW × 2 |
Material Feeder Motor | 2.2 KW |
Belt Conveyor Motor | 2.2 KW |
Brick Discharging Motor | 1.5 KW |
Hydraulic Station Power | 11 KW |
Molding Cycle | 15-23 Seconds |
Vibration Frequency | 3800-4500 r/min |
Excitation Force | 72 KN |
Amplitude | 15 mm |
Machine Size | 2180×1660×2560 mm |
Total Weight | 3.68 T |
Pallet Size | 1120×580×(20-35) mm |
Oil Pump | PV2R2-65-FR |
Rated Pressure | 8 MPa |
Hopper Capacity | 500 L |
Maximum Product Height | 220 mm |
Belt Conveyor Size | 6 m × 0.5 m |
Production Capacity
Product Type | Brick Size (mm) | Quantity Per Pallet | Molding Cycle | Production Capacity (10 Hours) |
|---|---|---|---|---|
Standard Brick | 240×115×51 | 34 pcs | 18 s | 54,000 pcs |
Multi-hole Brick | 240×115×90 | 20 pcs | 18 s | 25,000 pcs |
Hollow Block | 390×190×190 | 5 pcs | 20 s | 2,100 pcs |
Colored Paver | 200×100×60 | 20 pcs | 24 s | 24,000 pcs |
Curbstone | 900×300×120 | 1 pc | 60 s | 600 pcs |
High-density block production
Fully automatic operation reduces labor cost
Stable hydraulic and vibration system
Easy mold replacement for different block types
Durable structure with long service life
Suitable for large-scale brick factories
Energy-saving and efficient production
The QTY5-15 block machine can use a wide range of raw materials, including:
Cement
Sand
Stone dust
Fly ash
Slag
Gravel
Construction waste
Concrete mixtures
This helps customers reduce production costs while promoting environmentally friendly building material production.
The QTY5-15 automatic block making machine is widely used for:
Residential construction projects
Commercial buildings
Road paving projects
Municipal engineering
Infrastructure construction
Landscaping and garden paving
If you want to increase your brick production capacity while maintaining stable product quality and reducing labor costs, the QTY5-15 can provide you with a more efficient and reliable production solution. With its fully automatic operating system, powerful vibration technology, and stable hydraulic performance, you can produce stronger and more uniform concrete blocks with smoother daily operation and higher production efficiency.
Whether you are producing hollow blocks, solid bricks, paving bricks, or curbstones, the QTY5-15 allows you to quickly adapt to different market demands simply by changing molds, helping you expand your product range without investing in multiple machines. Its fast molding cycle and stable running performance also help you shorten production time, improve output, and reduce unnecessary downtime during daily operation.
The machine is designed to make your production process easier, more stable, and more cost-effective, so you can focus on growing your business, improving profitability, and supplying high-quality concrete products to your market with confidence.
