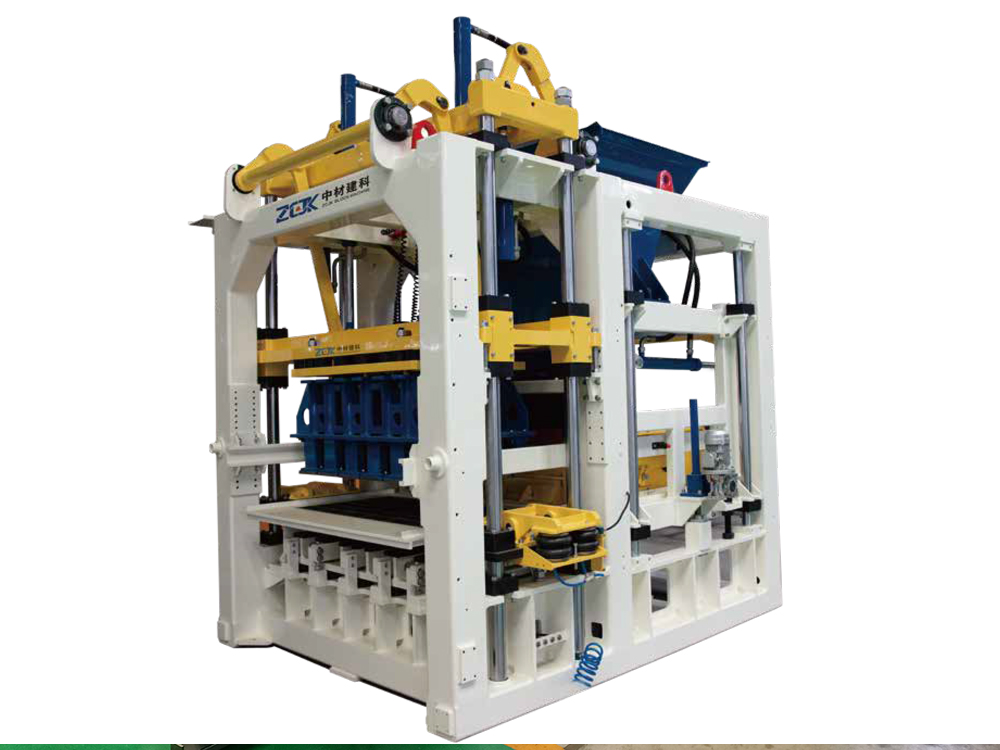

HS1200 Fully automatic block making machine

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Parameters

Main technical parameters		Capacity list
Pallet size	1350×900mm	Block type	Block size	Pcs/Pallet	Output/8hrs
Molding height	50-500mm	Hollow block	390×190×190mm (400×200×200)mm	12pcs	Approx. 23040 pcs/324m³
		Solid block	240×53×115mm	65pcs	Approx.140400 pcs/205m³
		Pavement brick	200×100×60mm	42pcs	Approx. 60480 pcs/1210㎡
		Porous block	240×115×90mm	30pcs	Approx. 56700 pcs/143m³

1. Dynamic and static combined vibration table
2. Secondary fabric machine hydraulic lifting module
3. Aggregate rack lifting system
4. Waste clearance of the rear material car
5. NM400 wear-resistant plate under the rear material car
6. Detachable feeding device
7. Quick mold change device
8. Material car cylinder buffer device
9. Parker servo hydraulic gear pump from the United States
10. Airbag clamping device
11. Separation of strong and weak electricity
12. Upper pressing vibration module
13. Four-axis servo direct drive motor
14. Blade cooler
15. Hydraulic servo motor
16. Hydraulic station oil circuit compensation motor
17. Expanding sleeve
18. Self-lubricating bearing
19. Belt-type brick machine
20. Double crank secondary fabric feeding machine
21. Tank chain fixing
