Hollow Block Molds
HS
Every block production line has its own requirements. Block dimensions, cavity layouts, machine configurations, and production needs can vary from one project to another. Choosing the right hollow block mold is therefore about more than matching the shape of a finished block—it also means getting the mold structure and machine interface right.
HS provides hollow block molds for concrete block making machines, with customization options based on your block specifications and equipment requirements. Whether you are replacing an existing mold or preparing to produce a new block design, we work with you to identify the key dimensions and structural details before manufacturing begins.
Our approach is straightforward: understand your production needs, confirm the mold design, and manufacture according to the agreed specifications.

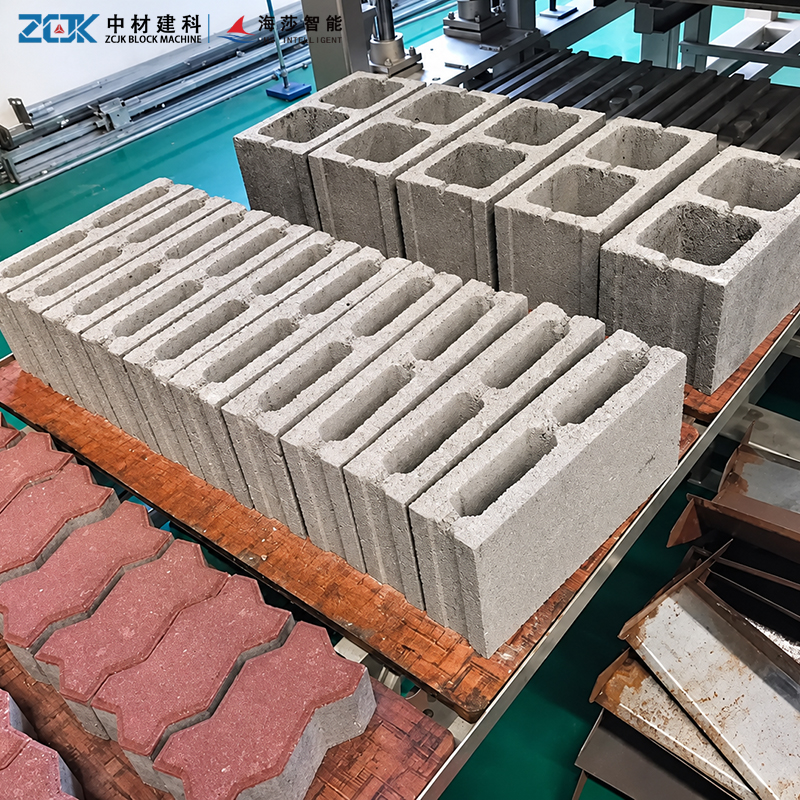

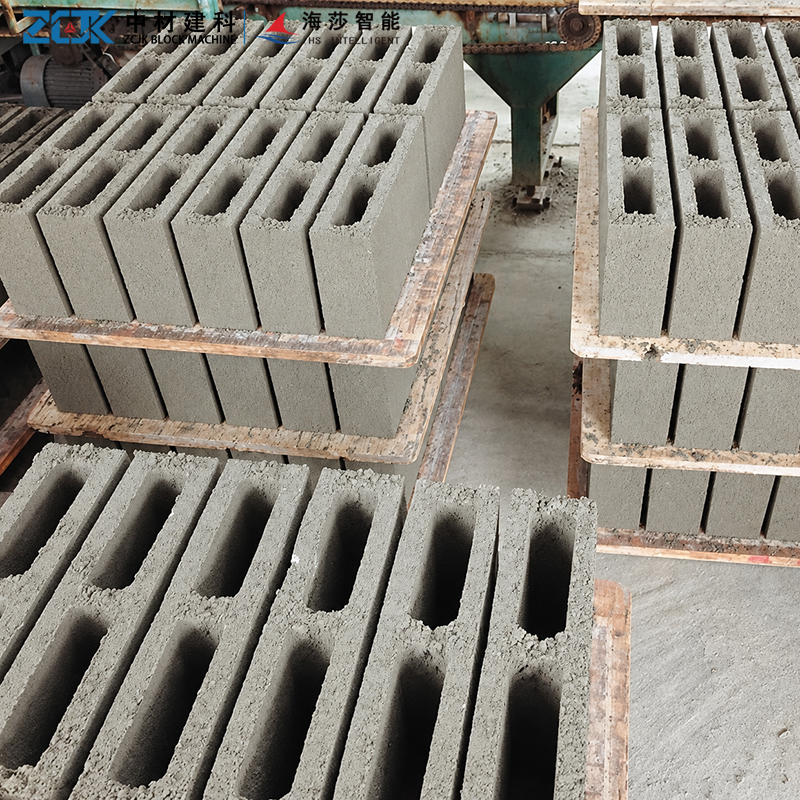

Hollow concrete blocks are formed with internal cavities created by the mold cores during production. The number, shape, spacing, and dimensions of these cavities determine the internal geometry of the finished block.

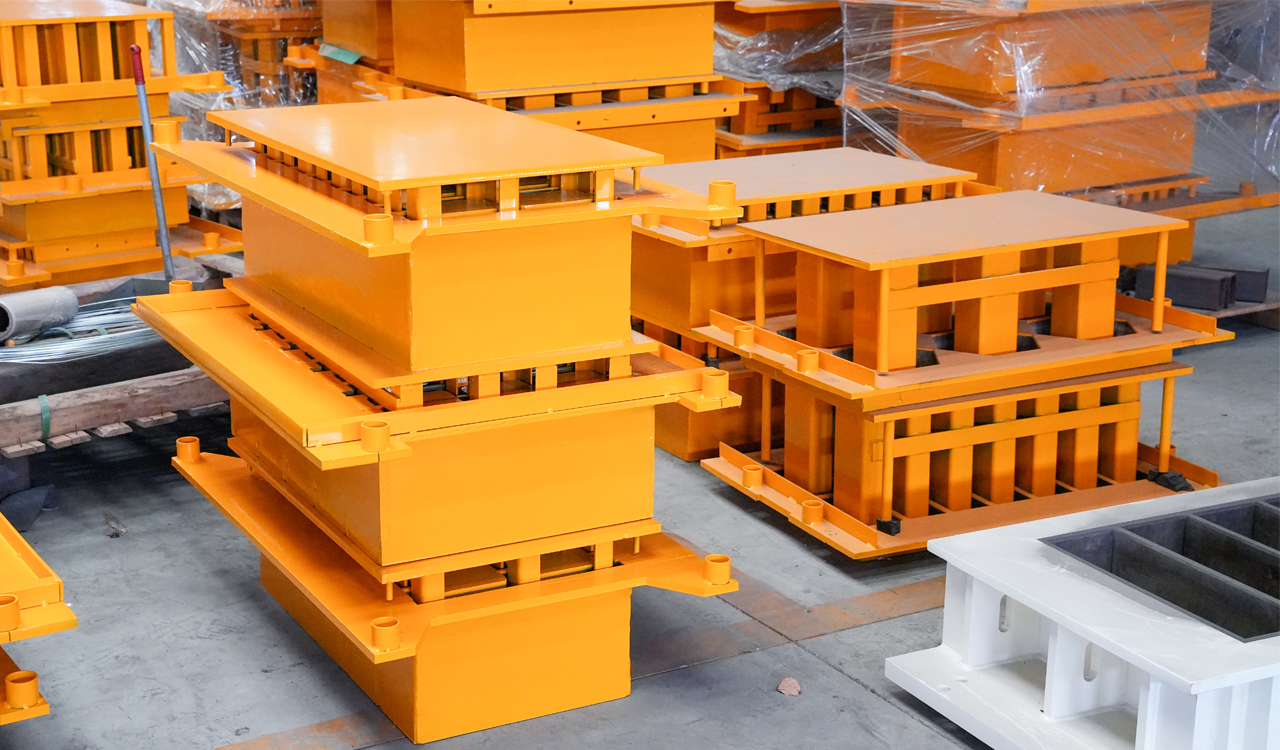

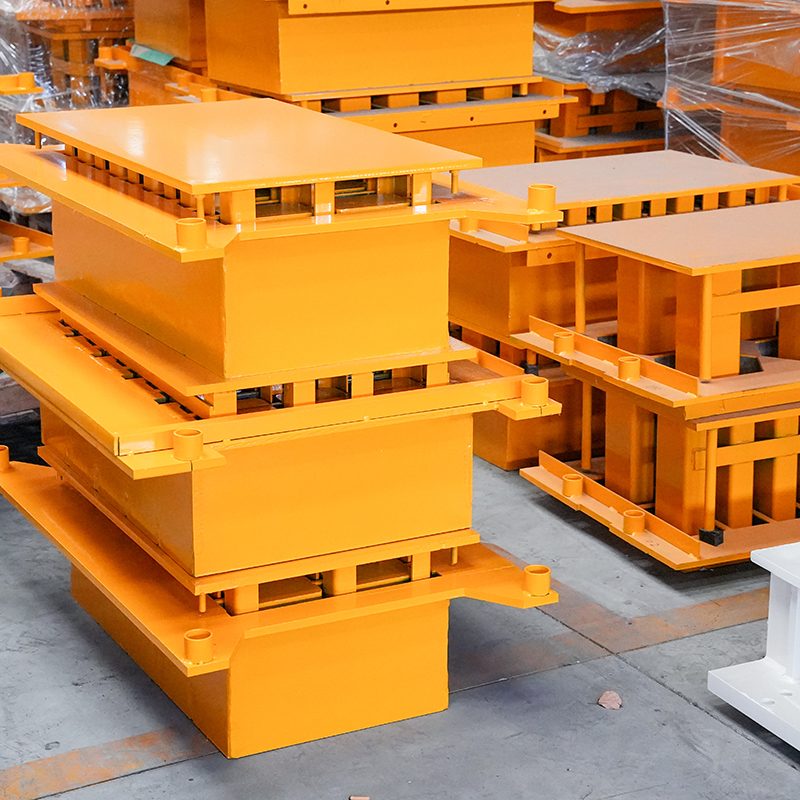

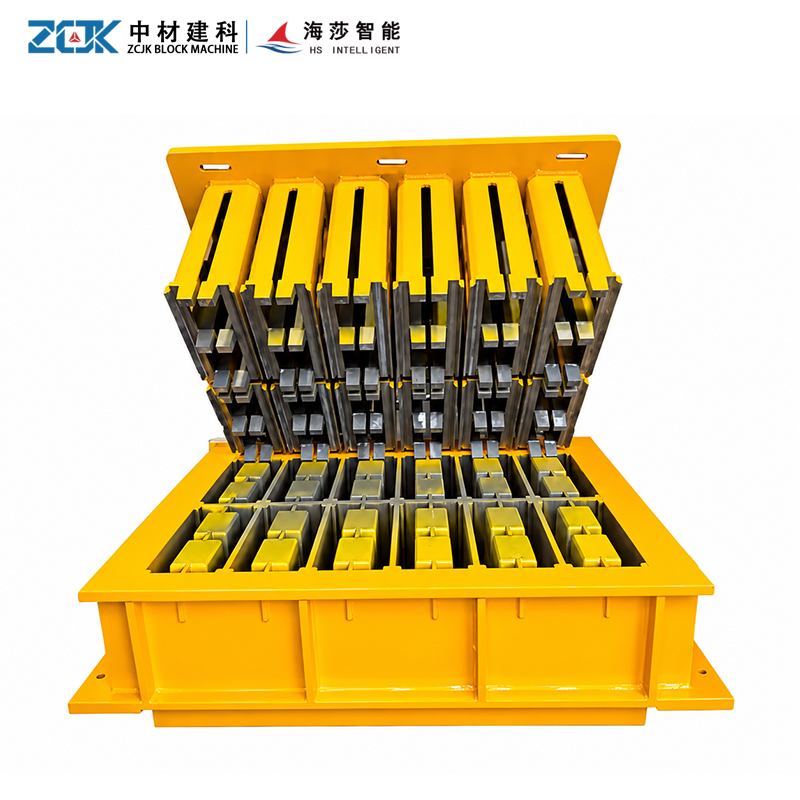

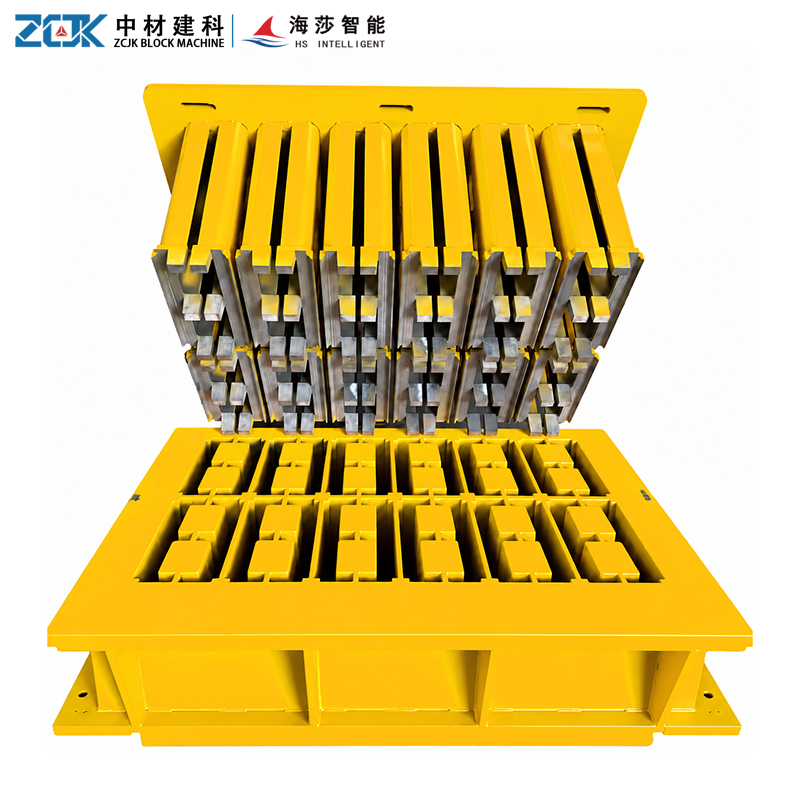

A suitable hollow block mold assembly may include a mold frame, mold cores, pressure plate components, and the relevant mounting structures. Each component needs to match the intended block profile and the requirements of the compatible block making machine.
For manufacturers producing different block specifications, a well-planned mold design makes it easier to define the required cavity arrangement and component configuration before production.
Wear resistance is a key consideration in HS hollow block mold design. Through appropriate material selection, heat treatment, and careful control of component fit, HS molds are designed to withstand repeated block-forming operations and support consistent performance over extended production cycles.
With a stated service life of 160,000–180,000 molding cycles, HS hollow block molds offer a durable solution for block manufacturers seeking long-term production reliability. Extended mold service life can help reduce the frequency of mold replacement, minimize production interruptions associated with mold changes, and make maintenance planning more predictable. For manufacturers focused on production efficiency, these benefits can also contribute to better control of long-term operating costs.
HS offers mold solutions that can be configured for compatibility with a Quick Mold Change (QMC) system, depending on the block making machine and mold design. By coordinating the mold structure and changeover interfaces, the system can help reduce mold replacement time and make it easier to switch between different block specifications. Machine compatibility and connection dimensions should be confirmed before ordering.
Different production needs may call for different mold construction methods. HS provides flexible design options according to the required block profile, machine configuration, and component replacement requirements.

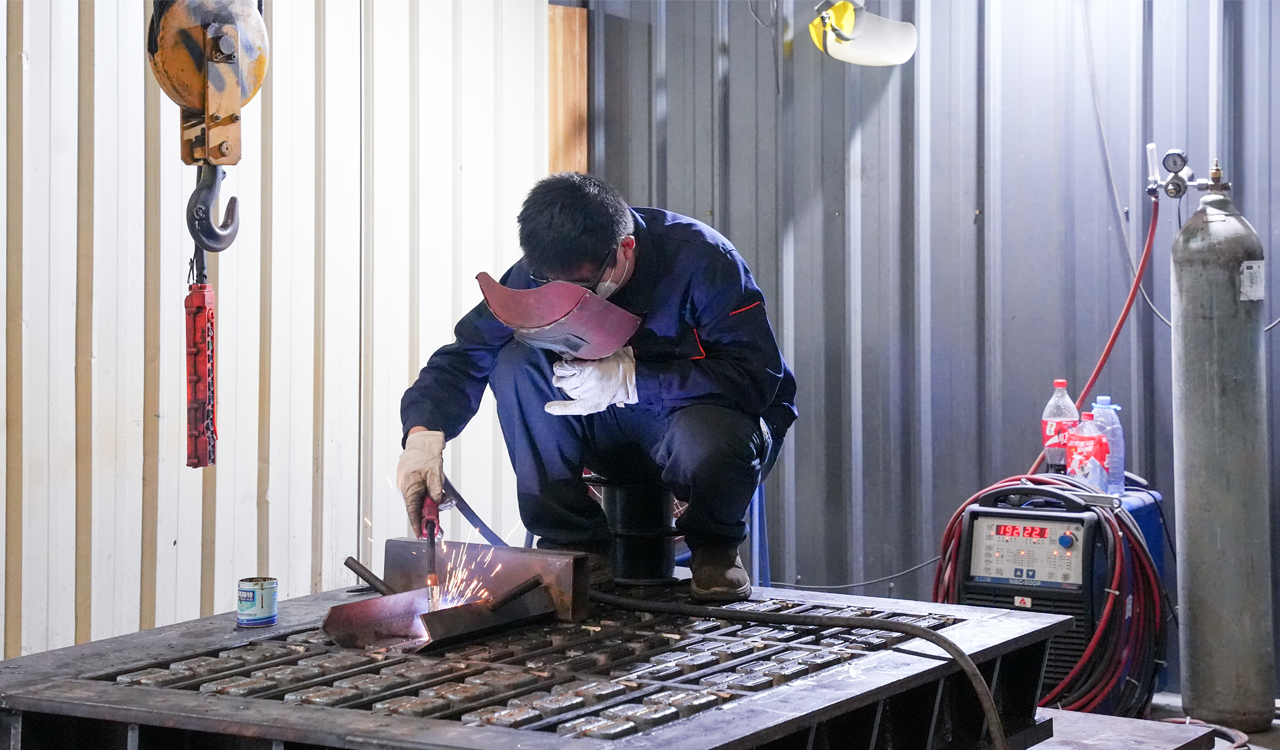

Welded construction joins the relevant mold components through welding. The structural arrangement is determined by the mold design and the intended application.
Modular threaded-locking structures use threaded connections to secure designated components. Depending on the design, selected components can be removed or replaced when required.
Where appropriate, welded structures and modular threaded connections can be combined to suit the required mold configuration.
Rather than applying one design to every project, HS reviews the relevant requirements before confirming the construction method. This allows the mold structure to be planned around the intended application and maintenance needs.

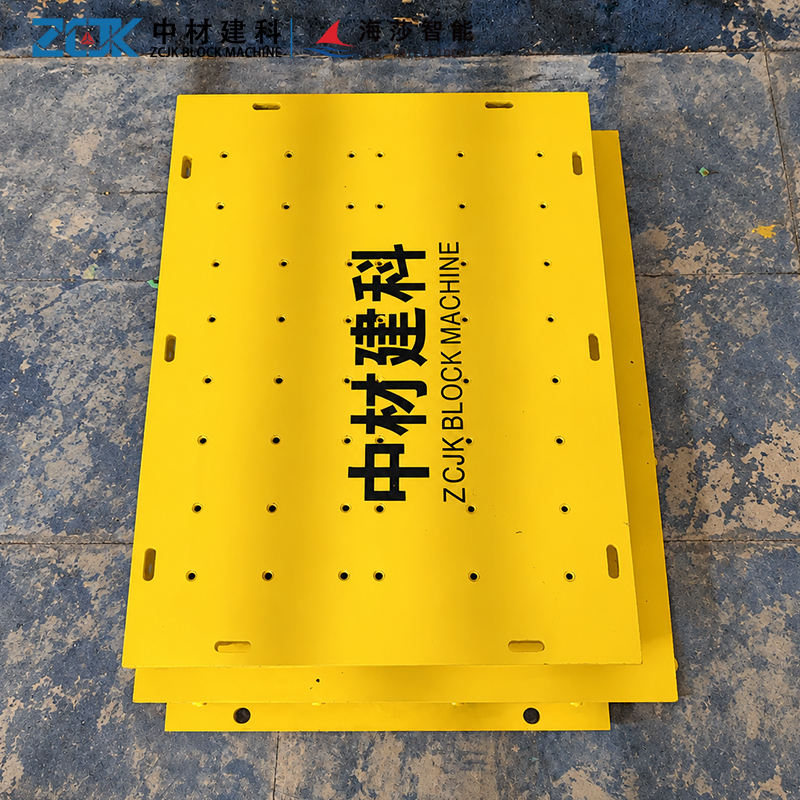

Different block designs may require different mold cores, cavity arrangements, or pressure plate configurations. HS offers flexible mold designs in which the mold cores and pressure plates can be replaced according to the selected structure and customer requirements.
This design option provides greater flexibility when configuring a mold for a specific block profile or planning the replacement of designated components.
During customization, the mold core arrangement, pressure plate configuration, connection dimensions, and machine interface are reviewed together. Confirming these details in advance helps establish a clear design basis before manufacturing.
The manufacturing of hollow block molds involves material selection, machining, welding, heat treatment, assembly, and inspection. Each process is carried out according to the mold design and component requirements.
Materials are selected according to the function of each component, the mold structure, and the intended production conditions.

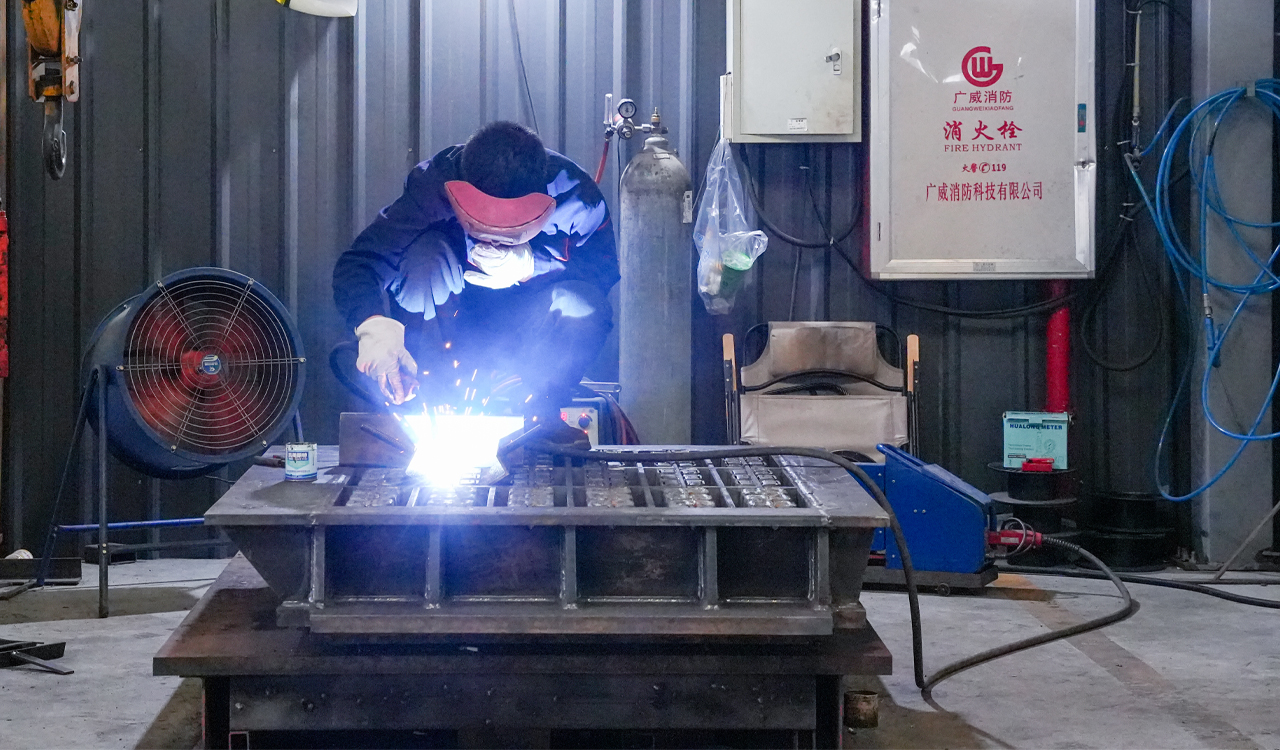

Machining establishes the required component dimensions and connection interfaces. For welded molds, welding joins the designated components to form the required structure. Proper joint preparation, component positioning, and welding execution are important to structural integrity and dimensional consistency.
Heat treatment is an important process affecting mold wear resistance. The process is selected according to the material and component requirements.
The finished components are assembled according to the approved design. Relevant checks include key dimensions, mold alignment, mounting interfaces, and the fit of replaceable components, as applicable.
Standard mold configurations may not suit every block design or production line. HS provides customized hollow block molds based on the customer's product specifications, machine model, and structural requirements.
Customization can cover:
Different block dimensions and cavity arrangements
Mold core and pressure plate configurations
Welded, modular threaded-locking, or combined structures
Mold mounting dimensions and machine interfaces
Replacement molds based on existing products, samples, or technical drawings
To start a customization project, provide your finished block dimensions, a product drawing or sample photographs, the block making machine model, and the relevant mounting dimensions.
If you do not have a complete technical drawing, available photographs and measurements can serve as an initial reference for technical review. The final mold design should be confirmed before manufacturing begins.

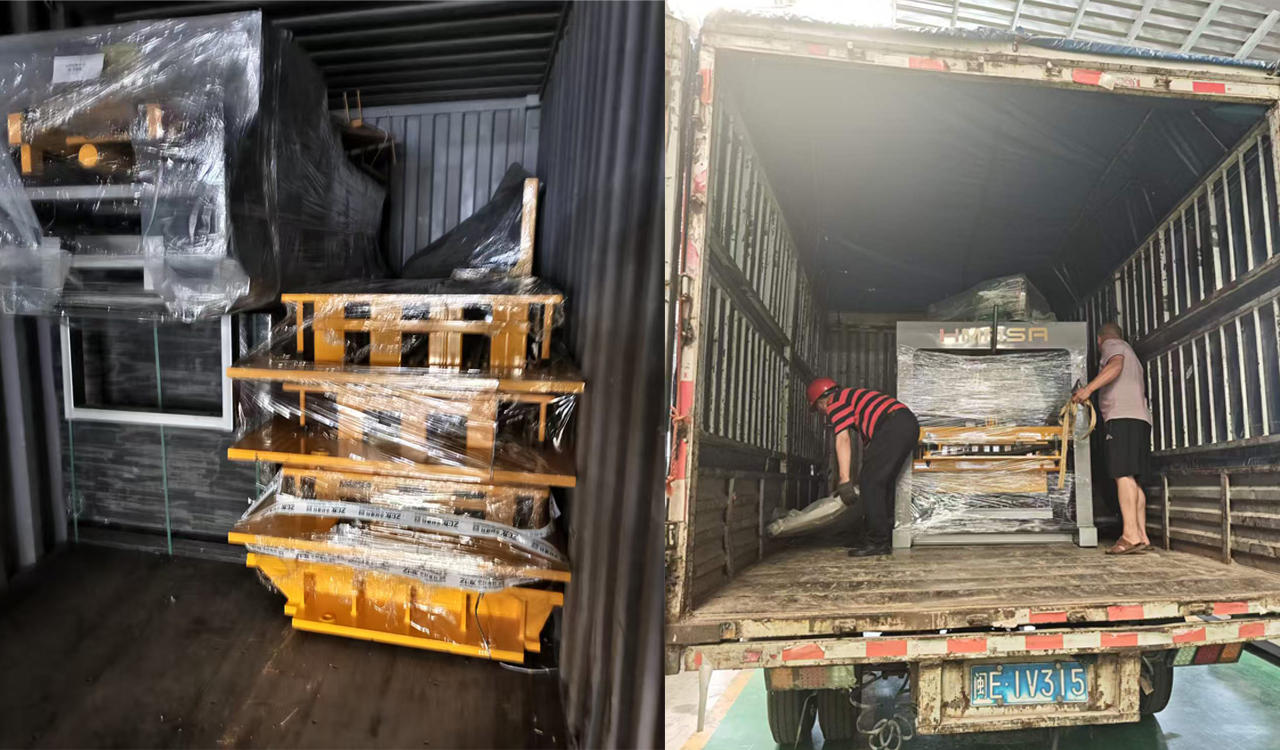

HS arranges mold packaging and shipping according to the product dimensions, order requirements, and destination. Mold components and related accessories can be prepared together to facilitate transportation and on-site installation. Shipping methods and delivery schedules are confirmed with customers before dispatch.
